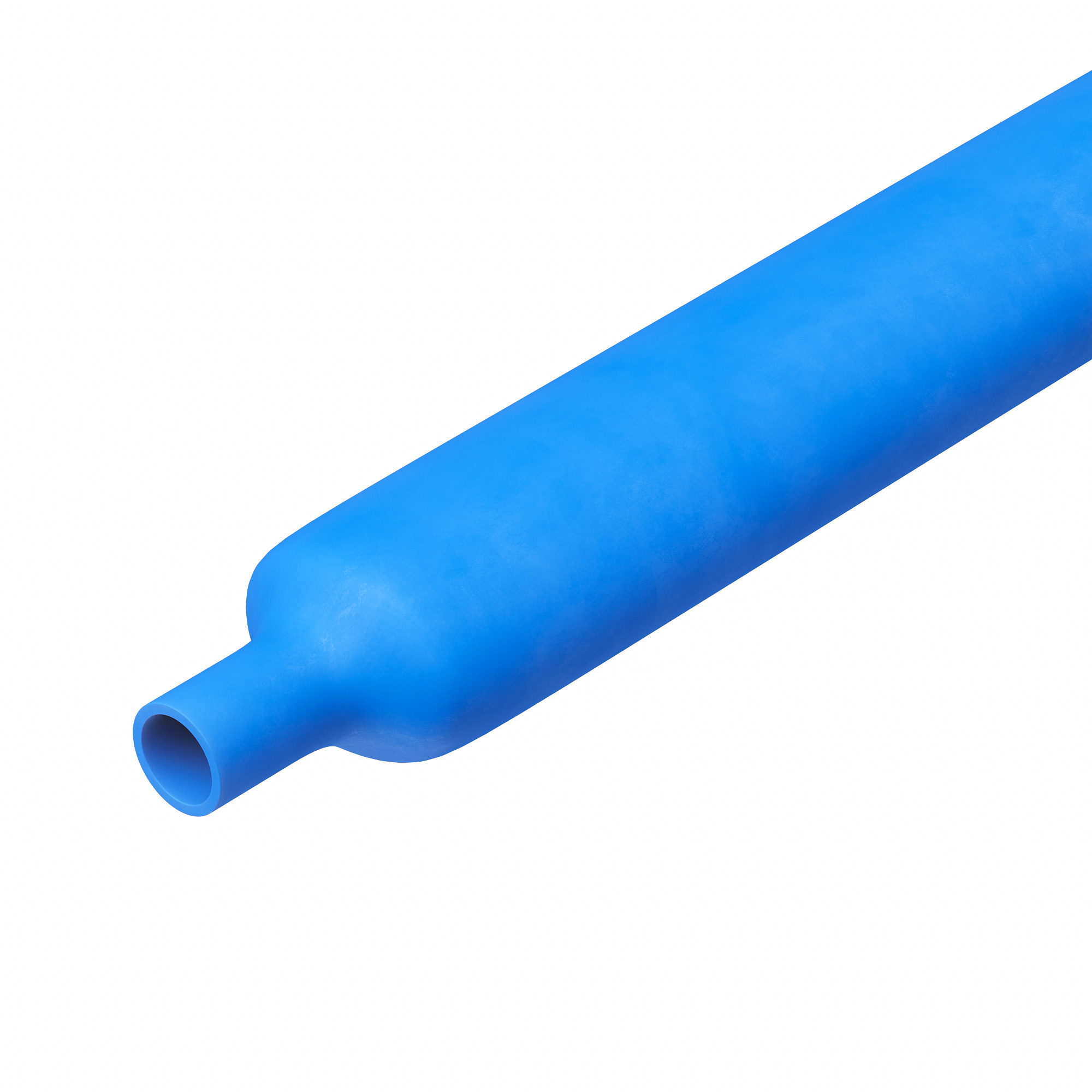

Heat shrink flame retardant tube (roll) 9,5/4,7 mm blue
Code: TN2RL201R95FRBL
Heat shrink flame retardant tube (roll) 9,5/4,7 mm blue
Code: TN2RL201R95FRBL
| Colour | Blue |
| Model | Thin-walled |
| Halogen free | No |
| Wall thickness after shrinking, mm | 0.64 |
| Type | Heat-shrink |
| Length, m | 100 |
| Material | Polyolefin (PO-X) |
| Operating temperature, °C | -55...135 |
| Inner diameter before heat-shrink, mm | 9.5 |
| Inner diameter after heat-shrink, mm | 4.7 |
| Printable | No |
| With inner glue | No |
| Shrink rate | 2:1 |
| UL approval | Yes |
Drawings
| Seria | Name | Eplan |
|---|---|---|
|
Quadro - Heat shrinkable tubes
|
Certificates
| Name | Document |
|---|---|
