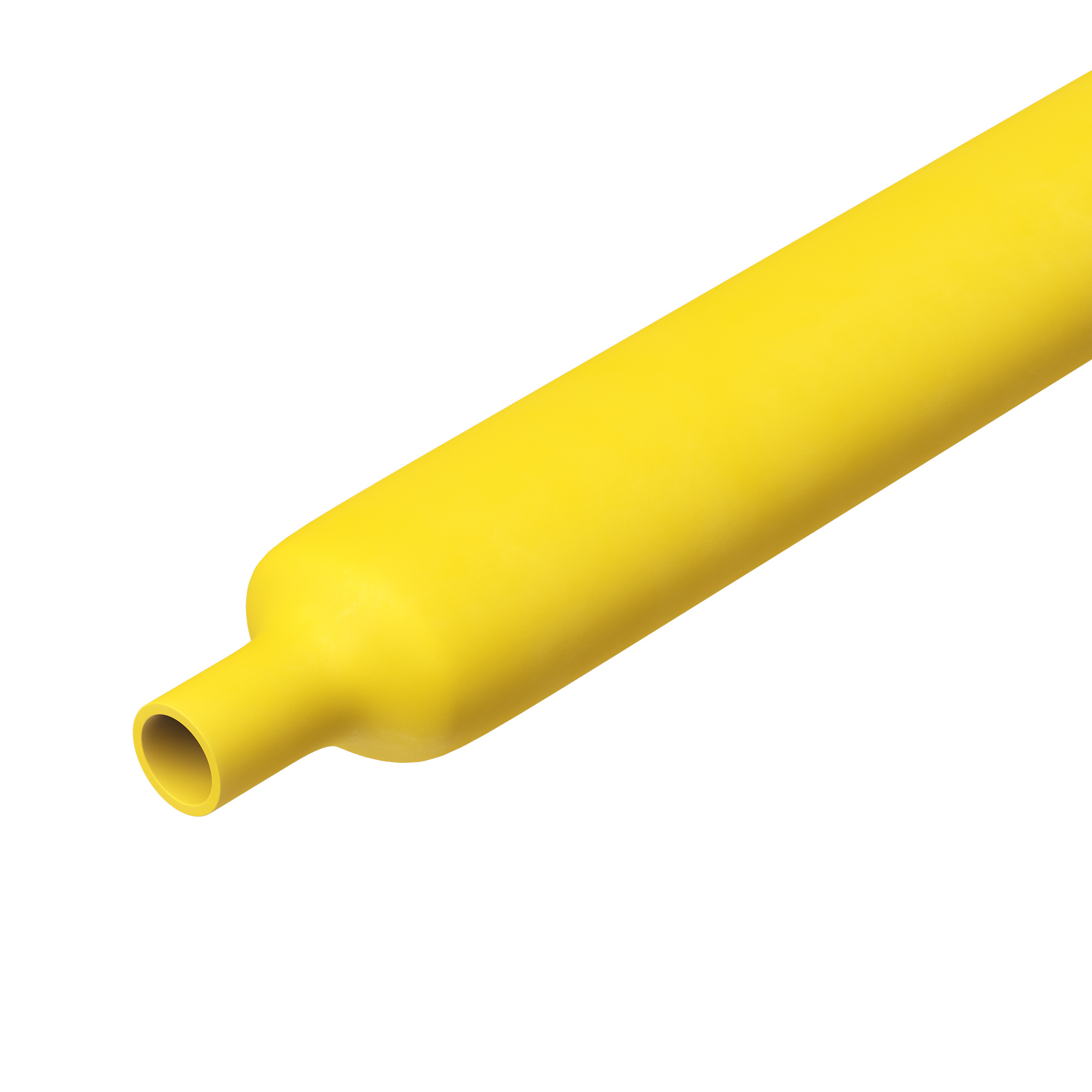

Heat shrink flame retardant tube (roll) 19,1/9,5 mm yellow
Code: TN2RL201R191FRY
Heat shrink flame retardant tube (roll) 19,1/9,5 mm yellow
Code: TN2RL201R191FRY
| Colour | Yellow |
| Model | Thin-walled |
| Halogen free | No |
| Wall thickness after shrinking, mm | 0.76 |
| Type | Heat-shrink |
| Length, m | 100 |
| Material | Polyolefin (PO-X) |
| Operating temperature, °C | -55...135 |
| Inner diameter before heat-shrink, mm | 19.1 |
| Inner diameter after heat-shrink, mm | 9.5 |
| Printable | No |
| With inner glue | No |
| Shrink rate | 2:1 |
| UL approval | Yes |
