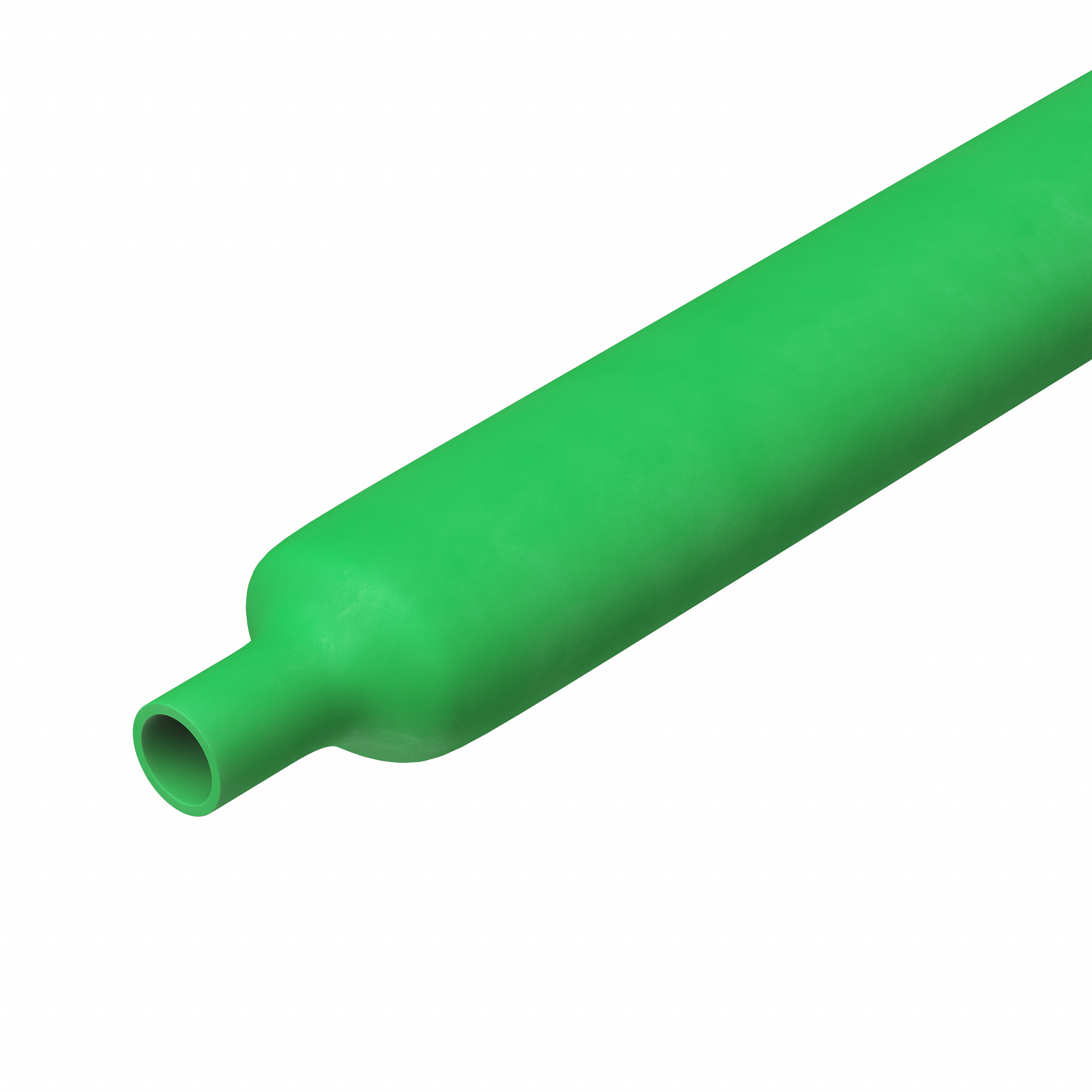

Heat shrink flame retardant tube 9,5/4,7 mm green
Code: TN2PC20195FRGN
Heat shrink flame retardant tube 9,5/4,7 mm green
Code: TN2PC20195FRGN
| Colour | Green |
| Model | Thin-walled |
| Halogen free | No |
| Wall thickness after shrinking, mm | 0.64 |
| Type | Heat-shrink |
| Length, m | 1 |
| Material | Polyolefin (PO-X) |
| Operating temperature, °C | -55...135 |
| Inner diameter before heat-shrink, mm | 9.5 |
| Inner diameter after heat-shrink, mm | 4.7 |
| Printable | No |
| With inner glue | No |
| Shrink rate | 2:1 |
| UL approval | Yes |
