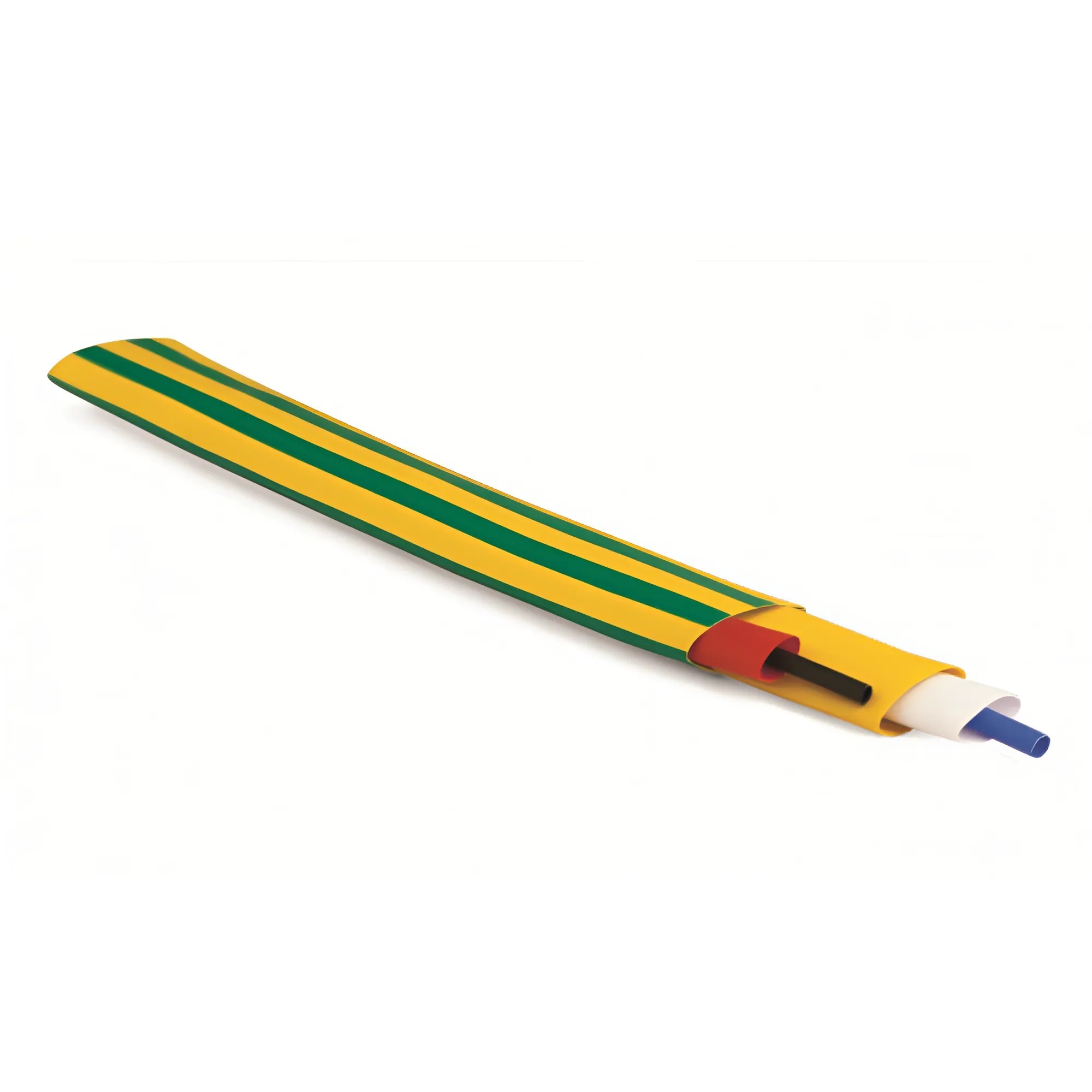

Heat shrink flame retardant tube 31,8/15,9mm yellow

Code: 2NF201318Y
Heat shrink flame retardant tube 31,8/15,9mm yellow
Heat shrink flame retardant tube 31,8/15,9mm yellow
Color gray
Material PVC
Temperature of mounting, °C > 90
Temperature of usage, °C -55... +135
Temperature of operation, °C 135
Diameter of surrounding (max), mm 31.8
Diameter of surrounding (min), mm 15.9
Colour Yellow
Model Thin-walled
Halogen free No
Wall thickness after shrinking, mm 0.95
Length, m 1
Material Polyolefin (PEX)
Operation temperature, °C -55…135
Inner diameter before heat-shrink, mm 31.8
Inner diameter after heat-shrink, mm 15.9
Printable Yes
With inner glue No
Nominal diameter inch Other
Shrink rate 2:01
UL approval Yes
Type Heat-shrink
