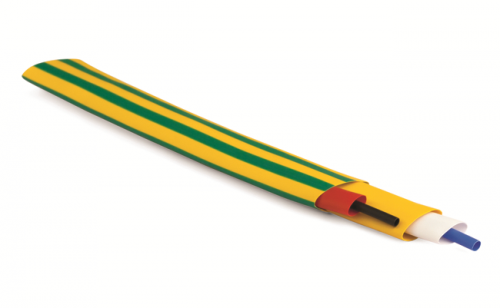

Heat shrink flame retardant tube 1,6/0,8mm yellow-green

Code: 2NF20116GY
Color gray
Material PVC
Temperature of mounting, °C > 90
Temperature of usage, °C -55... +135
Temperature of operation, °C 135
Diameter of surrounding (max), mm 1.6
Diameter of surrounding (min), mm 0.8
Colour Green-yellow
Model Thin-walled
Halogen free No
Wall thickness after shrinking, mm 0.43
Length, m 1
Material Polyolefin (PEX)
Operation temperature, °C -55…135
Inner diameter before heat-shrink, mm 1.6
Inner diameter after heat-shrink, mm 0.8
Printable Yes
With inner glue No
Nominal diameter inch Other
Shrink rate 2:01
UL approval Yes
Type Heat-shrink
Drawings
Seria Name Eplan
Quadro - Heat shrinkable tubes
