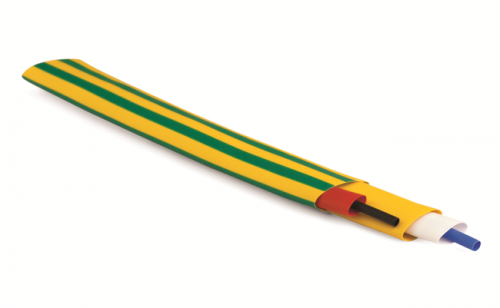

Heat shrink tube (roll) 38,1/19,1mm yellow-green

Code: 2NA201R381GY
Color gray
Material PVC
Temperature of mounting, °C > 90
Temperature of usage, °C -55... +105
Temperature of operation, °C 105
Diameter of surrounding (max), mm 38.1
Diameter of surrounding (min), mm 19.1
Colour Green-yellow
Model Thin-walled
Halogen free Yes
Wall thickness after shrinking, mm 1
Length, m 50
Material Polyolefin (PEX)
Operation temperature, °C -30…105
Inner diameter before heat-shrink, mm 38.1
Inner diameter after heat-shrink, mm 19.1
Printable Yes
With inner glue No
Nominal diameter inch Other
Shrink rate 2:01
UL approval Yes
Type Heat-shrink
Drawings
Seria Name Eplan
Quadro - Heat shrinkable tubes
