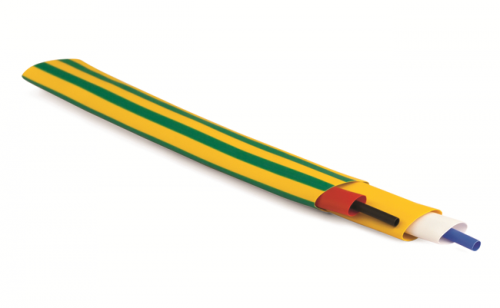

Heat shrink tube (roll) 19,1/9,5mm yellow-green

Code: 2NA201R191GY
Color gray
Material PVC
Temperature of mounting, °C > 90
Temperature of usage, °C -55... +105
Temperature of operation, °C 105
Diameter of surrounding (max), mm 19.1
Diameter of surrounding (min), mm 9.5
Colour Green-yellow
Model Thin-walled
Halogen free Yes
Wall thickness after shrinking, mm 0.77
Length, m 50
Material Polyolefin (PEX)
Operation temperature, °C -30…105
Inner diameter before heat-shrink, mm 19.1
Inner diameter after heat-shrink, mm 9.5
Printable Yes
With inner glue No
Nominal diameter inch Other
Shrink rate 2:01
UL approval Yes
Type Heat-shrink
Seria Name Eplan
Quadro - Heat shrinkable tubes
