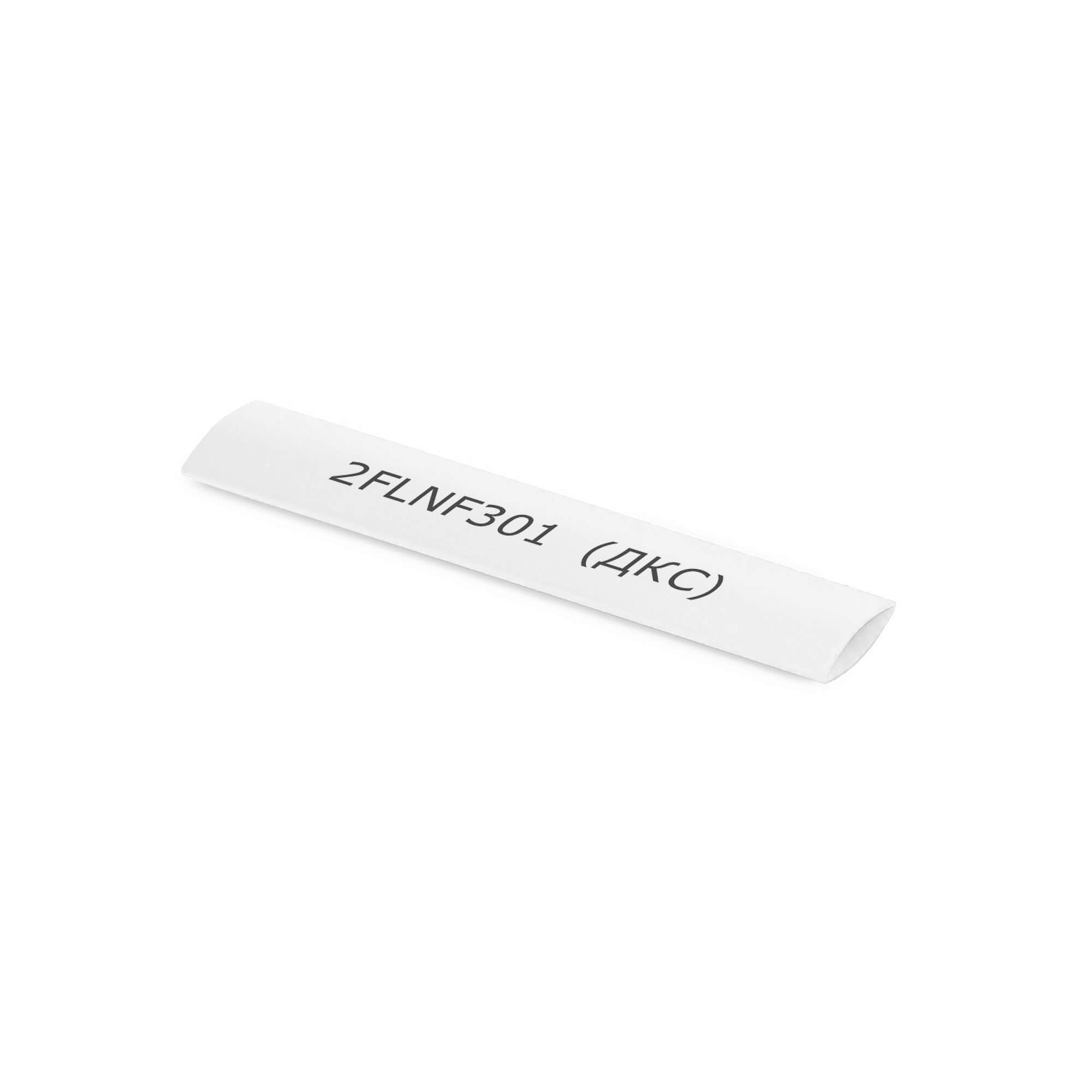

Heat shrink flame retardant tube for thermal transfer printing 12,7/4,0mm white 3:1

Code: 2FLNF301P127
Heat shrink flame retardant tube for thermal transfer printing 12,7/4,0mm white 3:1
Heat shrink flame retardant tube for thermal transfer printing 12,7/4,0mm white 3:1
Color gray
Material PVC
Temperature of mounting, °C > 90
Temperature of usage, °C -55... +135
Temperature of operation, °C 135
Diameter of surrounding (max), mm 12.7
Diameter of surrounding (min), mm 4
Colour White
Model Thin-walled
Halogen free No
Wall thickness after shrinking, mm 0.64
Length, m 100
Material Polyolefin (PEX)
Operation temperature, °C -55…135
Inner diameter before heat-shrink, mm 12,7
Inner diameter after heat-shrink, mm 4,0
Printable Yes
With inner glue No
Nominal diameter inch Other
Shrink rate 3:01
UL approval Yes
Type Heat-shrink
Drawings
Seria Name Eplan
Quadro - Heat shrinkable tubes
The System "Quadro"
RAR
27.23 MB
Certificates
Name Document
Quadro_ Exemption Letter for shrink tubes_DIN-rail, braid, frames and frames for EUI, drawing, accessories_1
PDF
1.30 MB
