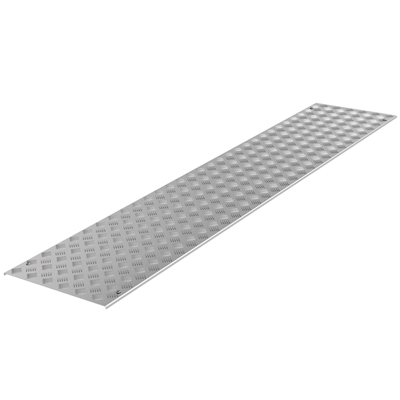

Corrugated cover with clamps 700, L 3 m, aluminum

Code: UKS317

Corrugated cover with clamps 700, L 3 m, aluminum

Code: UKS317
Colour Light grey
Surface protection Anodised
Material thickness, mm 3
Material quality Aluminium
Length, mm 3000
Material Aluminium
Type of fastening Cover clamp
Cover width, mm 700
Suitable for wire mesh tray Yes
Suitable for cable ladder Yes
Suitable for cable tray Yes
Stainless steel, pickled Yes
Suitable for circuit integrity Yes
Product type Cover for straight elements
Width 700 mm
Material Aluminium

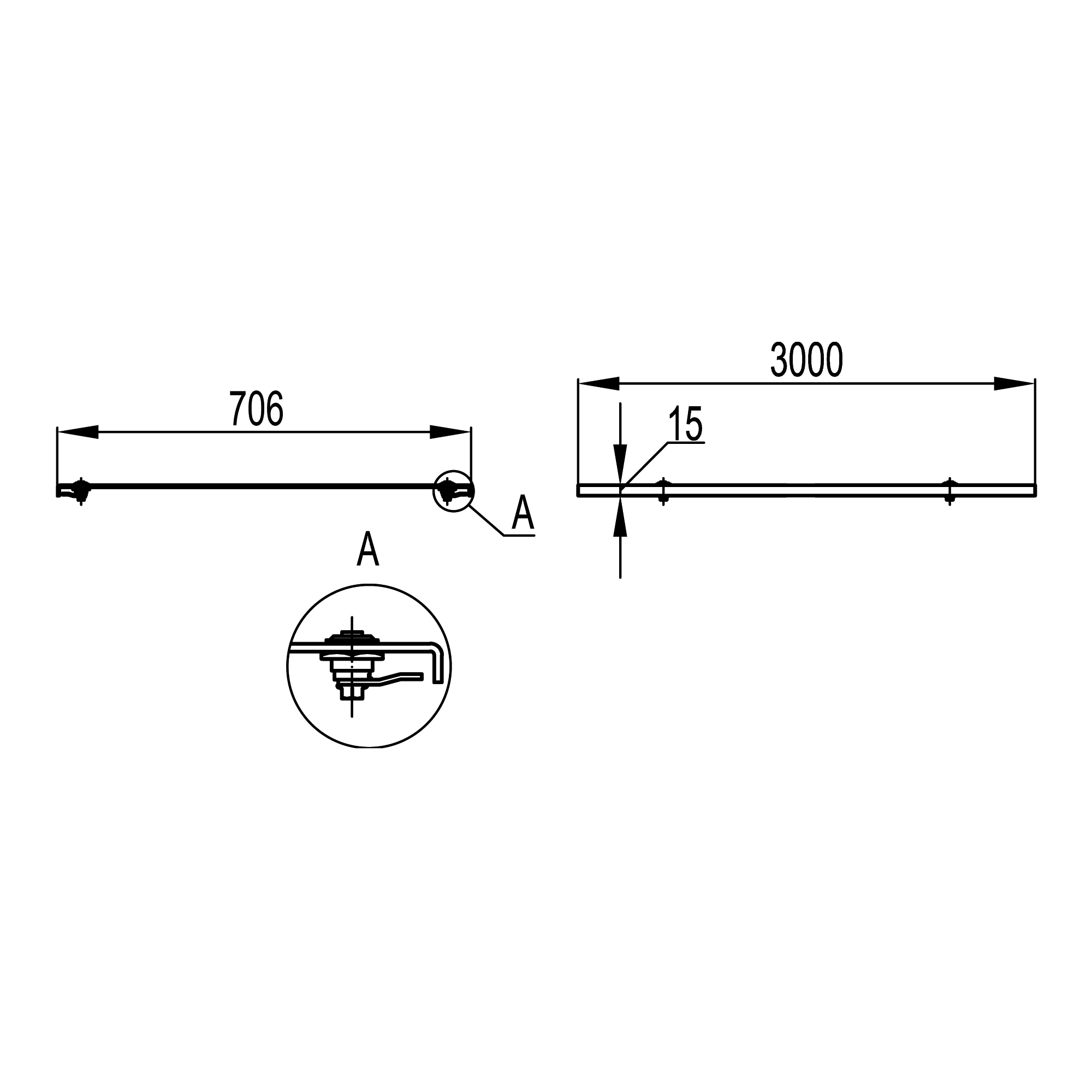

Drawings
Seria Name DWG (dynamic.) Intergraph Autodesk Revit STEP
