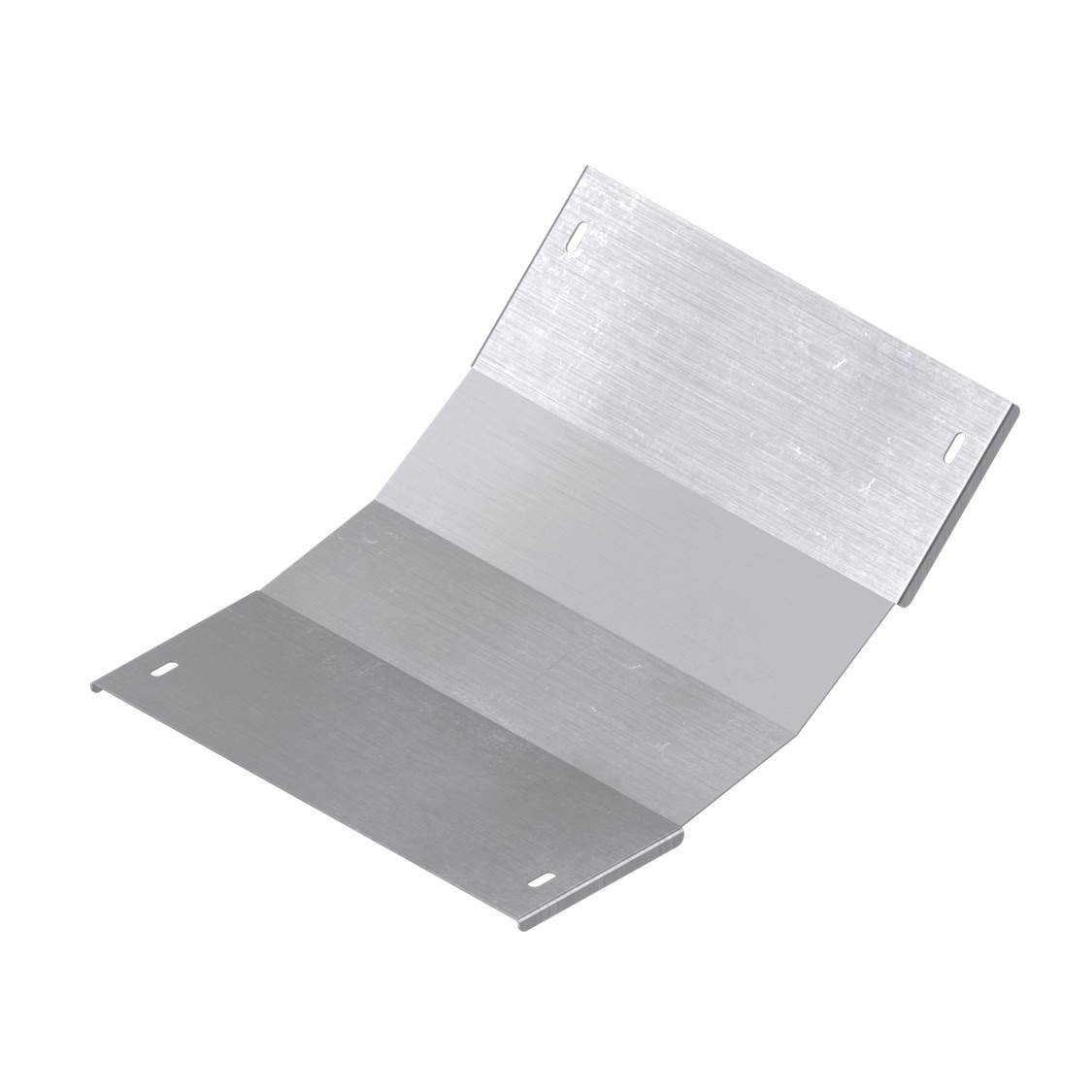

Cover for vertical elbow (inside) 45 degrees 200x400, R600, zinc lamellar coating
Code: UKIC624ZL
Cover for vertical elbow (inside) 45 degrees 200x400, R600, zinc lamellar coating
Code: UKIC624ZL
Colour | Light grey |
Width, mm | 400 |
Surface protection | Zinc lamellar coating |
Material | Steel |
Material quality | Steel |
Type of fastening | Cover clamp |
Product type | Covers for system accessories |
Type of accessories | Cover for 45º vertical inner bend |
Height | 200 mm |
Thickness | 1.0 mm |
Material | Zinc-lamellated steel |
Width | 400 mm |
19 мм | 600 mm |
Drawings
Seria | Name | DWG (dynamic.) | Intergraph | Autodesk Revit | STEP |
---|---|---|---|---|---|
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
Heavy metal trays - " U5 Combitech"
|
|
|
|
