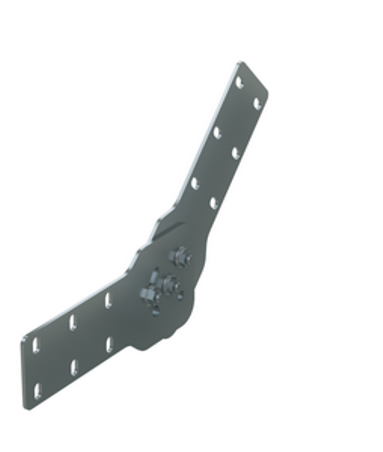

Vertical swivel connector H 100 mm HDZL
Code: UVH010HDZL
Vertical swivel connector H 100 mm HDZL
Code: UVH010HDZL
| Colour | Light grey |
| Model | Included connector |
| Surface protection | Zinc lamellar coating |
| Type of rung | Perforated profile |
| Hinging | Yes |
| Material quality | Steel |
| Material | Steel |
| Cable ladder width, mm | 2 |
| Cable ladder height, mm | 100 |
| Stainless steel, pickled | No |
| Wide span model | Yes |
| Type of side joist | Profile (open) |
| Suitable for circuit integrity | No |
| Product type | Mounting accessories |
| Type of accessories | Mounting accessories |
| Height | 100 mm |
| Thickness | 2.0 mm |
| Material | Zinc-lamellated steel |

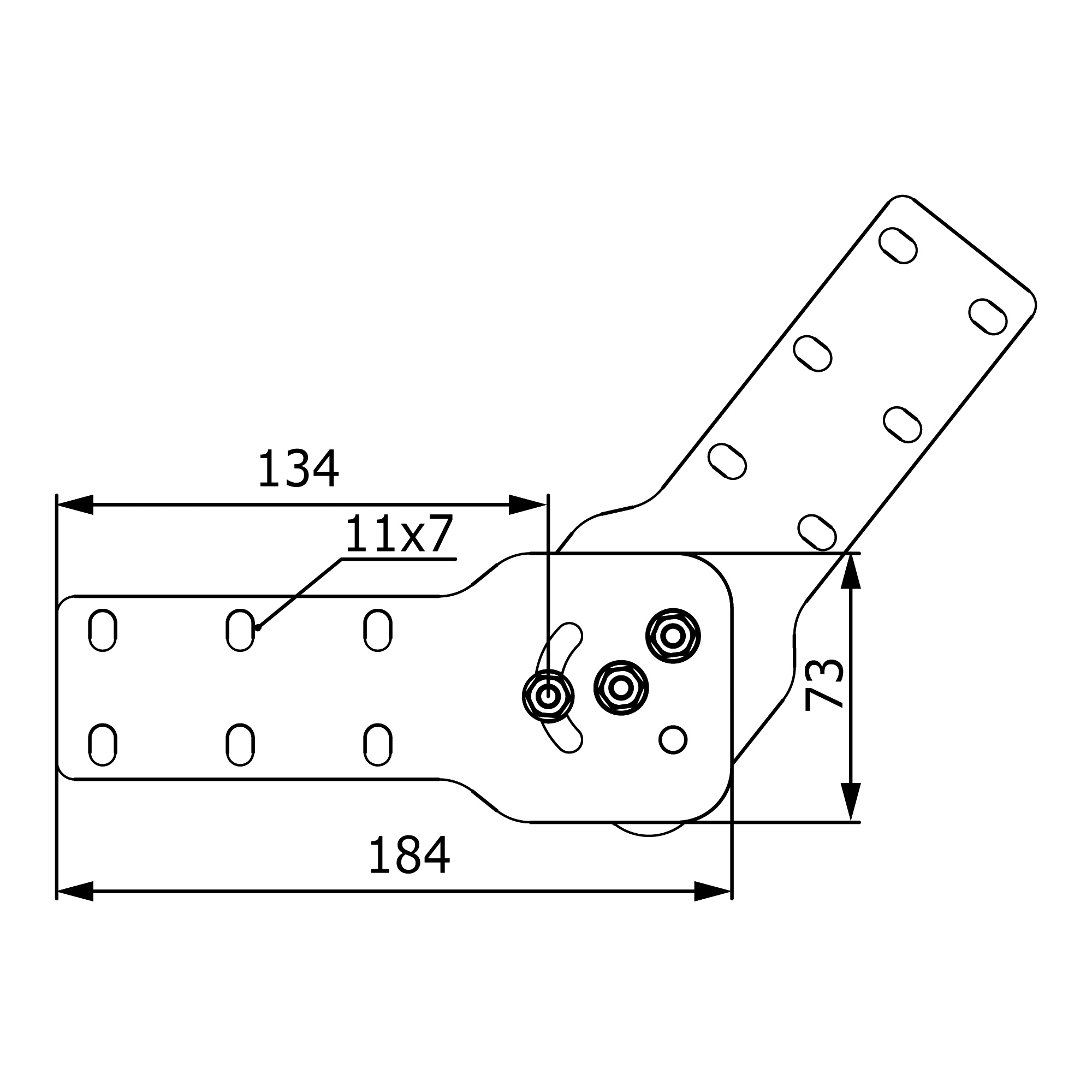

Drawings
| Seria | Name | DWG (dynamic.) | Intergraph | Autodesk Revit | STEP |
|---|---|---|---|---|---|
|
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
|
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
|
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
|
Heavy metal trays - " U5 Combitech"
|
|
|
|
Certificates
| Name | Document |
|---|---|
