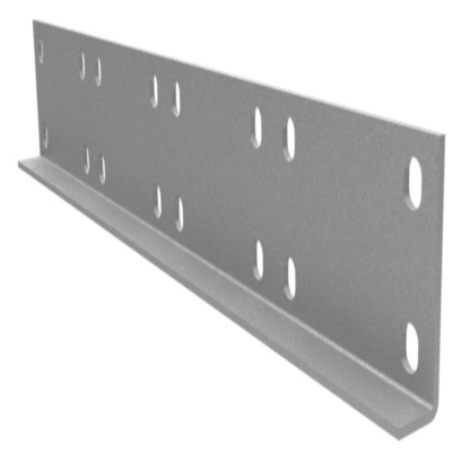

Horizontal connector H 80 mm L 400 mm HDZL
Code: UGH480HDZL
Horizontal connector H 80 mm L 400 mm HDZL
Code: UGH480HDZL
Surface protection | Zinc lamellar coating |
Material quality | Steel |
Length, mm | 400 |
Material | Steel |
Suitable for wire mesh tray | Yes |
Suitable for cable ladder | Yes |
Suitable for cable tray | Yes |
Stainless steel, pickled | Yes |
Suitable for cable management system height, mm | 80 |
Hinged joint horizontal | Yes |
Hinged joint vertical | Yes |
Suitable for circuit integrity | Yes |
Suitable for cable management system width, mm | 50...600 |
Colour | Light grey |
Model | Longitudinal joint |
Type of connection | Screw connector |
Product type | Mounting accessories |
Type of accessories | Mounting accessories |
Height | 80 mm |
Length | 400 mm |
Thickness | 2.5 mm |
Material | Zinc-lamellated steel |

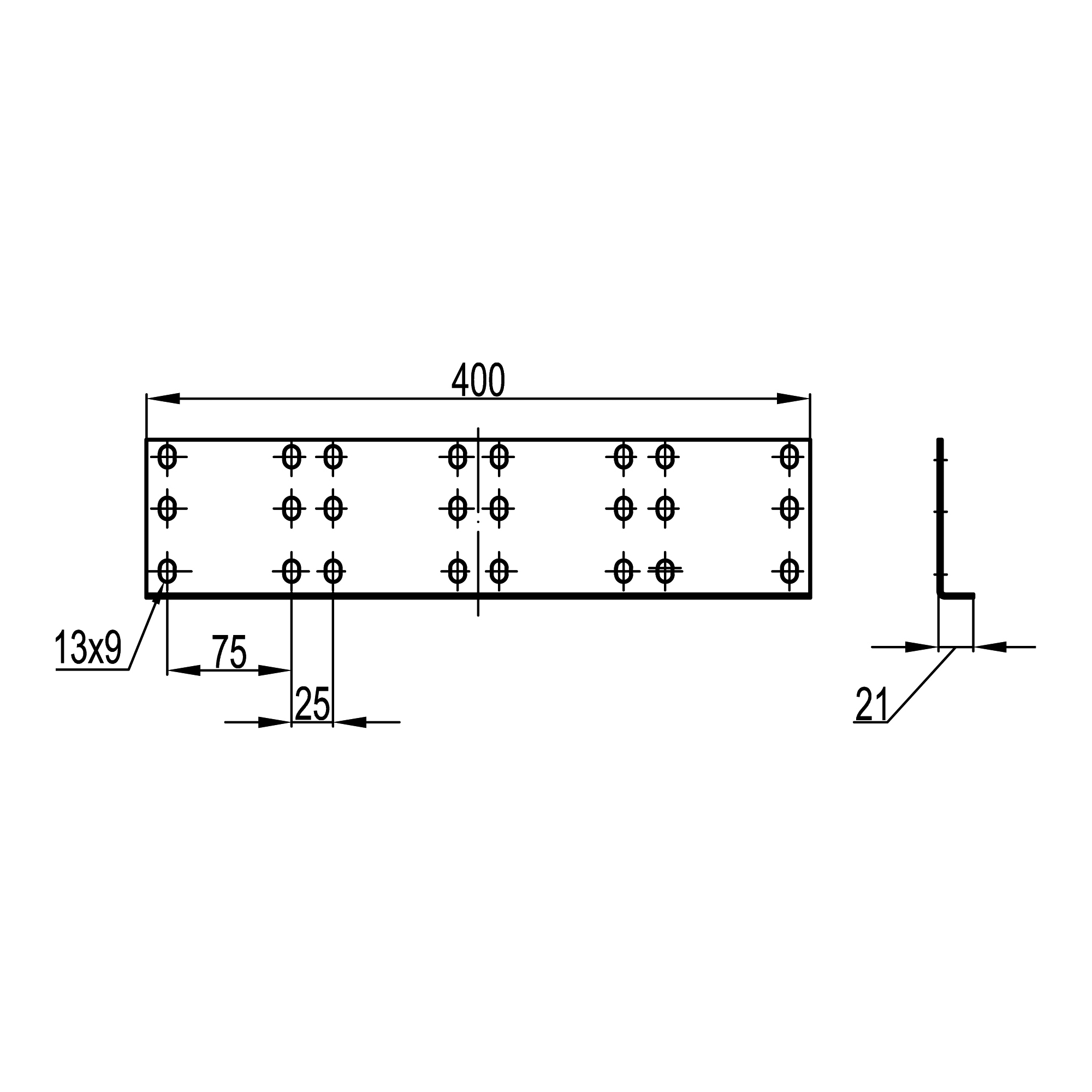

Drawings
Seria | Name | DWG (dynamic.) | Intergraph | Autodesk Revit | STEP |
---|---|---|---|---|---|
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
Heavy metal trays - " U5 Combitech"
|
|
|
|
Certificates
Name | Document |
---|---|
