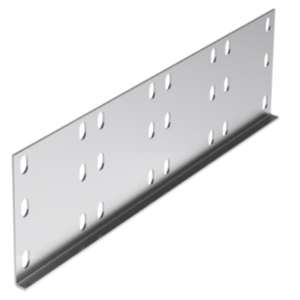

Horizontal connector H 100 mm L 400 mm HDZL

Code: UGH410HDZL

Horizontal connector H 100 mm L 400 mm HDZL

Code: UGH410HDZL
Surface protection Zinc lamellar coating
Material quality Steel
Length, mm 400
Material Steel
Suitable for wire mesh tray Yes
Suitable for cable ladder Yes
Suitable for cable tray Yes
Stainless steel, pickled Yes
Suitable for cable management system height, mm 100
Hinged joint horizontal Yes
Hinged joint vertical Yes
Suitable for circuit integrity Yes
Suitable for cable management system width, mm 50...600
Colour Light grey
Model Longitudinal joint
Type of connection Screw connector
Product type Mounting accessories
Type of accessories Mounting accessories
Height 100 mm
Material Hot-dip galvanized

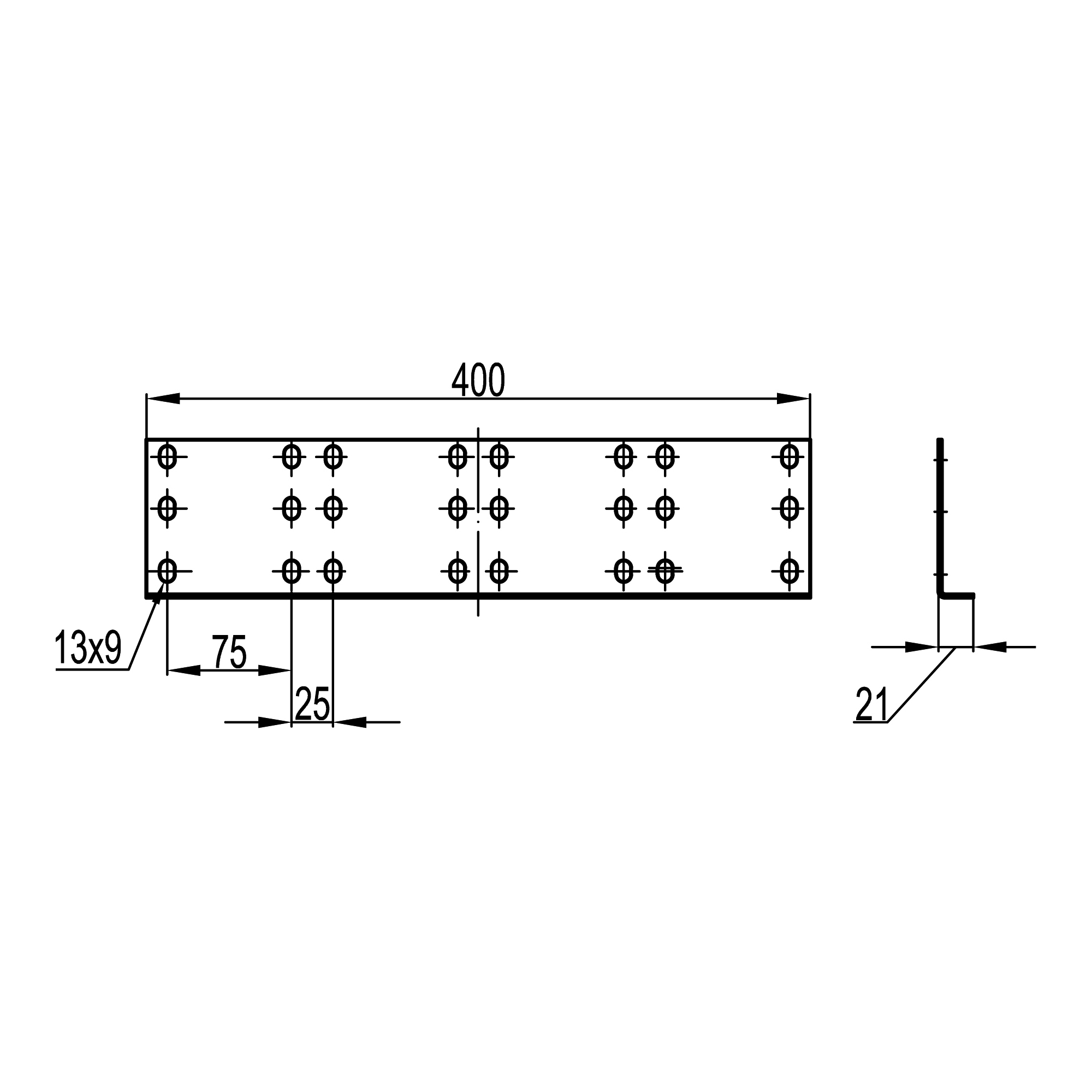

Drawings
Seria Name DWG (dynamic.) Intergraph Autodesk Revit STEP
