Attachment to structural beam
Code: UGB500HDZL
Attachment to structural beam
Code: UGB500HDZL
Colour | Light grey |
Surface protection | Zinc lamellar coating |
Material quality | Steel |
Material | Steel |
Stainless steel, pickled | No |
Product type | Mounting accessories |
Type of accessories | Mounting accessories |
Thickness | 2.5 mm |
Material | Zinc-lamellated steel |

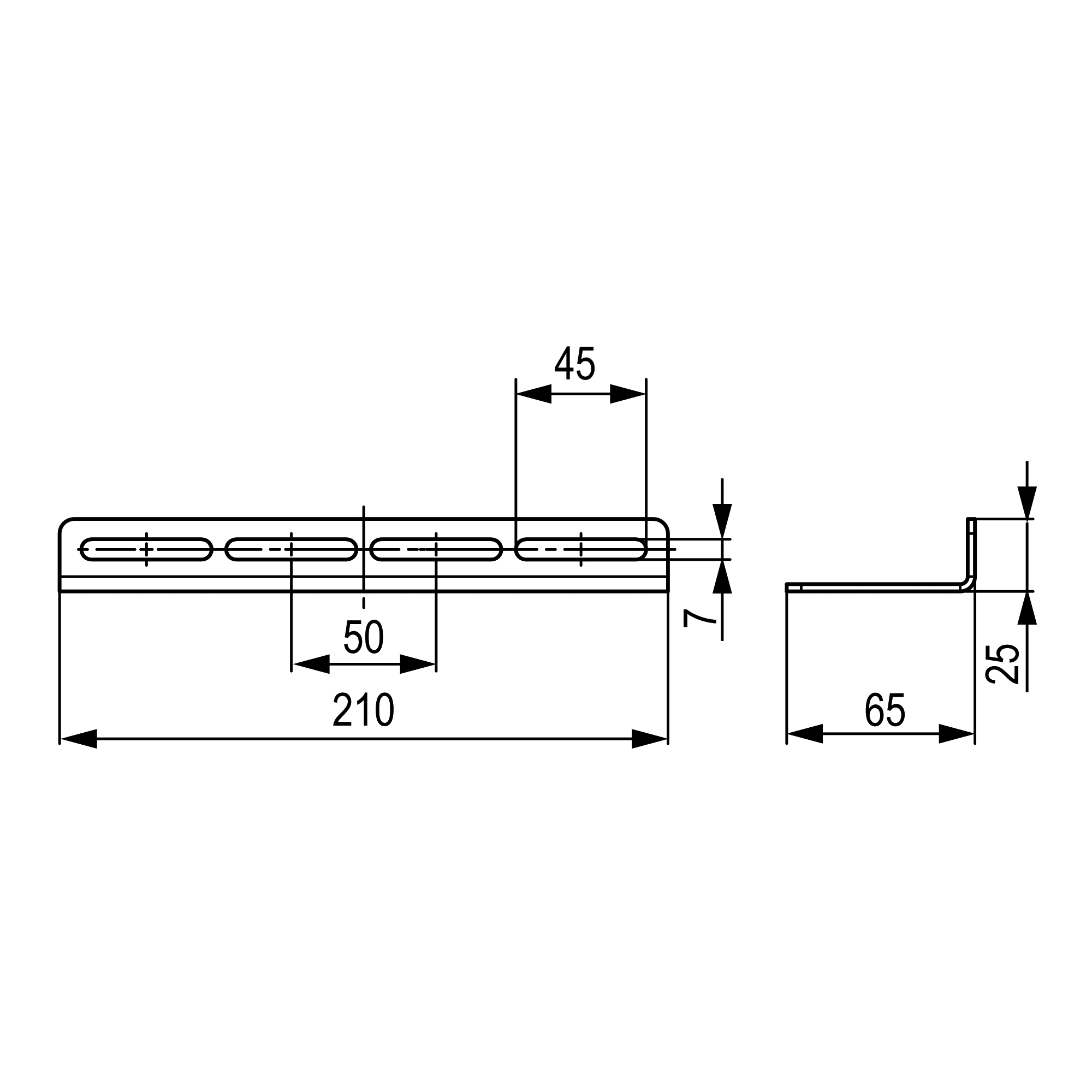

Drawings
Seria | Name | DWG (dynamic.) | Intergraph | Autodesk Revit | STEP |
---|---|---|---|---|---|
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
Heavy metal trays - " U5 Combitech"
|
|
|
|
