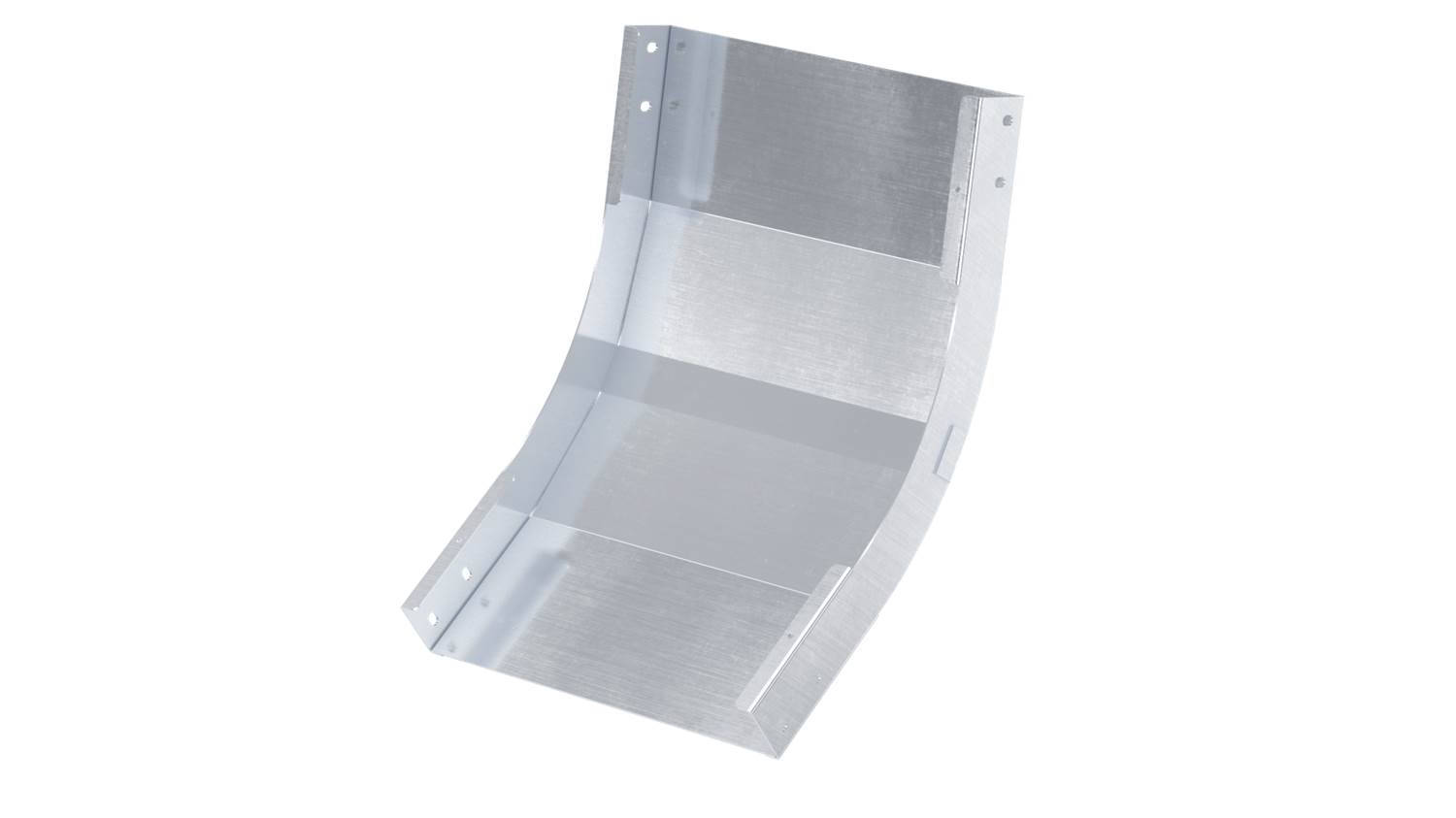

Vertical sheet elbow (inside) 45 R600 Height 80 mm Wide 1000mm, zinc lamellar coating

Code: USIC680ZL
Vertical sheet elbow (inside) 45 R600 Height 80 mm Wide 1000mm, zinc lamellar coating
Vertical sheet elbow (inside) 45 R600 Height 80 mm Wide 1000mm, zinc lamellar coating
Code: USIC680ZL
  • To ask a question
  • Characteristics

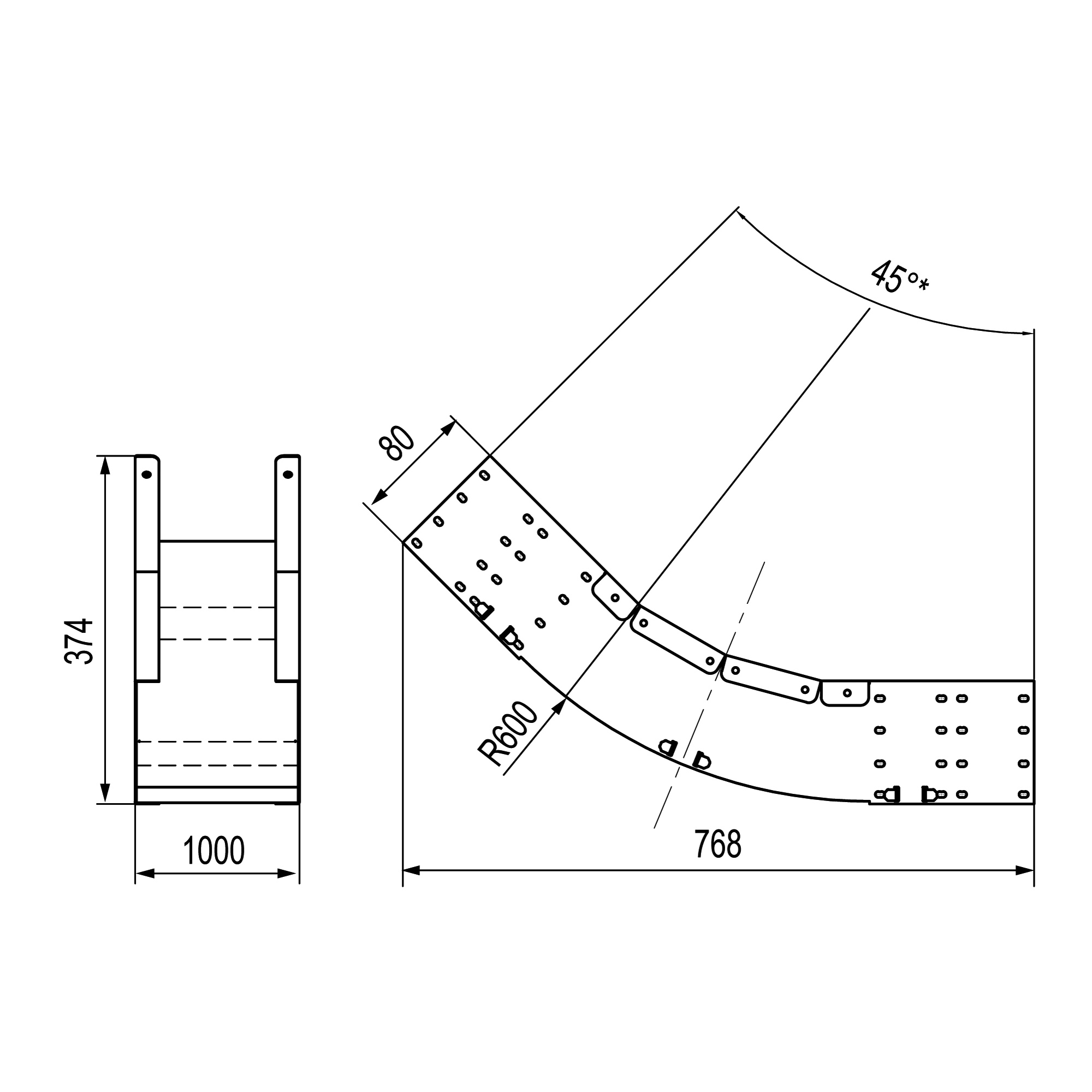

  • Drawings
  • Certificates
  • Promo
  • Viewed items
Model Without connector
Surface protection Zinc lamellar coating
Deflection (angle) 45°
Material Steel
Inner radius, mm 600
Cable tray width, mm 1000
Cable tray height, mm 80
Change of direction Vertically rising
Material quality Steel
Product type Accessories
Type of accessories 45º vertical inner bend
Height 80 mm
Side rail thickness 1.5 mm
Material Zinc-lamellated steel
Width 1000 mm
19 мм 600 mm
