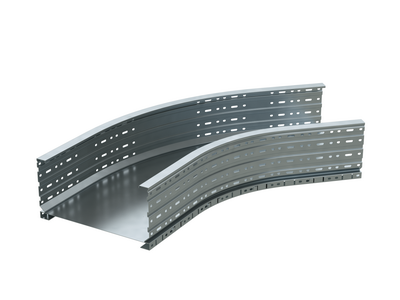

Horizontal sheet bend 45 degrees 200х600, R660 ZL

Code: USC626ZL

Horizontal sheet bend 45 degrees 200х600, R660 ZL

Code: USC626ZL
Colour Light grey
Model Without connector
Surface protection Zinc lamellar coating
Material thickness, mm 1.5
Deflection (angle) 45°
Side wall perforation Yes
Material quality Steel
Material Steel
Mounting perforation in bottom Yes
Inner radius, mm 660
Cable tray width, mm 600
Cable tray height, mm 200
Change of direction Horizontal
NATO-mounting holes Yes
Stainless steel, pickled Yes
Wide span model Yes
Suitable for circuit integrity Yes
Product type Accessories
Type of accessories 45º Horizontal bend
Height 200 mm
Width 600 mm
Material Zinc lamellar coating
Drawings
Seria Name DWG (dynamic.) Intergraph Autodesk Revit STEP
