| Colour | Light grey |
| Model | Without connector |
| Surface protection | Zinc lamellar coating |
| Material thickness, mm | 1.5 |
| Deflection (angle) | 45° |
| Side wall perforation | No |
| Material quality | Steel |
| Material | Steel |
| Mounting perforation in bottom | No |
| Inner radius, mm | 660 |
| Cable tray width, mm | 1000 |
| Cable tray height, mm | 200 |
| Change of direction | Horizontal |
| NATO-mounting holes | No |
| Stainless steel, pickled | No |
| Wide span model | Yes |
| Suitable for circuit integrity | No |
| Product type | Accessories |

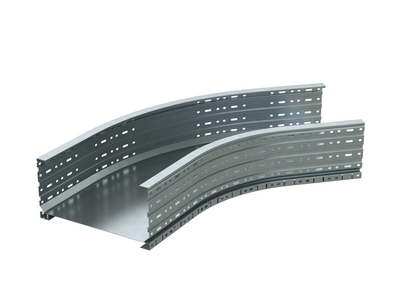

| Type of accessories | 45º Horizontal bend |
| Height | 200 mm |
| Width | 1000 mm |
| Material | Zinc lamellar coating |

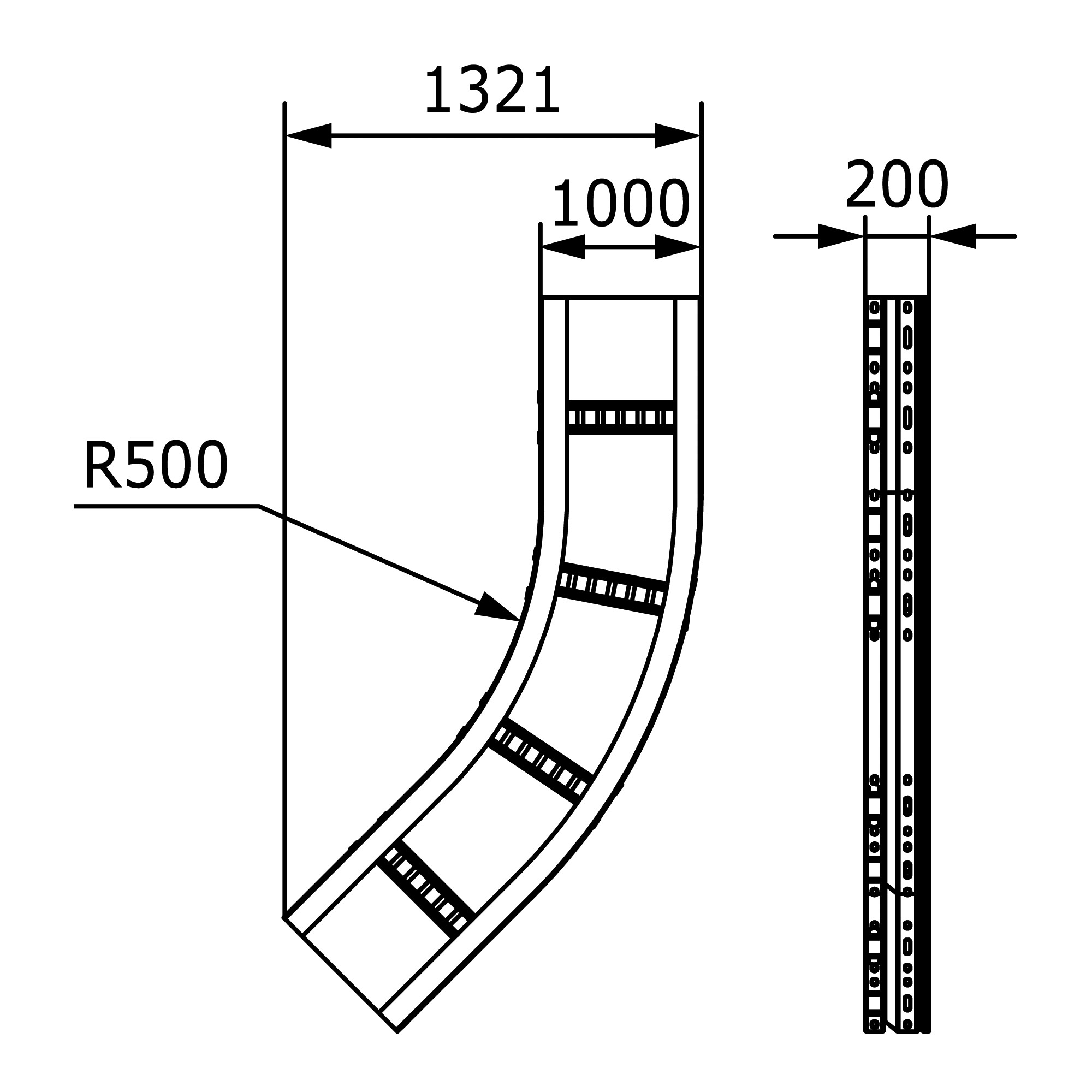

Drawings
| Seria | Name | DWG (dynamic.) | Intergraph | Autodesk Revit | STEP |
|---|---|---|---|---|---|
|
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
|
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
|
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
|
Heavy metal trays - " U5 Combitech"
|
|
|
|
Certificates
| Name | Document |
|---|---|
