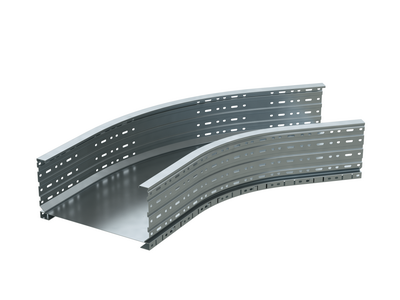

Horizontal sheet bend 45 degrees 100x600, R660 ZL

Code: USC616ZL
Horizontal sheet bend 45 degrees 100x600, R660 ZL
  • To ask a question
Colour Light grey
Model Without connector
Surface protection Zinc lamellar coating
Material thickness, mm 1.5
Deflection (angle) 45°
Side wall perforation No
Material quality Steel
Material Steel
Mounting perforation in bottom No
Inner radius, mm 660
Cable tray width, mm 600
Cable tray height, mm 100
Change of direction Horizontal
NATO-mounting holes No
Stainless steel, pickled No
Wide span model Yes
Suitable for circuit integrity No
Product type Accessories
Type of accessories 45º Horizontal bend
Height 100 mm
Width 600 mm
Material Zinc lamellar coating
Drawings
Seria Name DWG (dynamic.) Intergraph Autodesk Revit STEP
Heavy metal trays - " U5 Combitech"
Heavy metal trays - " U5 Combitech"
Heavy metal trays - " U5 Combitech"
Heavy metal trays - " U5 Combitech"
