Vertical ladder elbow (outside) 90 R600 Height 80 mm Wide 500mm, zinc lamellar coating

Code: ULOD685ZL
Vertical ladder elbow (outside) 90 R600 Height 80 mm Wide 500mm, zinc lamellar coating
  • To ask a question
Surface protection Zinc lamellar coating
Deflection (angle) 90°
Material Steel
Inner radius, mm 600
Cable ladder width, mm 500
Cable ladder height, mm 80
Change of direction Vertically descending
Material quality Steel
Stainless steel, pickled No
Suitable for circuit integrity No
Product type System accessories
Type of accessories 90º ladder vertical external bend
Height 80 mm
Width 500 mm
Material Zinc lamellar coating

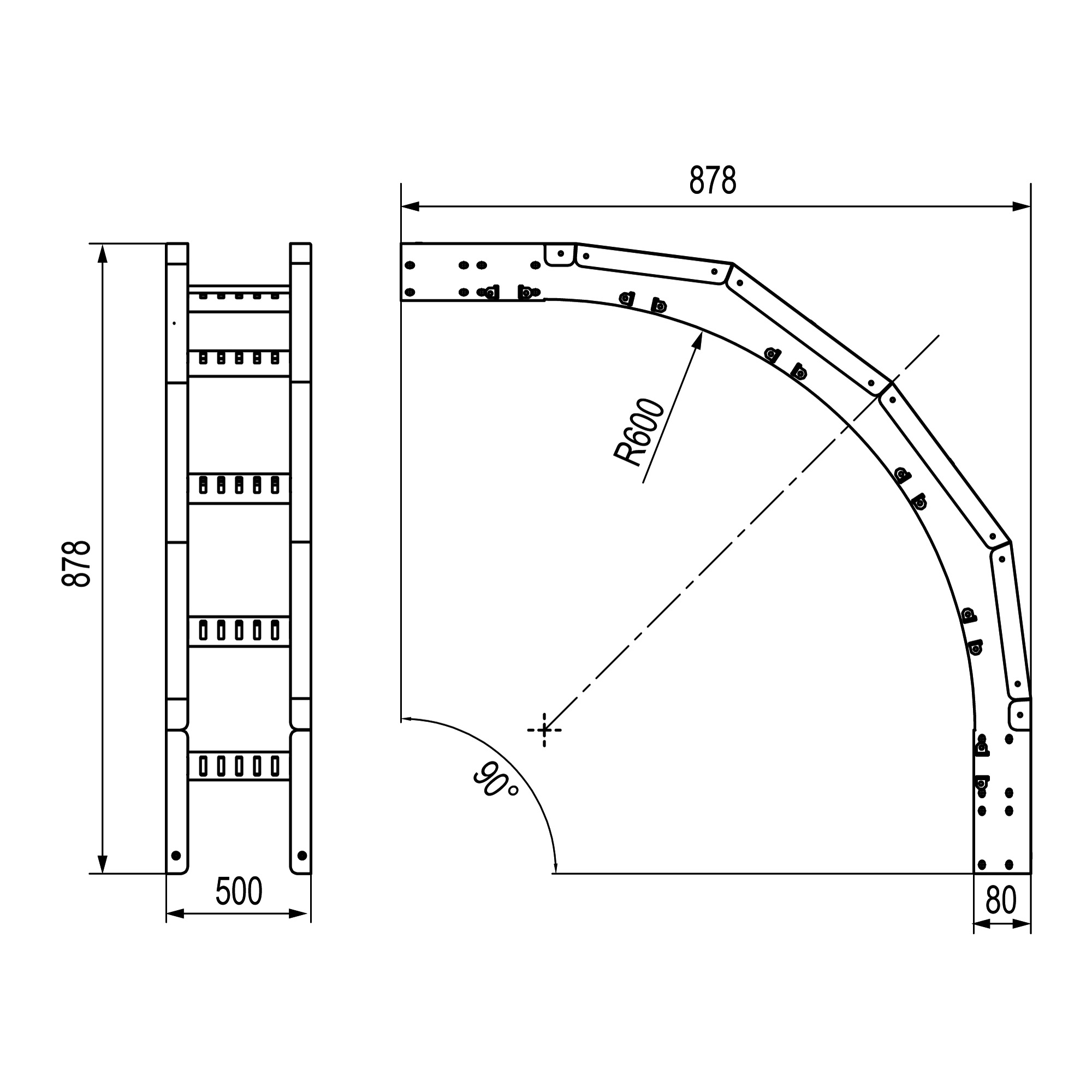

Drawings
Seria Name DWG (dynamic.) Intergraph Autodesk Revit STEP
