Vertical ladder elbow (outside) 90 R600 Height 80 mm Wide 400mm, zinc lamellar coating

Code: ULOD684ZL
Vertical ladder elbow (outside) 90 R600 Height 80 mm Wide 400mm, zinc lamellar coating
Vertical ladder elbow (outside) 90 R600 Height 80 mm Wide 400mm, zinc lamellar coating
  • To ask a question
Colour Light grey
Model Without connector
Surface protection Continuously galvanized zinc-aluminium
Deflection (angle) 90°
Material Steel
Inner radius, mm 600
Cable ladder width, mm 400
Cable ladder height, mm 80
Change of direction Vertically declining
Product type System accessories
Type of accessories 90º ladder vertical external bend
Height 80 mm
Width 400 mm
Material Zinc lamellar coating

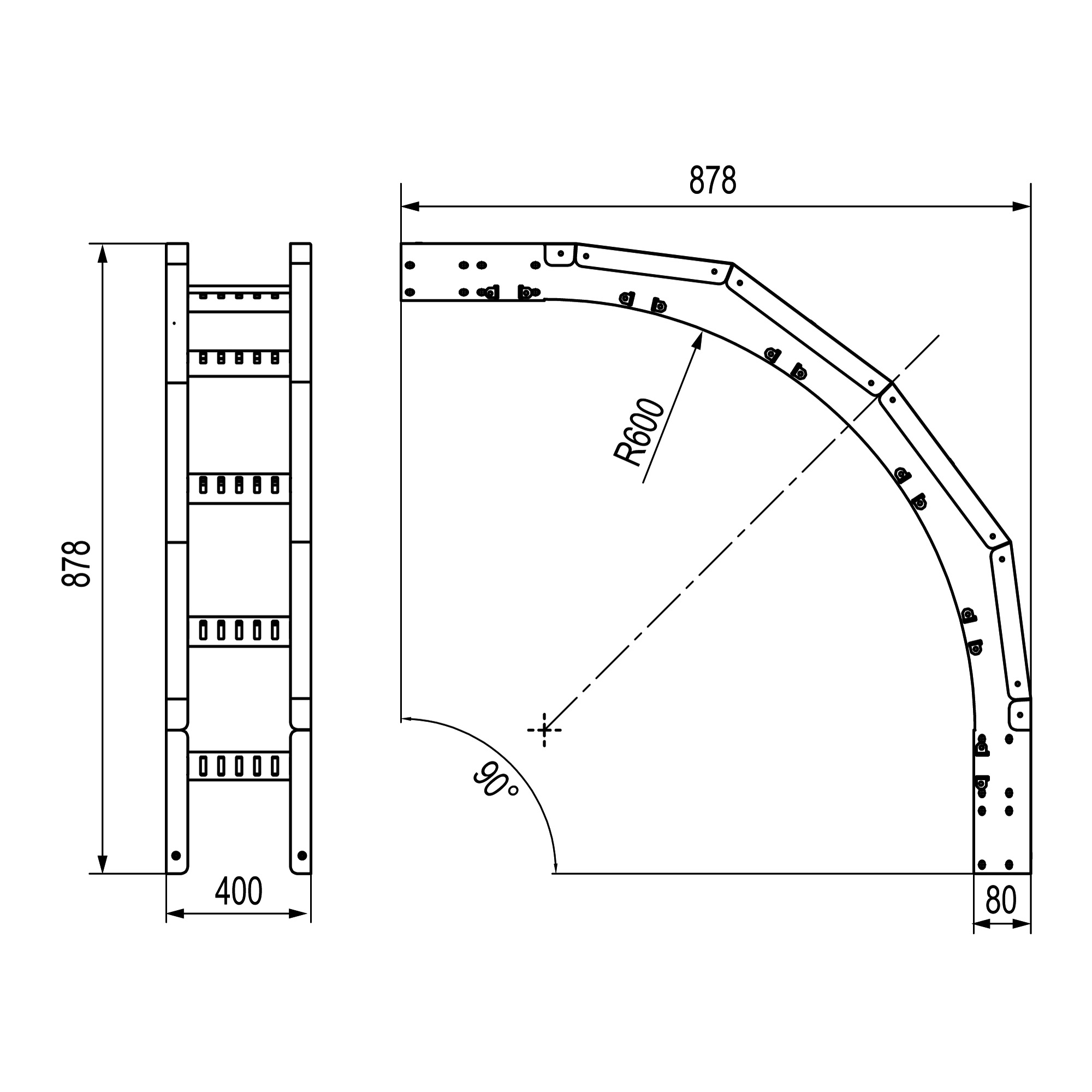

Drawings
Seria Name STEP Autodesk Revit Intergraph DWG (dynamic blocks)
Heavy metal trays - " U5 Combitech"
The heavy cable trays system "U5 Combitech"
ZIP
70.34 MB
Heavy metal trays - " U5 Combitech"
The heavy cable trays system "U5 Combitech"
ZIP
11.67 MB
Heavy metal trays - " U5 Combitech"
The heavy cable trays system "U5 Combitech"
RAR
5.28 MB
Heavy metal trays - " U5 Combitech"
The heavy cable trays system "U5 Combitech"
ZIP
16.42 MB
