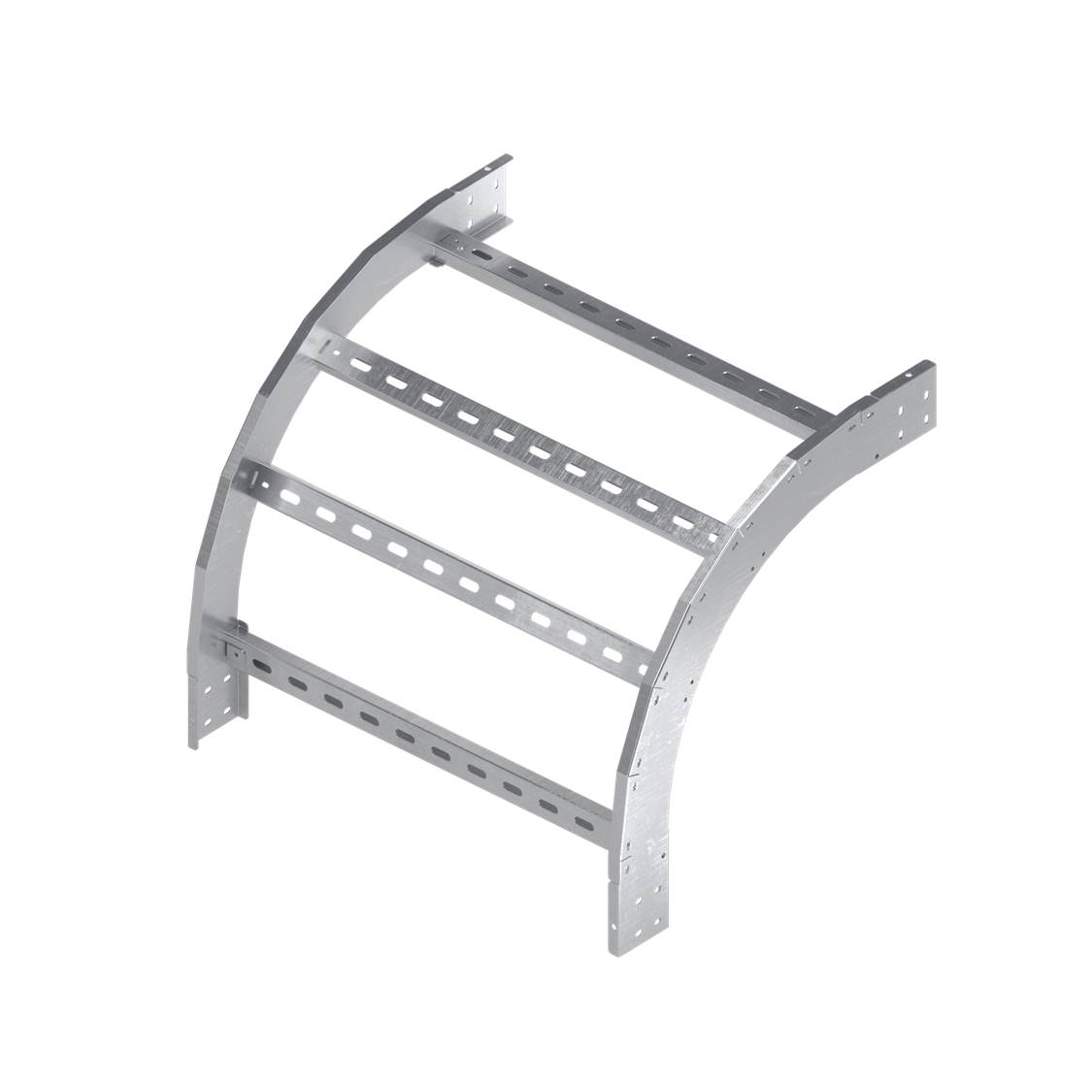

Vertical ladder elbow (outside) 90 R600 Height 80 mm Wide 300mm, zinc lamellar coating

Vertical ladder elbow (outside) 90 R600 Height 80 mm Wide 300mm, zinc lamellar coating

Code: ULOD683ZL

To ask a question

Colour	Light grey
Model	Without connector
Surface protection	Continuously galvanized zinc-aluminium
Deflection (angle)	90°
Material	Steel

Inner radius, mm	600
Cable ladder width, mm	300
Cable ladder height, mm	80
Change of direction	Vertically declining

Product type	System accessories
Type of accessories	90º ladder vertical external bend
Height	80 mm

Width	300 mm
Material	Zinc lamellar coating
