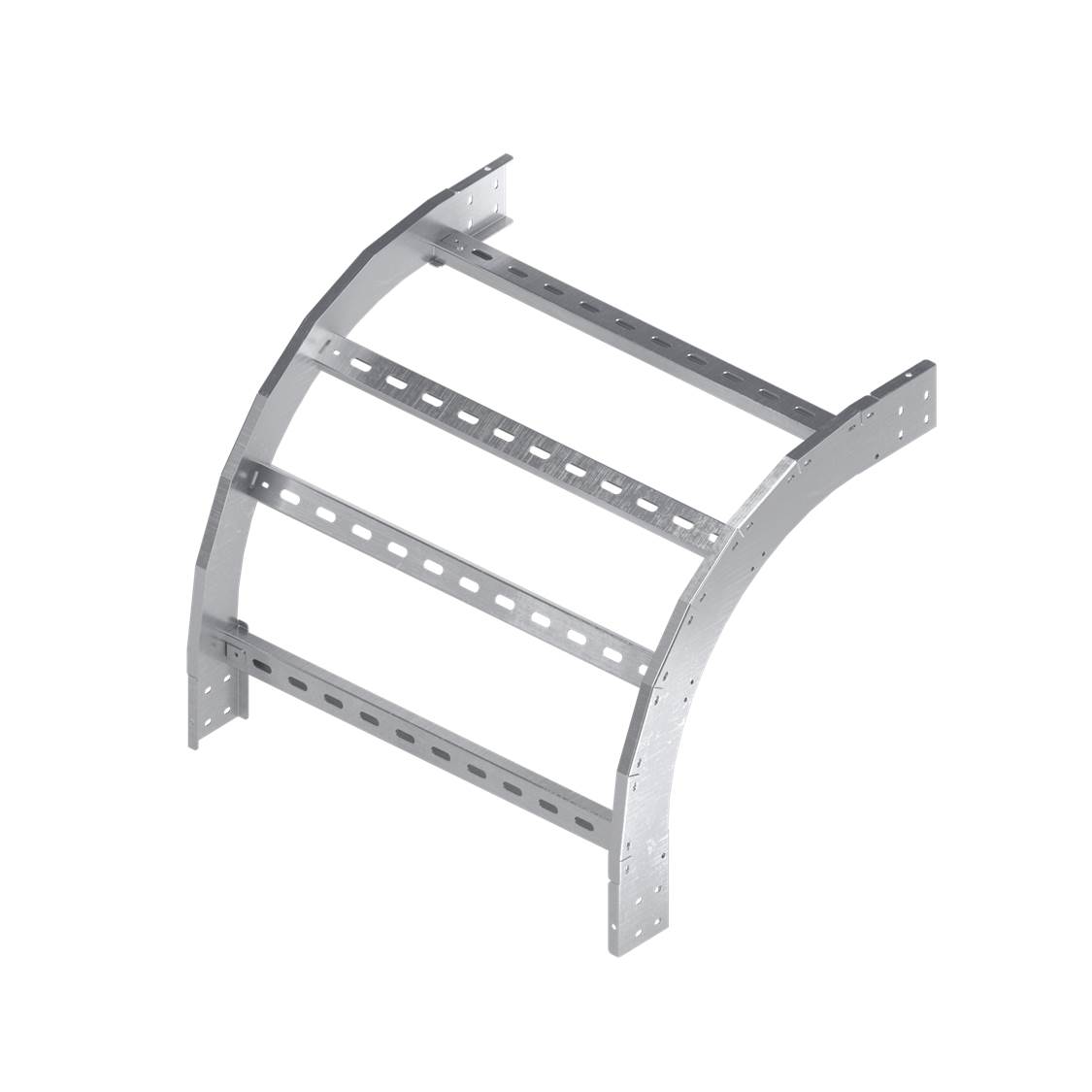

Vertical ladder elbow (outside) 90 R600 Height 80 mm Wide 200mm, zinc lamellar coating

Vertical ladder elbow (outside) 90 R600 Height 80 mm Wide 200mm, zinc lamellar coating

Code: ULOD682ZL

To ask a question

Colour	Light grey
Model	Without connector
Surface protection	Continuously galvanized zinc-aluminium
Deflection (angle)	90°
Material	Steel

Inner radius, mm	600
Cable ladder width, mm	200
Cable ladder height, mm	80
Change of direction	Vertically declining

Product type	System accessories
Type of accessories	90º ladder vertical external bend
Height	80 mm

Width	200 mm
Material	Zinc lamellar coating

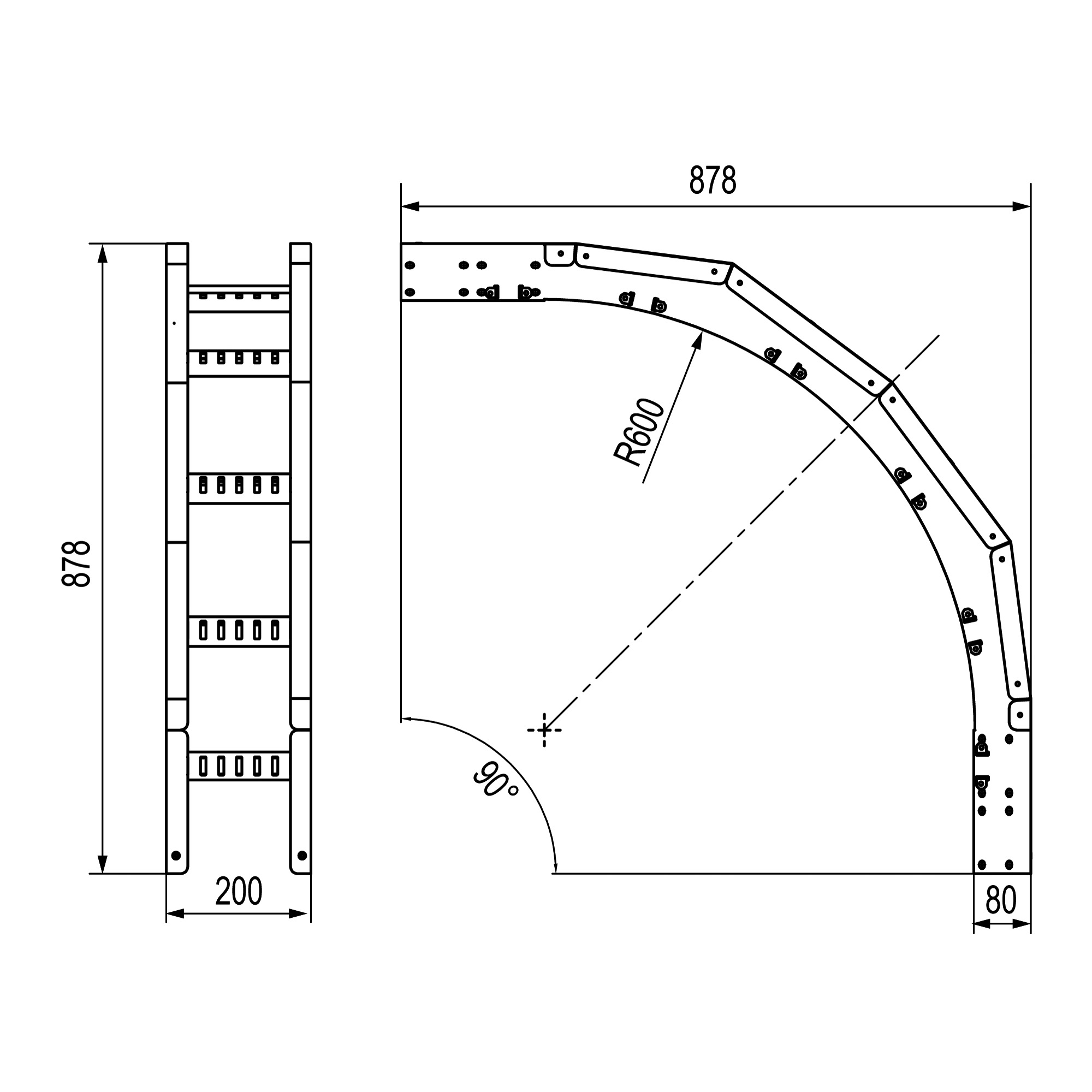

Drawings
