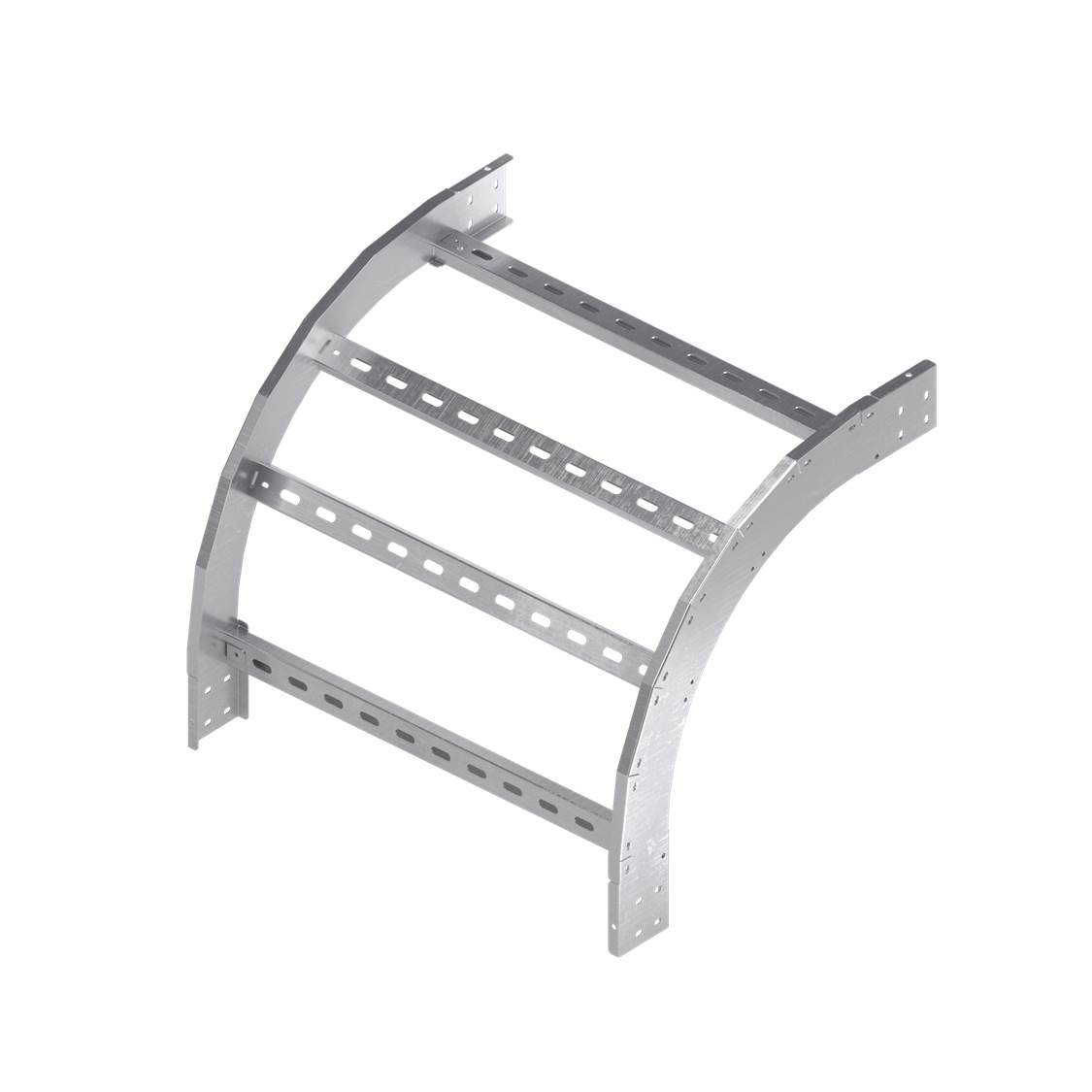

Vertical ladder elbow (outside) 90 R600 Height 80 mm Wide 1000mm, zinc lamellar coating
Code: ULOD680ZL
Vertical ladder elbow (outside) 90 R600 Height 80 mm Wide 1000mm, zinc lamellar coating
Code: ULOD680ZL
| Surface protection | Zinc lamellar coating |
| Deflection (angle) | 90° |
| Material | Steel |
| Inner radius, mm | 600 |
| Cable ladder width, mm | 1000 |
| Cable ladder height, mm | 80 |
| Change of direction | Vertically descending |
| Material quality | Steel |
| Stainless steel, pickled | No |
| Suitable for circuit integrity | No |
| Product type | Accessories for ladder trays |
| Type of accessories | 90º vertical external bend |
| Height | 80 mm |
| Side rail thickness | 1.5 mm |
| Material | Zinc-lamellated steel |
| Width | 1000 mm |
| 19 мм | 600 mm |

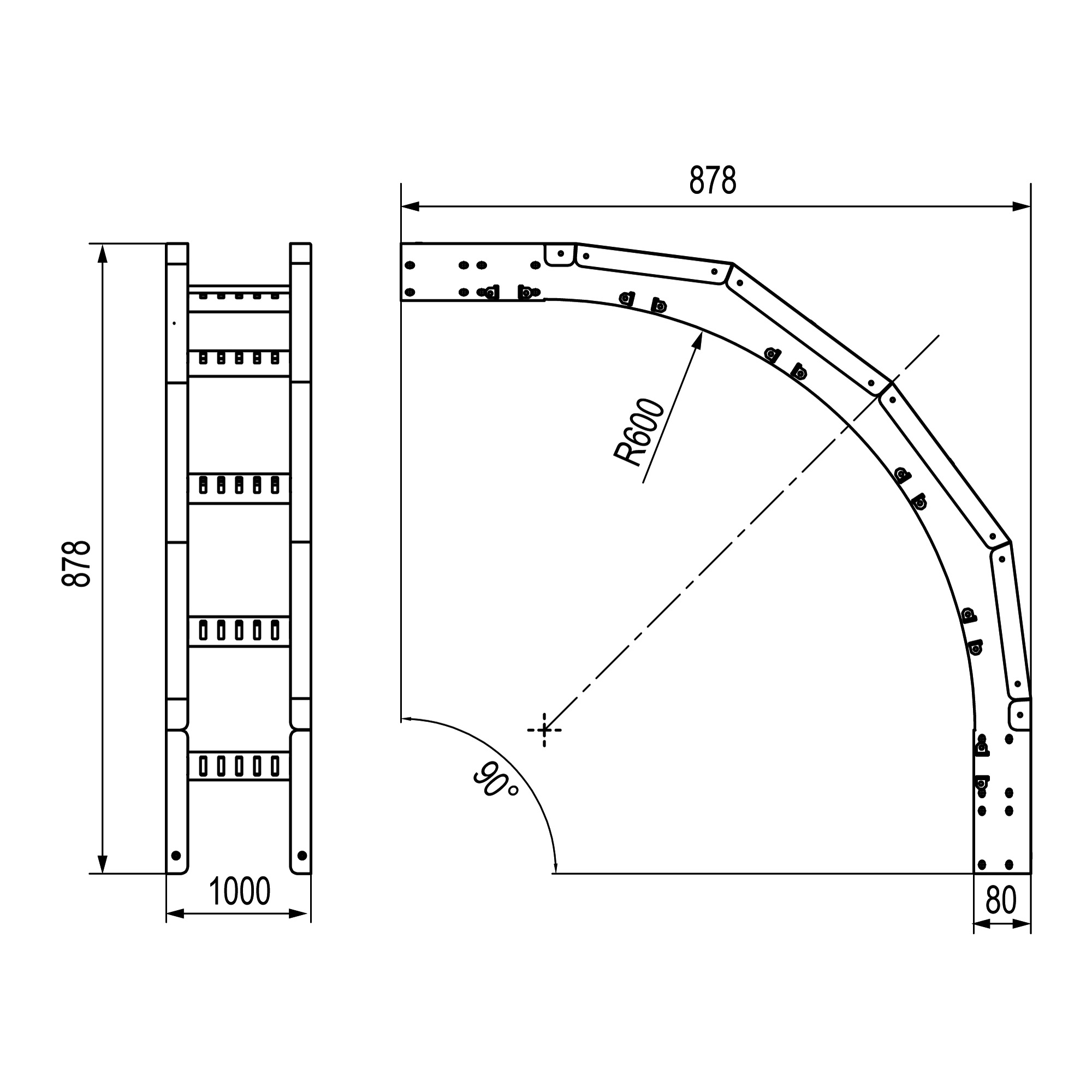

Drawings
