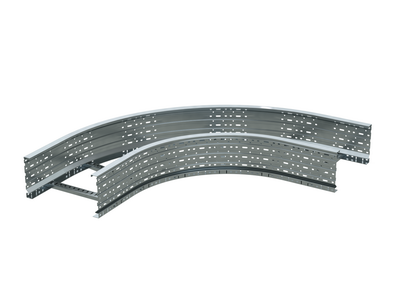

Horizontal ladder bend 90 degrees 100x400, R660 ZL

Code: ULD614ZL
raw material PVC
Width, mm 1260
Length, mm 1260
Climate version U1, HL1, UHL1, UHL5, OM1
Radius of bending, mm 600
Thickness of side walls, mm 1.5
Colour Light grey
Model Without connector
Surface protection Continuously galvanized zinc-aluminium
Deflection (angle) 90°
Type of rung Perforated profile
Side wall perforation Yes
Material quality Other
Material Steel
Inner radius, mm 600
Cable ladder width, mm 400
Cable ladder height, mm 100
Change of direction Horizontal
Stainless steel, pickled No
Wide span model Yes
Type of side joist Profile (open)
Suitable for circuit integrity No

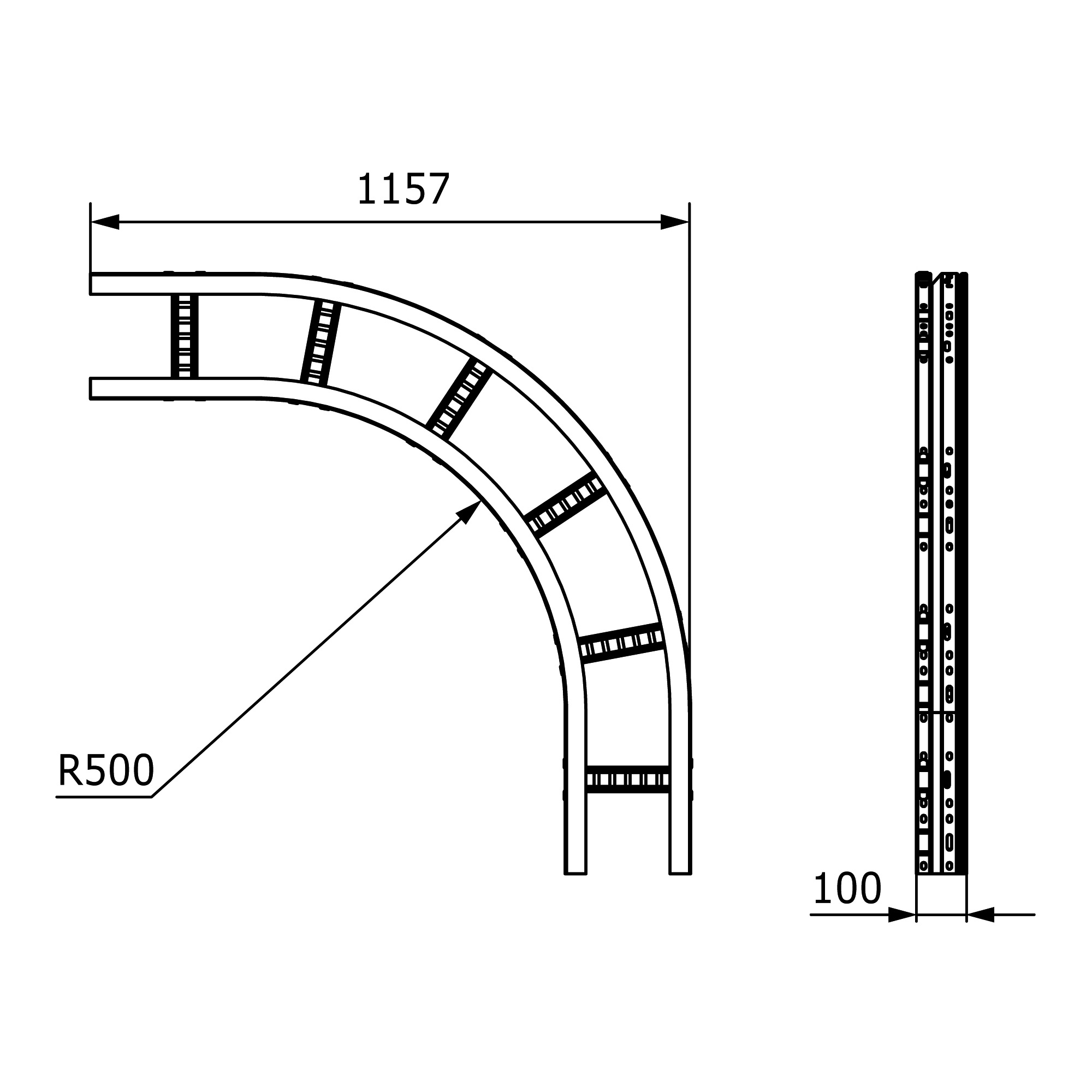

Drawings
Seria Name STEP Autodesk Revit Intergraph DWG (dynamic blocks)
