Horizontal ladder bend 45 degrees 150x600, R660 ZL

Code: ULC656ZL
Colour Light grey
Model Without connector
Surface protection Continuously galvanized zinc-aluminium
Deflection (angle) 45°
Type of rung Perforated profile
Side wall perforation Yes
Material quality Other
Material Steel
Inner radius, mm 600
Cable ladder width, mm 600
Cable ladder height, mm 150
Change of direction Horizontal
Stainless steel, pickled No
Wide span model Yes
Type of side joist Profile (open)
Suitable for circuit integrity No
Product type System accessories
Type of accessories 45º ladder horizontal bend
Height 150 mm
Width 600 mm

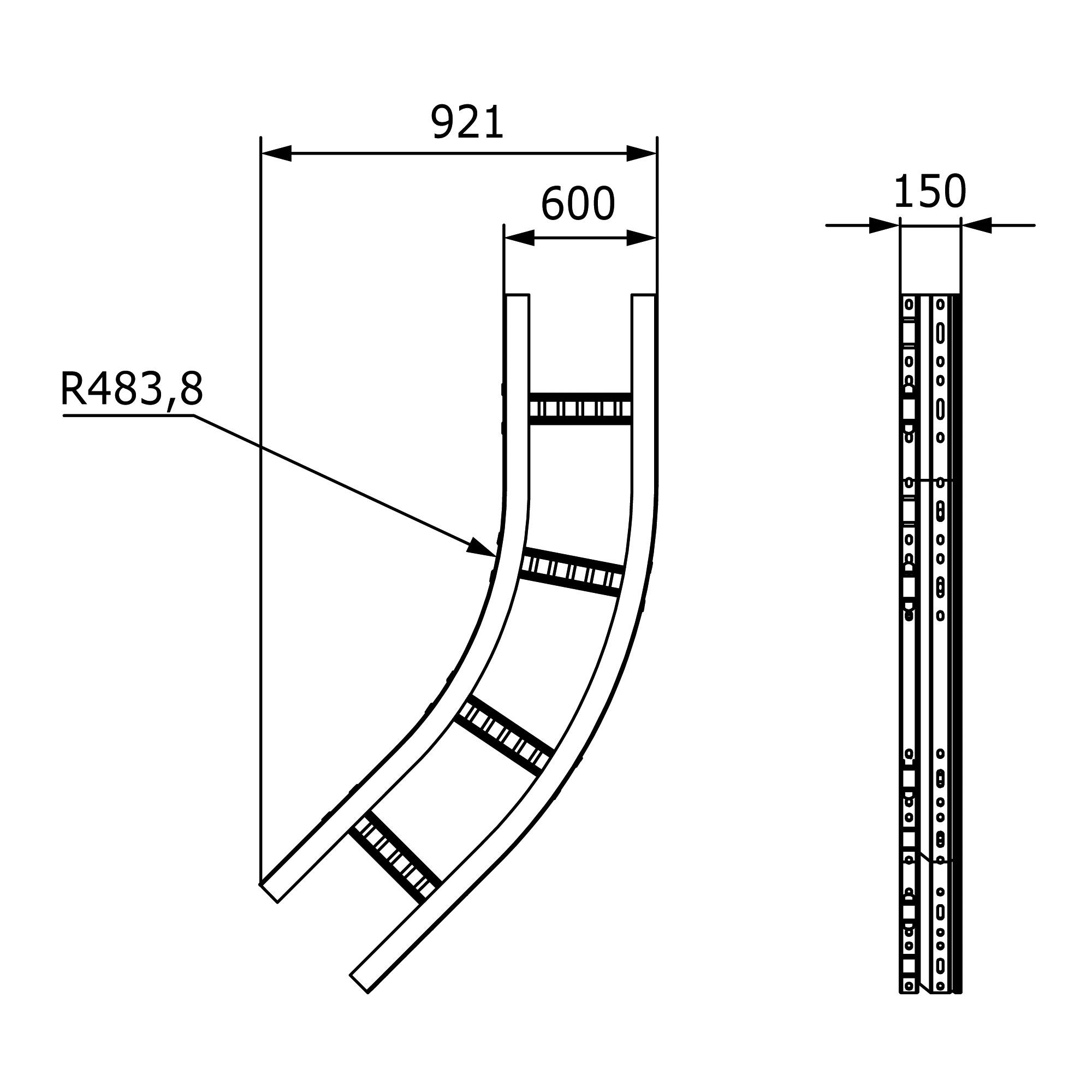

Drawings
Seria Name STEP Autodesk Revit Intergraph DWG (dynamic blocks)
U5 Combitech - heavy metal trays
U5 Combitech - heavy metal trays
U5 Combitech - heavy metal trays
U5 Combitech - heavy metal trays
