Horizontal ladder bend 45 degrees 150x1000, R660 ZL

Code: ULC650ZL
Colour Light grey
Model Without connector
Surface protection Continuously galvanized zinc-aluminium
Deflection (angle) 45°
Type of rung Perforated profile
Side wall perforation Yes
Material quality Other
Material Steel
Inner radius, mm 600
Cable ladder width, mm 1000
Cable ladder height, mm 150
Change of direction Horizontal
Stainless steel, pickled No
Wide span model Yes
Type of side joist Profile (open)
Suitable for circuit integrity No
Material Zinc lamellar coating
Width, mm 1000
Length, mm 1417
Climate version U1, HL1, UHL1, UHL5, OM1
Radius of bending, mm 600
Thickness of side walls, mm 1.5

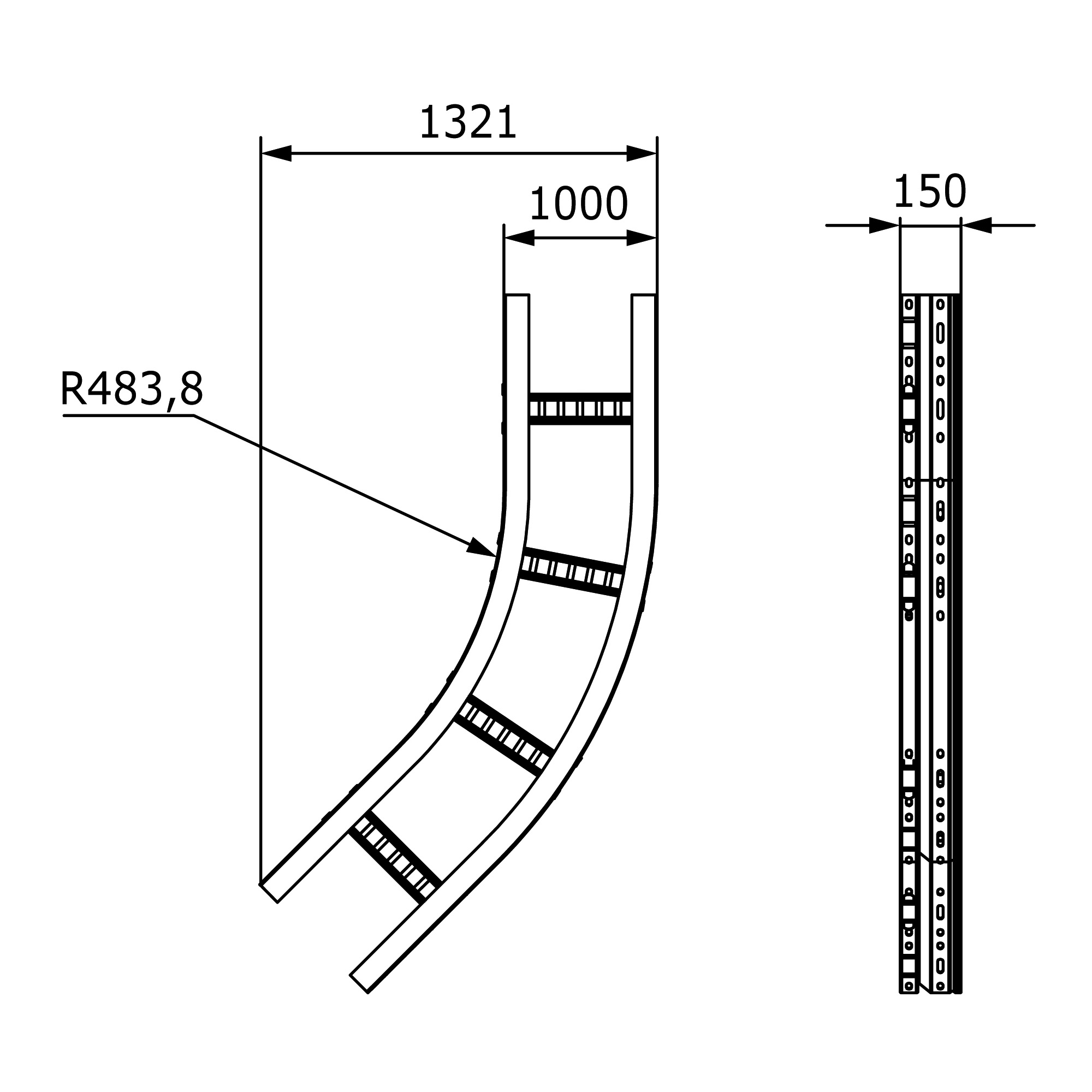

Drawings
Seria Name STEP Autodesk Revit Intergraph DWG (dynamic blocks)
U5 Combitech - heavy metal trays
U5 Combitech - heavy metal trays
U5 Combitech - heavy metal trays
U5 Combitech - heavy metal trays
