Horizontal ladder bend 45 degrees 200x400, R660 ZL

Code: ULC624ZL
Colour Light grey
Model Without connector
Surface protection Continuously galvanized zinc-aluminium
Deflection (angle) 45°
Type of rung Perforated profile
Side wall perforation Yes
Material quality Other
Material Steel
Inner radius, mm 600
Cable ladder width, mm 400
Cable ladder height, mm 200
Change of direction Horizontal
Stainless steel, pickled No
Wide span model Yes
Type of side joist Profile (open)
Suitable for circuit integrity No
Product type System accessories
Type of accessories 45º ladder horizontal bend
Height 200 mm
Width 400 mm

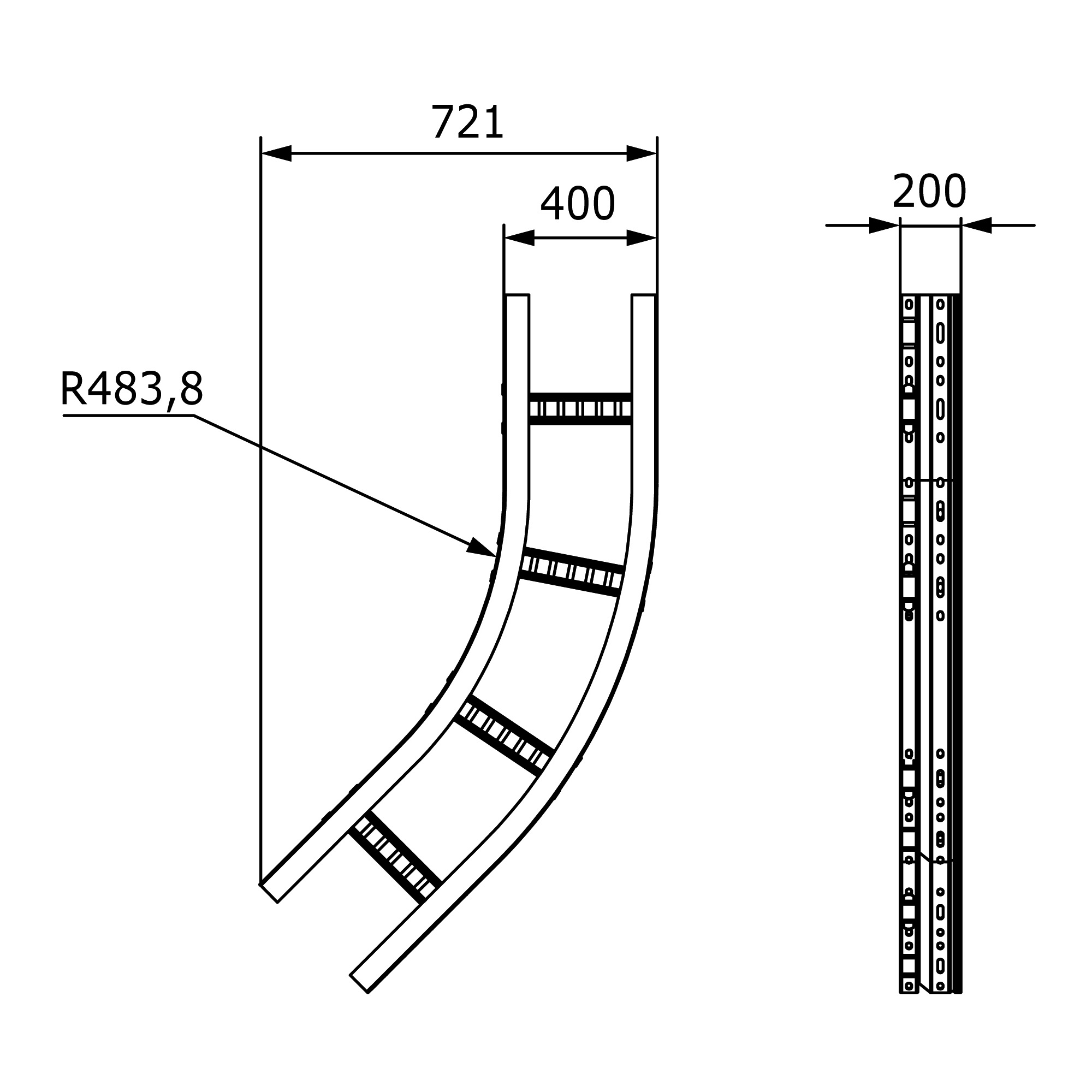

Drawings
