Horizontal ladder bend 45 degrees 200x1000, R660 ZL

Code: ULC620ZL
raw material PVC
Width, mm 1293
Length, mm 1417
Climate version U1, HL1, UHL1, UHL5, OM1
Radius of bending, mm 600
Thickness of side walls, mm 1.5
Colour Light grey
Model Without connector
Surface protection Continuously galvanized zinc-aluminium
Deflection (angle) 45°
Type of rung Perforated profile
Side wall perforation Yes
Material quality Other
Material Steel
Inner radius, mm 600
Cable ladder width, mm 1000
Cable ladder height, mm 200
Change of direction Horizontal
Stainless steel, pickled No
Wide span model Yes
Type of side joist Profile (open)
Suitable for circuit integrity No

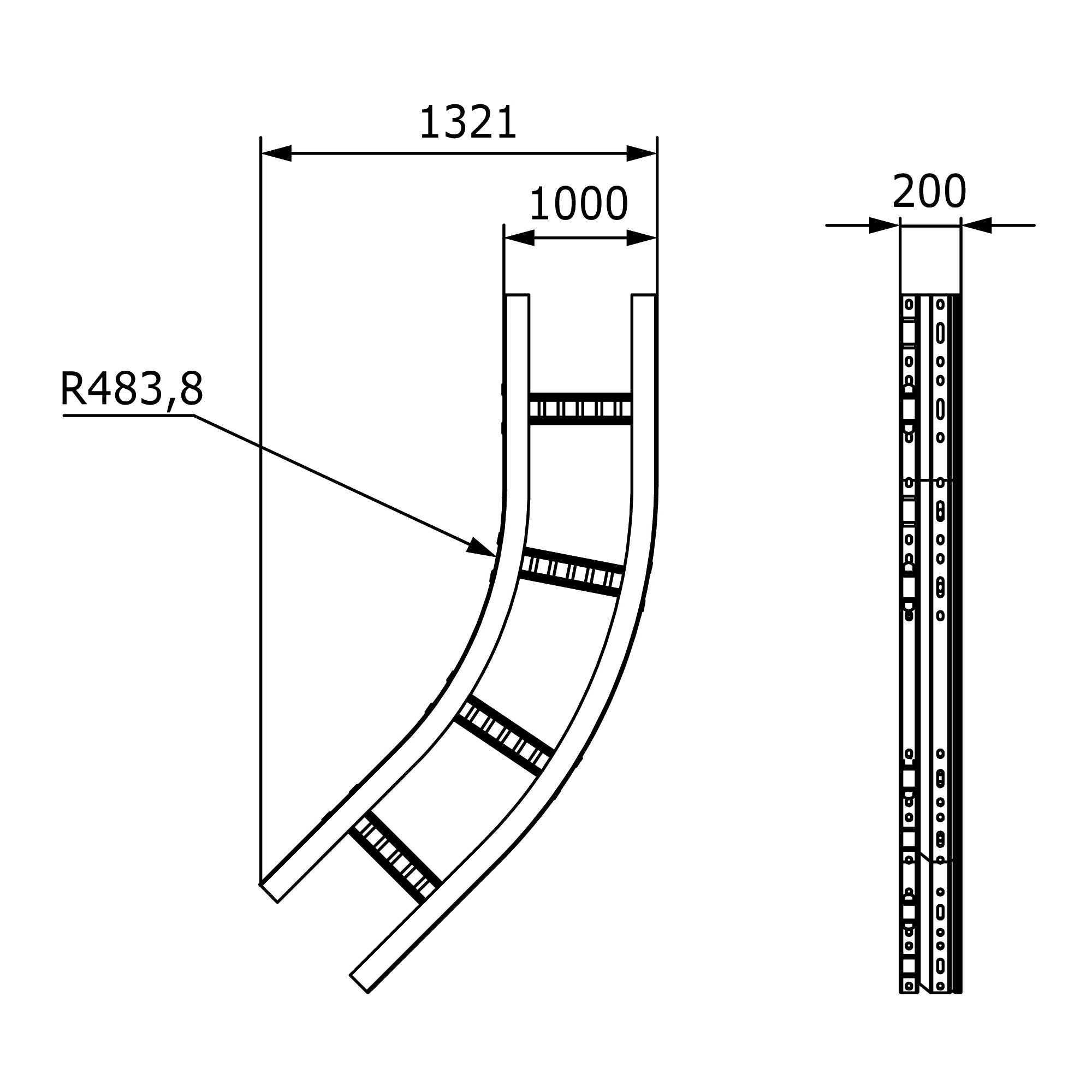

Drawings
