Horizontal ladder bend 45 degrees 100x900, R660 ZL

Code: ULC619ZL

Horizontal ladder bend 45 degrees 100x900, R660 ZL

Code: ULC619ZL
Surface protection Zinc lamellar coating
Deflection (angle) 45°
Type of rung Perforated profile
Side wall perforation Yes
Material quality Steel
Material Steel
Inner radius, mm 600
Cable ladder width, mm 900
Cable ladder height, mm 100
Change of direction Horizontal
Stainless steel, pickled No
Wide span model Yes
Type of side joist Profile (open)
Suitable for circuit integrity No
Product type Accessories for ladder trays
Type of accessories 45º Horizontal bend
Height 100 mm
Width 900 mm
Material Zinc lamellar coating

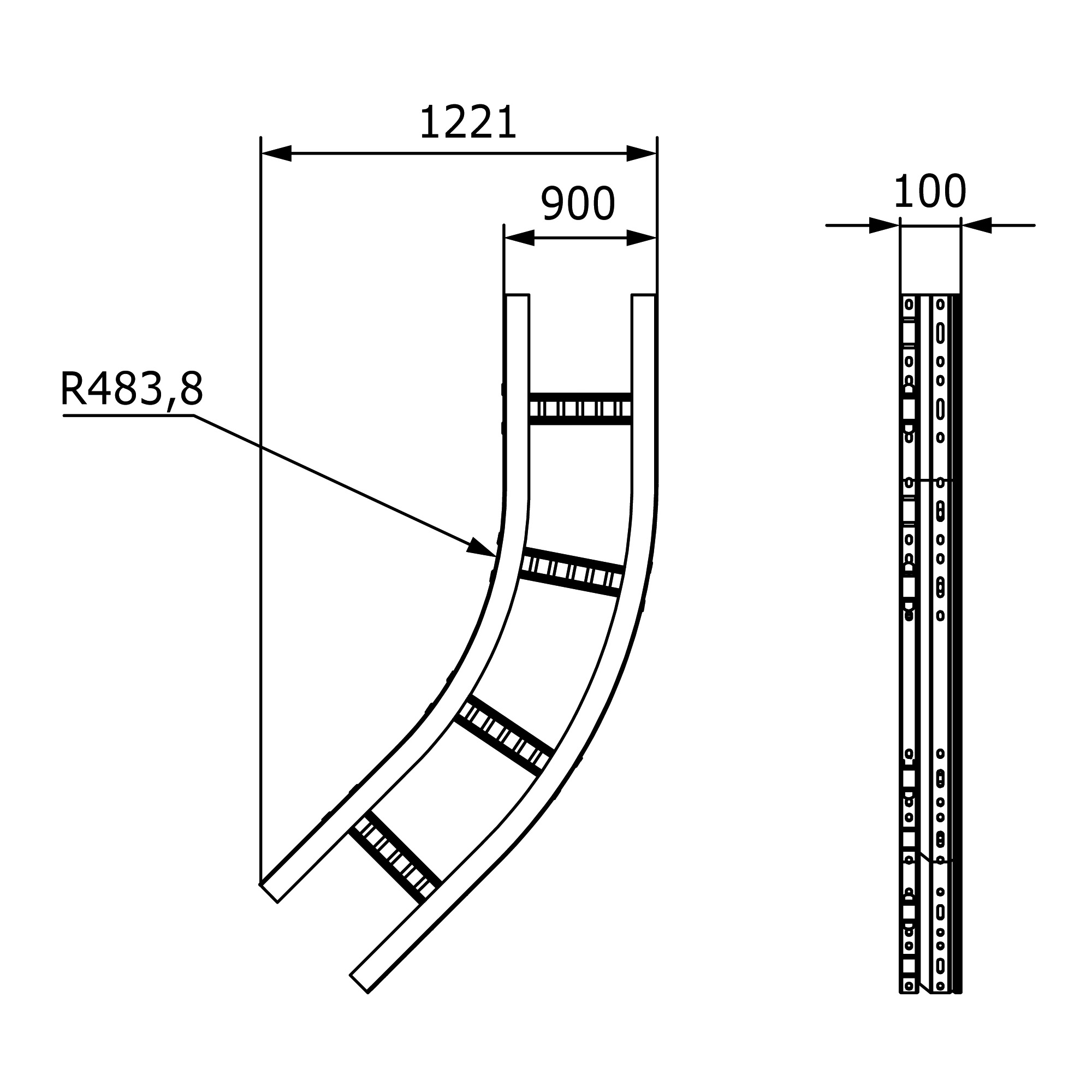

Drawings
Seria Name DWG (dynamic.) Intergraph Autodesk Revit STEP
