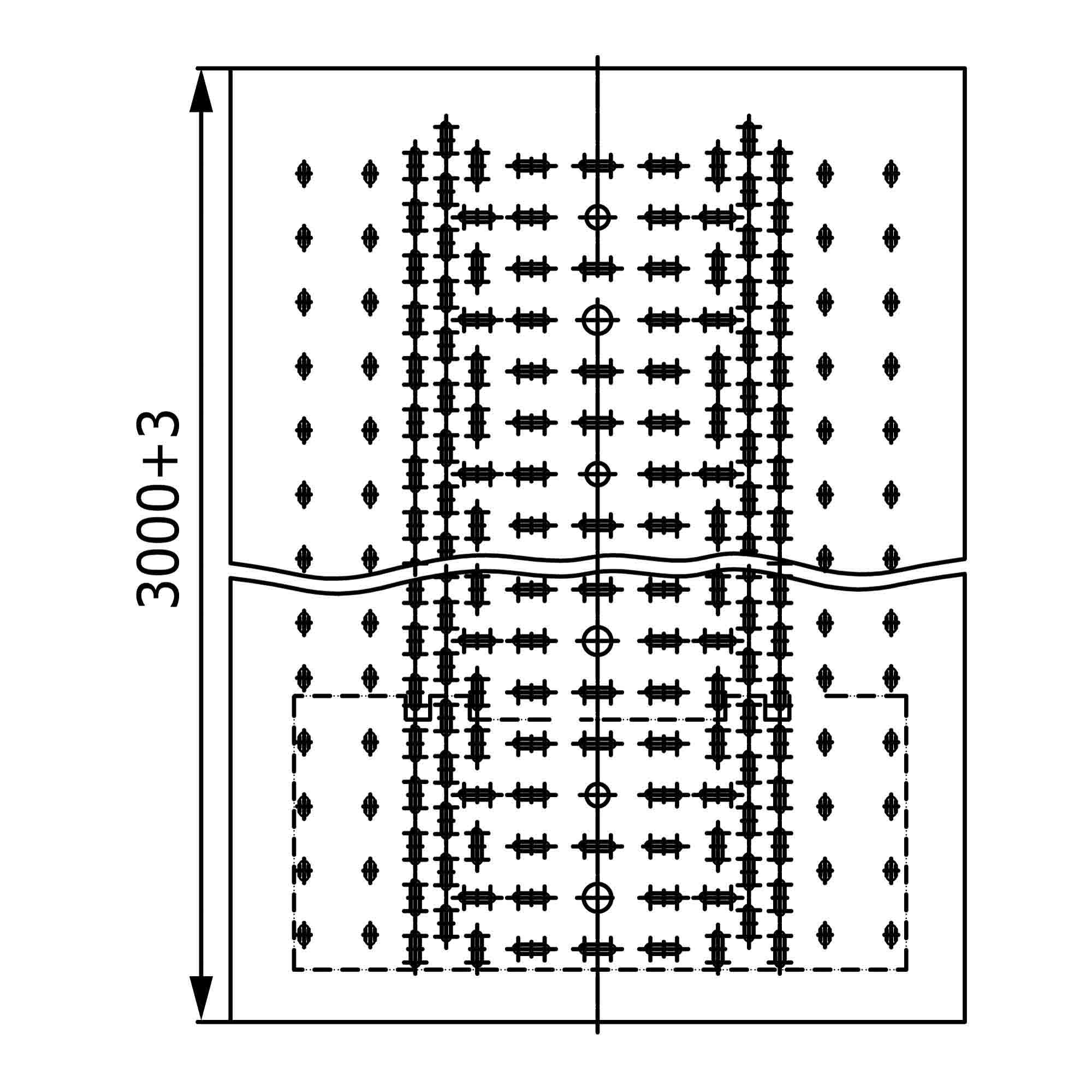

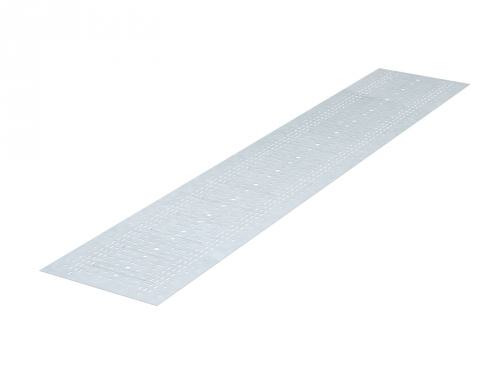

Bottom insert 800 ZL

Code: UDM308ZL

To ask a question

Colour	Light grey
Perforated	Yes
Surface protection	Continuously galvanized zinc-aluminium
Material quality	Other
Length, mm	3000

Material	Steel
Cable ladder width, mm	800
Stainless steel, pickled	No
Wide span model	Yes

Product type	System accessories
Width	800 mm

Material

Zinc lamellar coating

Drawings

Seria	Name	STEP	Autodesk Revit	Intergraph	DWG (dynamic blocks)
Heavy metal trays - " U5 Combitech"	The heavy cable trays system "U5 Combitech"	ZIP 70.34 MB
Heavy metal trays - " U5 Combitech"	The heavy cable trays system "U5 Combitech"		ZIP 11.67 MB
Heavy metal trays - " U5 Combitech"	The heavy cable trays system "U5 Combitech"			RAR 5.28 MB
Heavy metal trays - " U5 Combitech"	The heavy cable trays system "U5 Combitech"				ZIP 16.42 MB

Certificates

Name	Document
In-liner Front_In-liner Aero - Exemption letter of fire safety certificates for In-liner Front and In-liner Aero	PDF 797.70 kB
In-liner Aero - Russian Maritime Register of Shipping for aluminium ducts and columns	PDF 597.74 kB
In-liner Aero - Sanitary-epidemiological conclusion for aluminium ducts and columns_1	PDF 2.23 MB
Exemption Letter for metal trays and its accessories	PDF 3.87 MB
All types of cable trays, ducts, welded and modular cases -Russian Maritime Register of Shipping_1	PDF 1.42 MB
Certificate of conformity for heavy-duty cable ladder system	PDF 583.00 kB
Exemption Letter for under floor boxes, columns and its accessories	PDF 890.42 kB
Exemption Letter for the under floor boxes, floor-mounted buses, universal carriers for wiring devices, supports	PDF 231.21 kB
