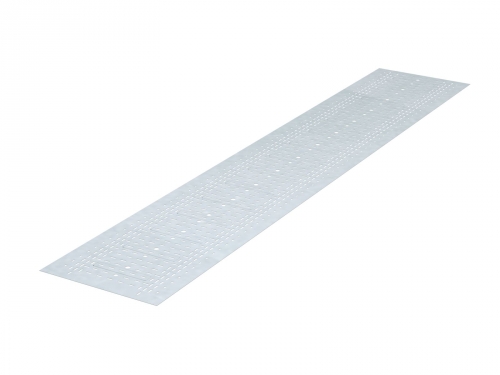

Bottom insert 600 ZL
Code: UDM306ZL
Bottom insert 600 ZL
Code: UDM306ZL
Colour | Light grey |
Perforated | Yes |
Surface protection | Zinc lamellar coating |
Material quality | Steel |
Length, mm | 3000 |
Material | Steel |
Cable ladder width, mm | 600 |
Stainless steel, pickled | No |
Wide span model | Yes |
Product type | Accessories for ladder trays |
Type of accessories | Bottom insert |
Thickness | 1.0 mm |
Material | Zinc-lamellated steel |
Width | 600 mm |

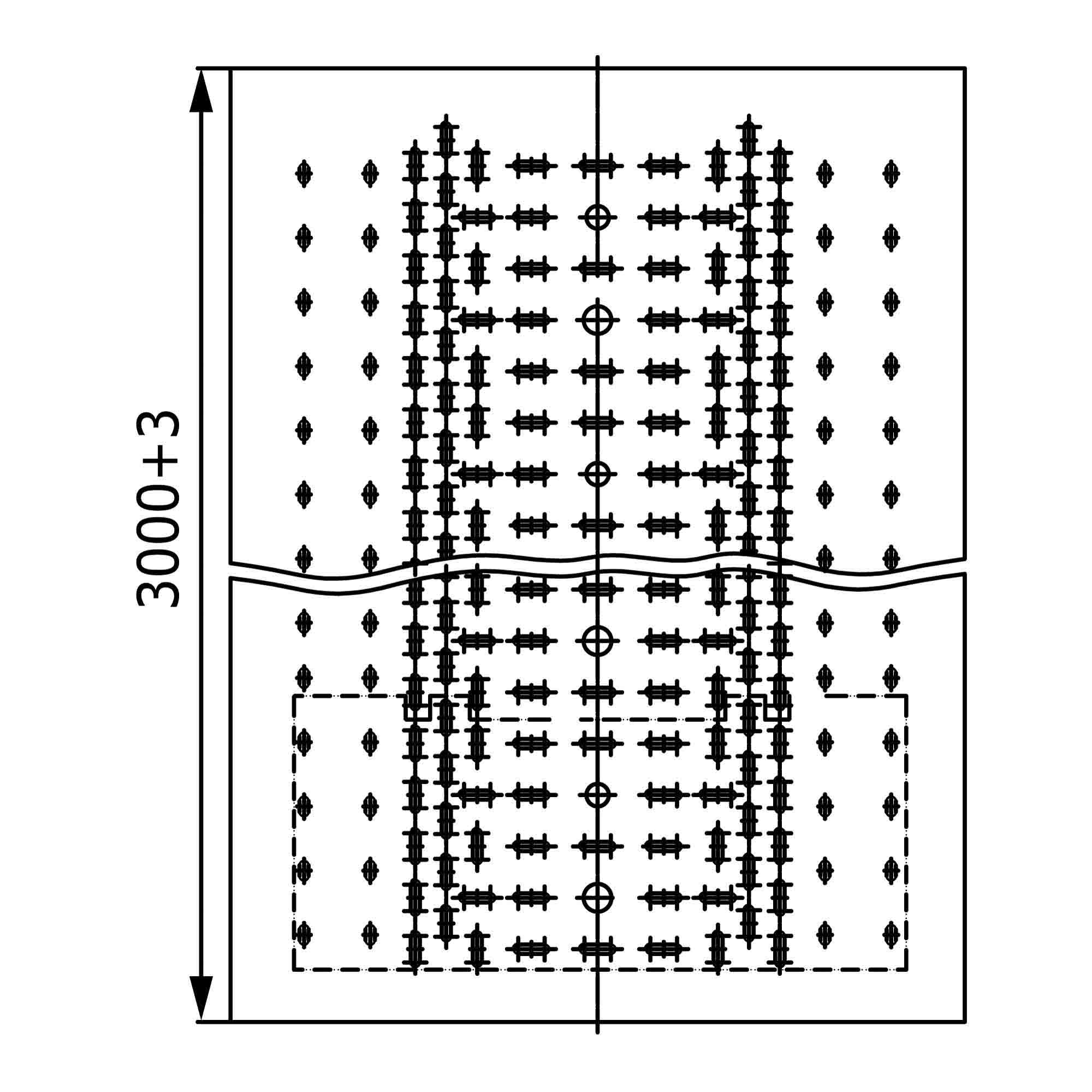

Drawings
Seria | Name | DWG (dynamic.) | Intergraph | Autodesk Revit | STEP |
---|---|---|---|---|---|
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
Heavy metal trays - " U5 Combitech"
|
|
|
|
Certificates
Name | Document |
---|---|
