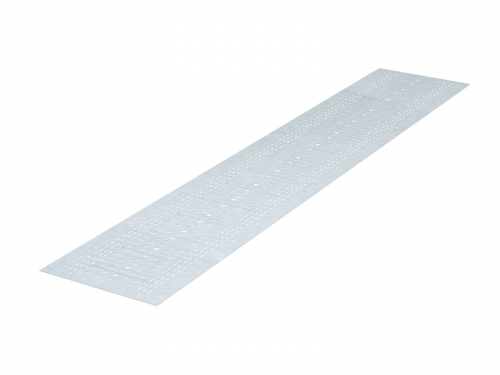

Bottom insert 300 ZL
Code: UDM303ZL
Bottom insert 300 ZL
Code: UDM303ZL
Colour | Light grey |
Perforated | Да |
Surface protection | Zinc lamellar coating |
Material quality | Steel |
Length, mm | 3000 |
Material | Steel |
Cable ladder width, mm | 300 |
Stainless steel, pickled | Нет |
Wide span model | Да |
Product type | Accessories for ladder trays |
Type of accessories | Bottom insert |
Length | 3000 mm |
Thickness | 1.0 mm |
Material | Zinc-lamellated steel |
Width | 300 mm |

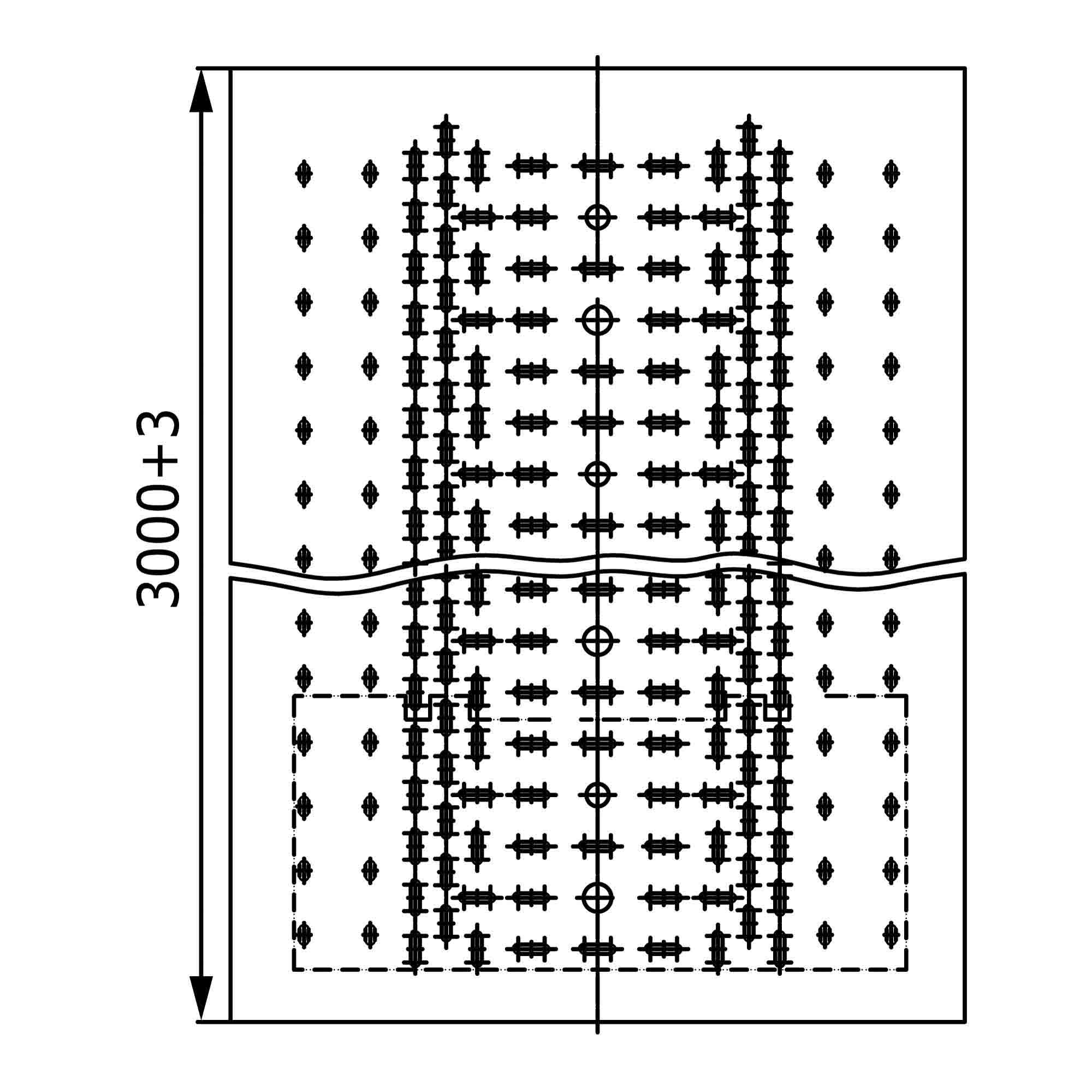

Drawings
Seria | Name | DWG (dynamic.) | Intergraph | Autodesk Revit | STEP |
---|---|---|---|---|---|
