Sheet tray non-perforated 100х900, side rail thickness 1,5 mm, L 3 m ZL

Code: UNM319ZL
Sheet tray non-perforated 100х900, side rail thickness 1,5 mm, L 3 m ZL
Sheet tray non-perforated 100х900, side rail thickness 1,5 mm, L 3 m ZL
Code: UNM319ZL
  • To ask a question
  • Characteristics
  • Accessories
  • Analogs

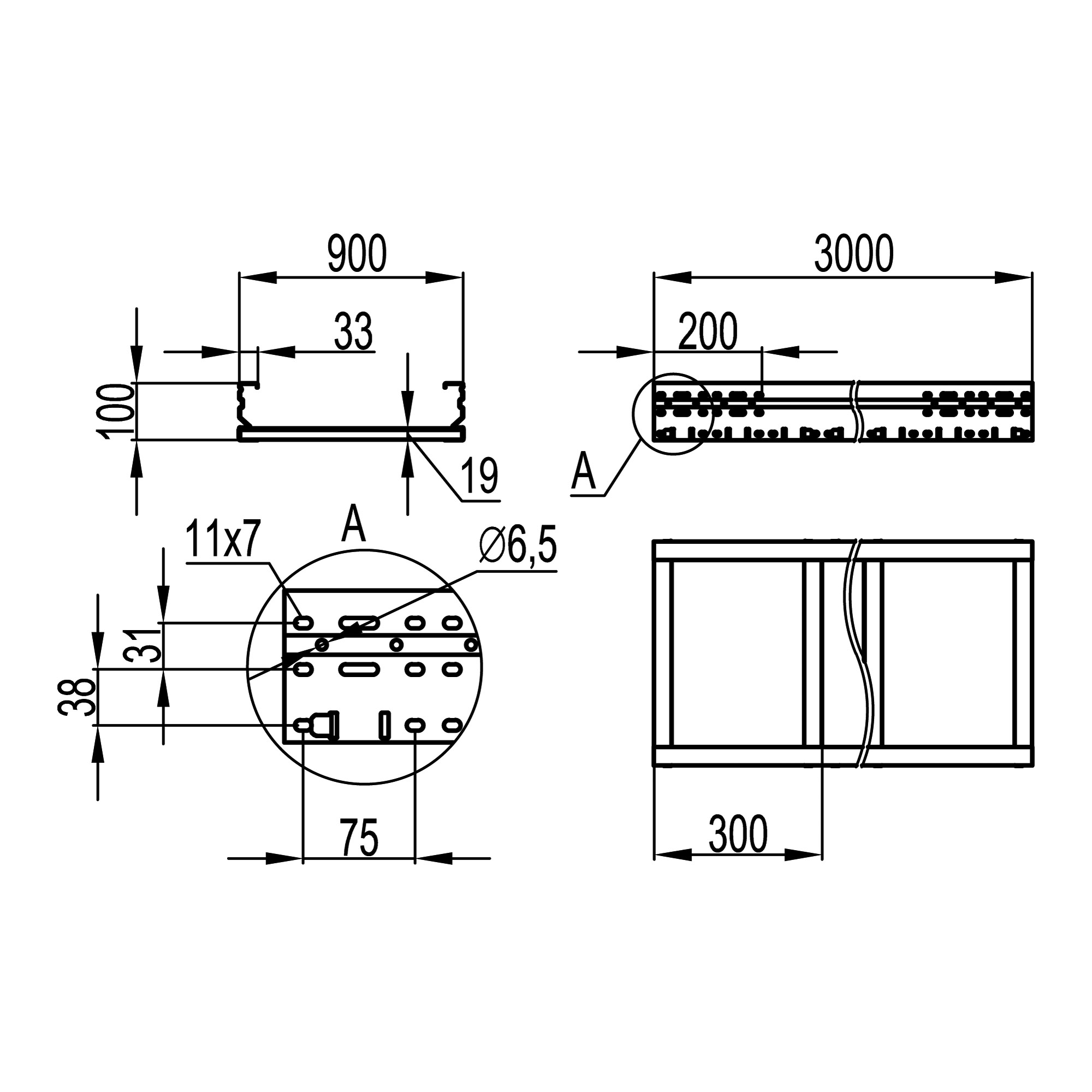

  • Drawings
  • Certificates
  • Promo
  • Viewed items
Colour Grey
Width, mm 900
Model Without connector
Height, mm 100
Surface protection Continuously galvanized zinc-aluminium
Material thickness, mm 1.5
Side wall perforation Yes
Material quality Steel
Length, mm 3000
Material Steel
Mounting perforation in bottom No
Useful cross section, mm² 72000
NATO-mounting holes Yes
Wide span model Yes
Suitable for circuit integrity Yes
Product type Non perforated straight elements
Type Heavy metal trays - " U5 Combitech"
Height 100 mm
Side rail thickness 1.5 mm
Length 3000 mm
Material Zinc-lamellated steel
Width 900 mm
