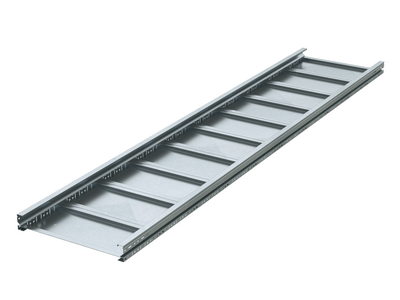

Sheet tray non-perforated 100х500, side rail thickness 1,5 mm, L 3 m ZL

Code: UNM315ZL

Sheet tray non-perforated 100х500, side rail thickness 1,5 mm, L 3 m ZL

Code: UNM315ZL
Colour Light grey
Width, mm 500
Model Without connector
Height, mm 100
Surface protection Zinc lamellar coating
Material thickness, mm 1.5
Side wall perforation Yes
Material quality Steel
Length, mm 3000
Material Steel
Mounting perforation in bottom No
Useful cross section, mm² 40000
NATO-mounting holes Yes
Wide span model Yes
Suitable for circuit integrity Yes
Height 100 mm
Width 500 mm
Material Zinc lamellar coating
Side rail thickness 1.5 mm
Type Heavy metal trays - " U5 Combitech"
Product type Non perforated Straight Element
Length 3000 mm
Accessories
Analogs

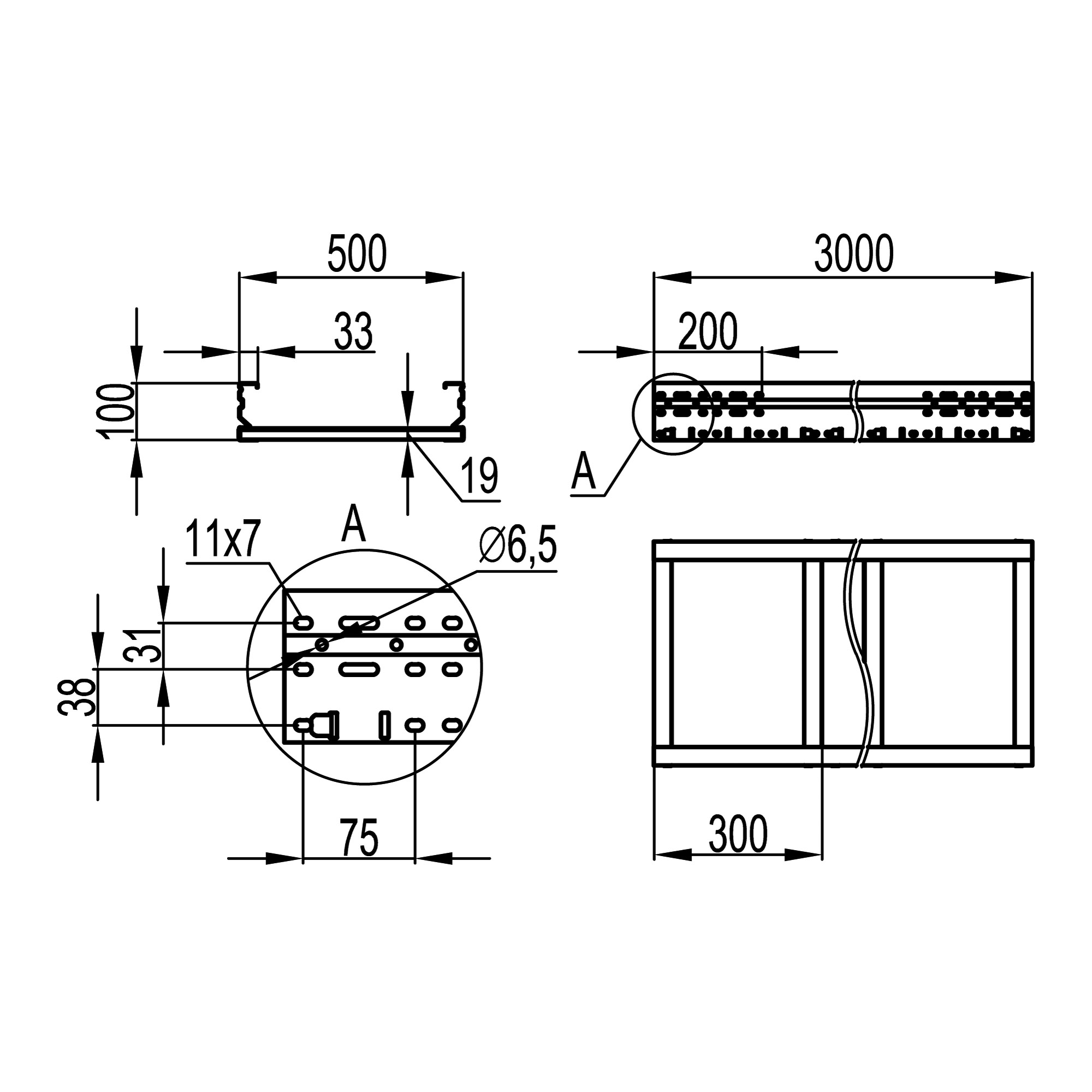

Drawings
Seria Name DWG (dynamic.) Intergraph Autodesk Revit STEP
