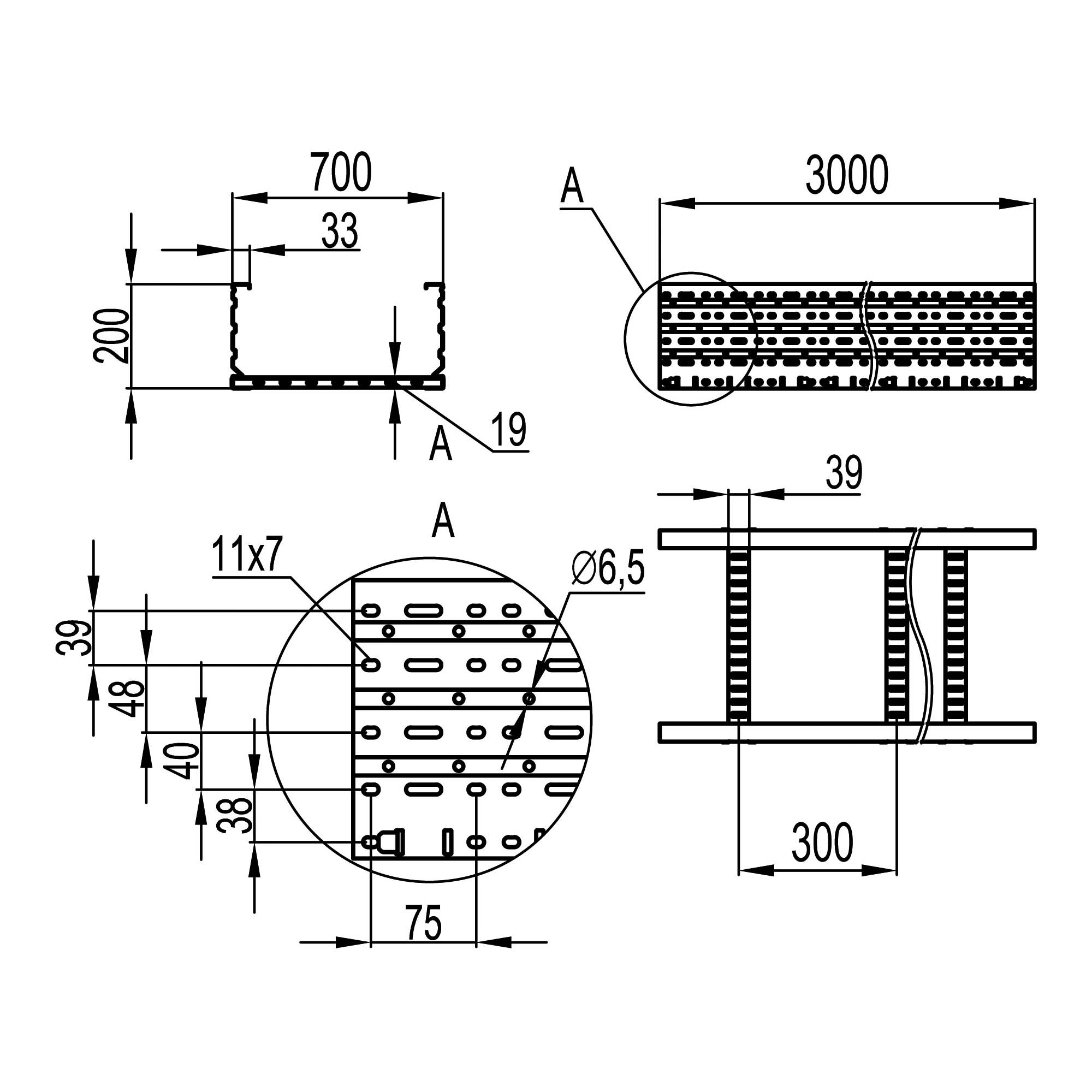

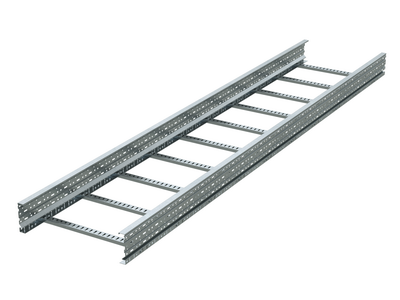

Cable ladder 200x700, side rail thickness 2 mm, L 3 m zinc lamellar coating

Code: ULH327ZL
Code: ULH327ZL
  • To ask a question
Colour Light grey
Width, mm 700
Height, mm 200
Surface protection Zinc lamellar coating
Type of rung Perforated profile
Side wall perforation Yes
Material quality Steel
Length, mm 3000
Material Steel
Useful cross section, mm² 126000
Wide span model Yes
Type of side joist Profile (open)
Rung centre spacing, mm 200
Fixation rung Fully revited
Material thickness, mm 2
Product type Metal ladder trays
Height 200 mm
Width 700 mm
Material Zinc-lamellated steel
Side rail thickness 2 mm
Type Heavy metal trays - " U5 Combitech"
Length 3000 mm
