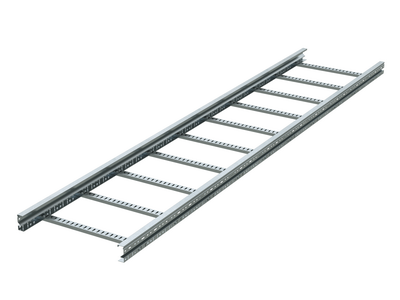

Cable ladder 100х500, side rail thickness 2 mm, L 6 m ZL

Code: ULH615ZL

Cable ladder 100х500, side rail thickness 2 mm, L 6 m ZL

Code: ULH615ZL
Colour Light grey
Width, mm 500
Height, mm 100
Surface protection Zinc lamellar coating
Type of rung Perforated profile
Side wall perforation Yes
Material quality Steel
Length, mm 6000
Material Steel
Useful cross section, mm² 40000
Stainless steel, pickled Yes
Wide span model Yes
Type of side joist Profile (open)
Rung centre spacing, mm 300
Fixation rung Fully revited
Height 100 mm
Width 500 mm
Material Zinc lamellar coating
Side rail thickness 2 mm
Type Heavy metal trays - " U5 Combitech"
Product type Cable ladder
Length 6000 mm
Accessories
Analogs

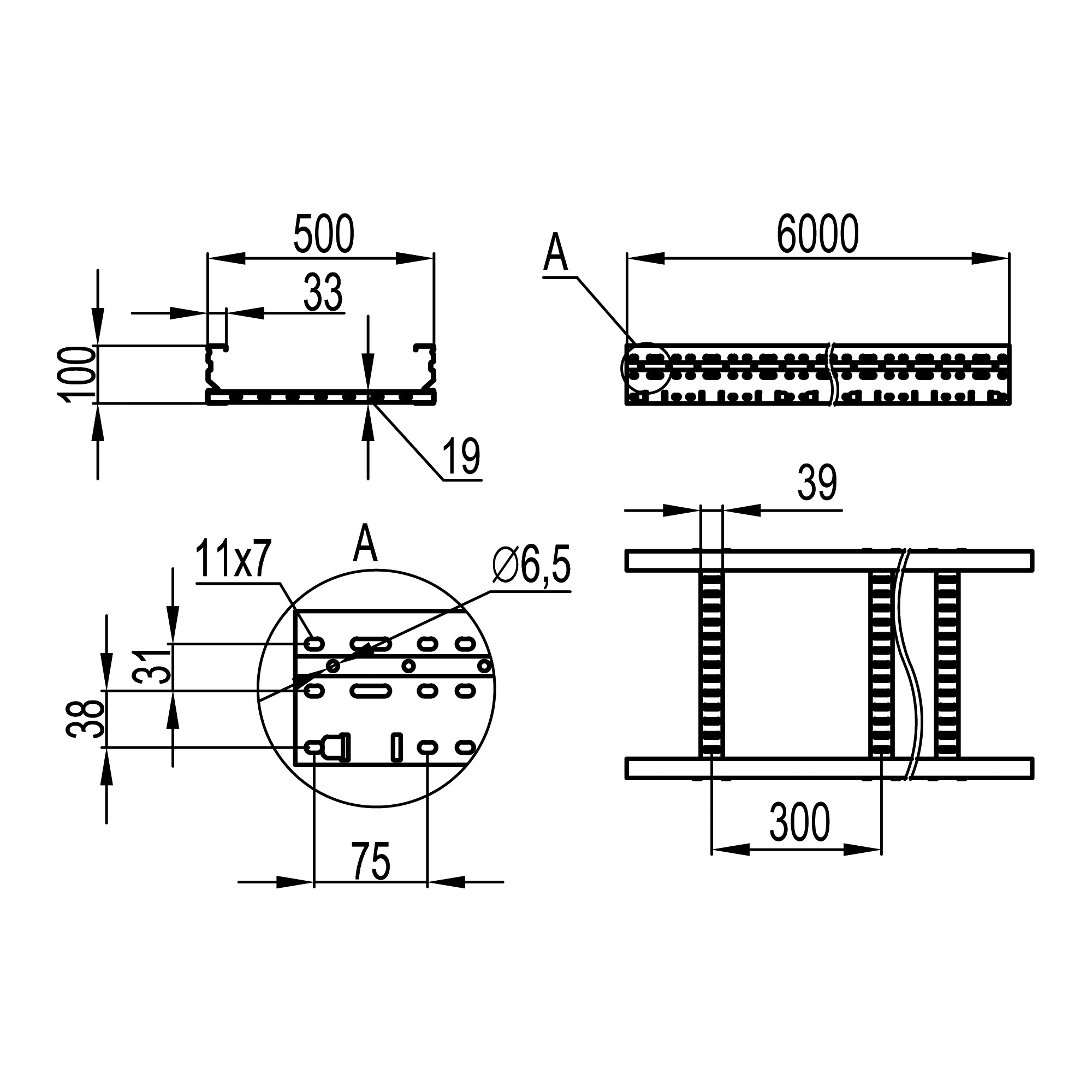

Drawings
Seria Name DWG (dynamic.) Intergraph Autodesk Revit STEP
