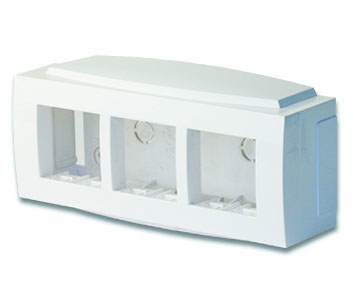

Box for outlet Brava, 6 mod.

Code: 09221
Box for outlet Brava, 6 mod.
Box for outlet Brava, 6 mod.
Color white, RAL 9016
Material ABC-plastic

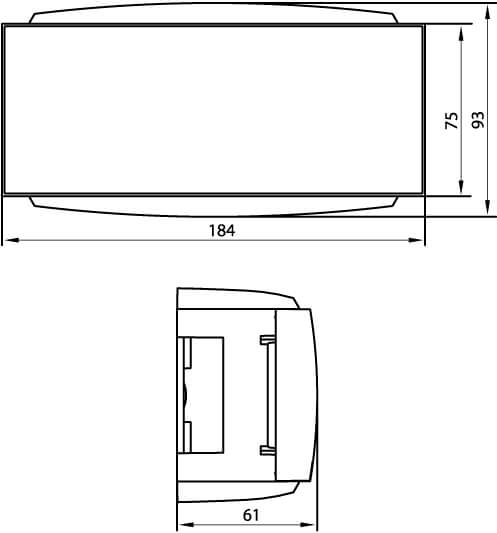

Length, mm 184
Temperature of mounting, °C ­5°С ... +60°С
Width (nominal), mm 93
Ingress Protection rating, IP IP40
Temperature of operation, °C ­5°С ... +60°С
Temperature of operation, °C +60°C
Climate version UHL4
Q'ty of bays 1
Height (nominal), mm 61
Fire protection It is not subject to obligatory confirmation of compliance of the requirements of the Federal law №123-ФЗ 22.06.2012
Model Open
Number of units 3
Type of device Grid size 45
Material Plastic
Mounting method installation unit Snap
Strain relief possibility No
With connection space No
Mounting method box Other
Mounting track Other
Number of modules 6
Certificates
Name Document
In-liner_In-liner Front - Sanitary-epidemiological conclusion for ducts
PDF
2.31 MB
In-liner_In-liner Front - Exemption letter for Sanitary-epidemiological conclusion for cable ducts and miniducts with accessories_1
PDF
1.14 MB
In-liner_In-liner Front - Fire safety certificates for miniducts TMR and floor ducts CSP-F
PDF
392.95 kB
"In-liner_In-liner Front" - Certificate of conformity to GOST R for miniducts TMR and floor ducts CSP-F
PDF
514.76 kB
Certificate of conformity to GOST R for on the cable ducts, a series of "In-liner" and "In-liner Front" and accessories
PDF
1.09 MB
The Certificate of expert opinion for cable ducts and miniducts
PDF
3.09 MB
