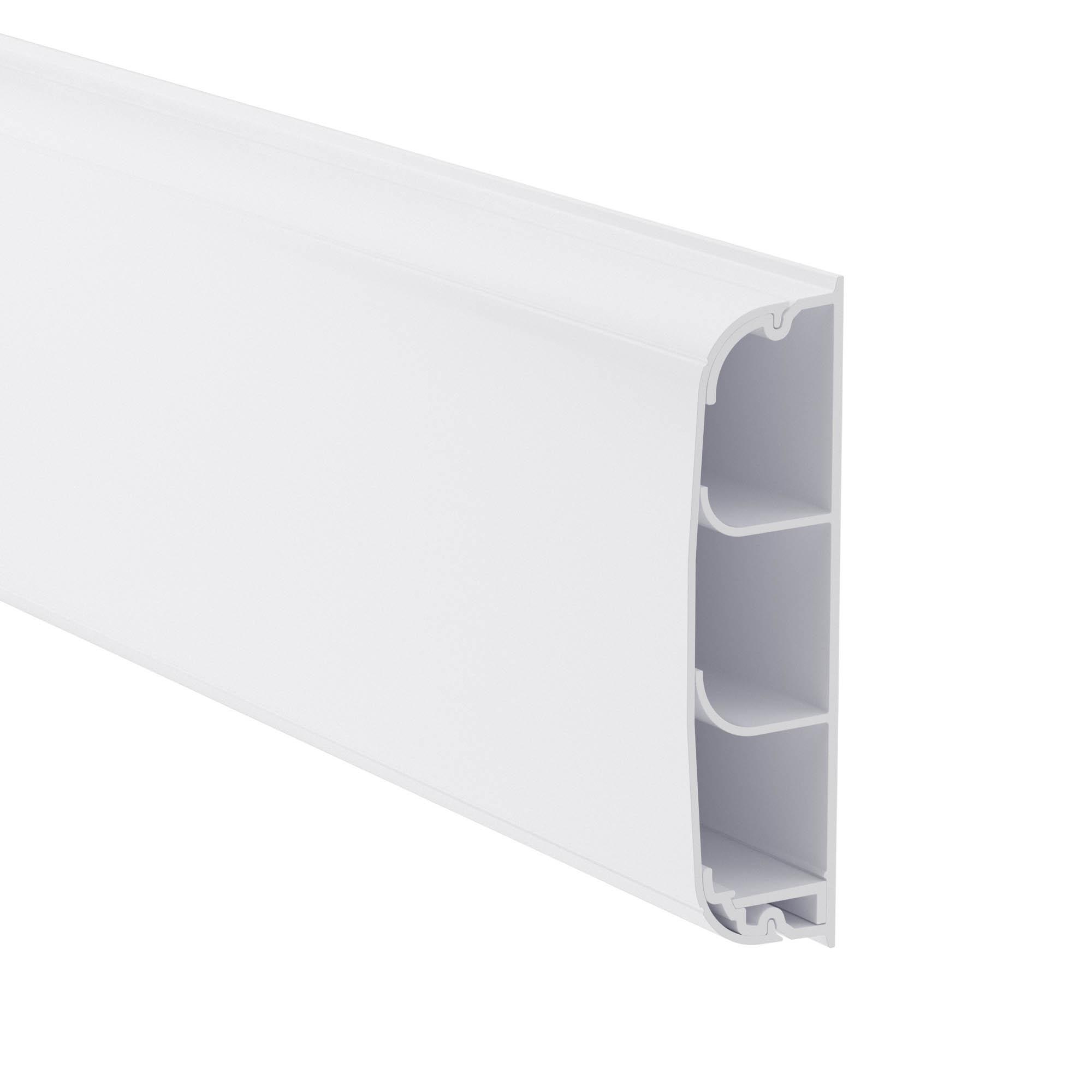

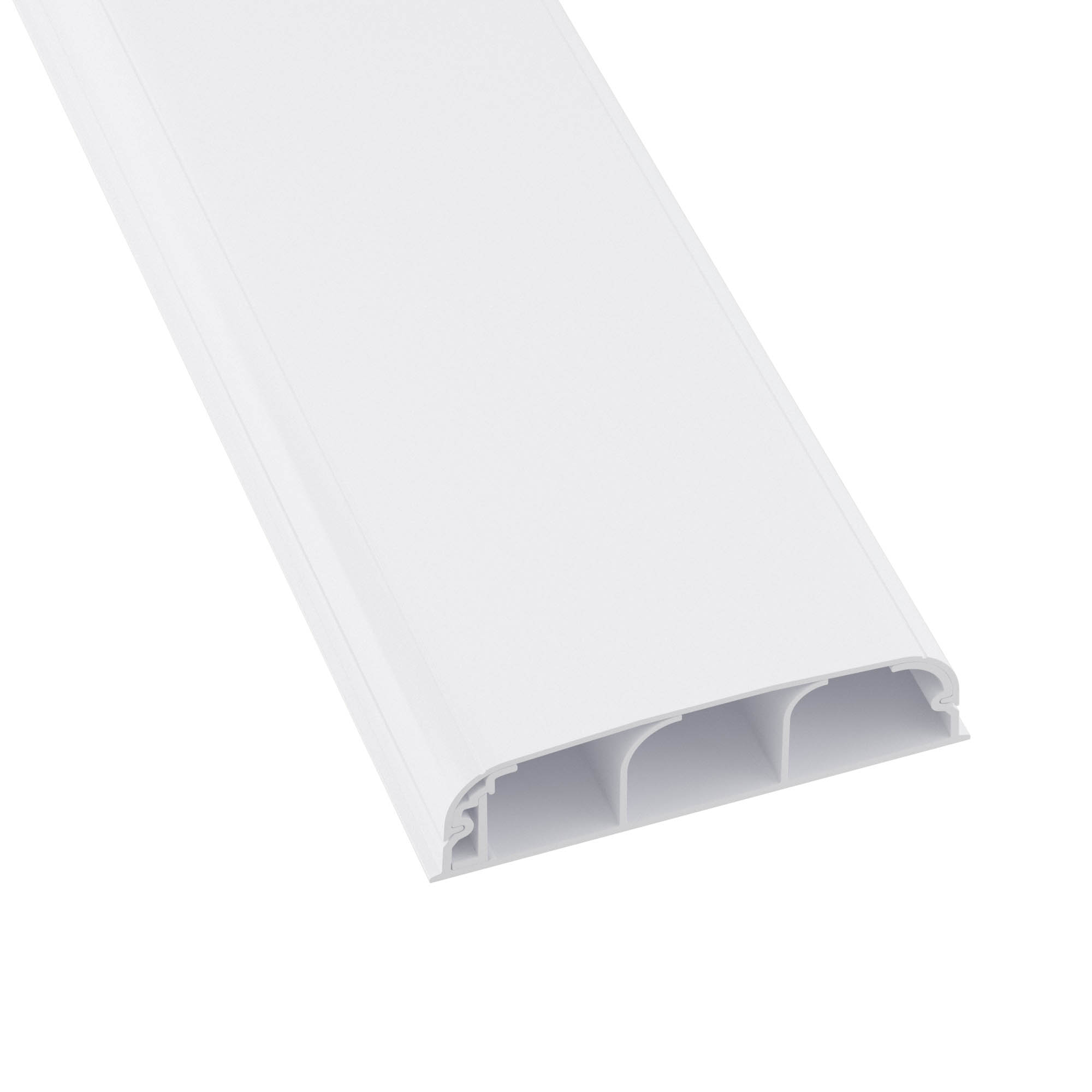

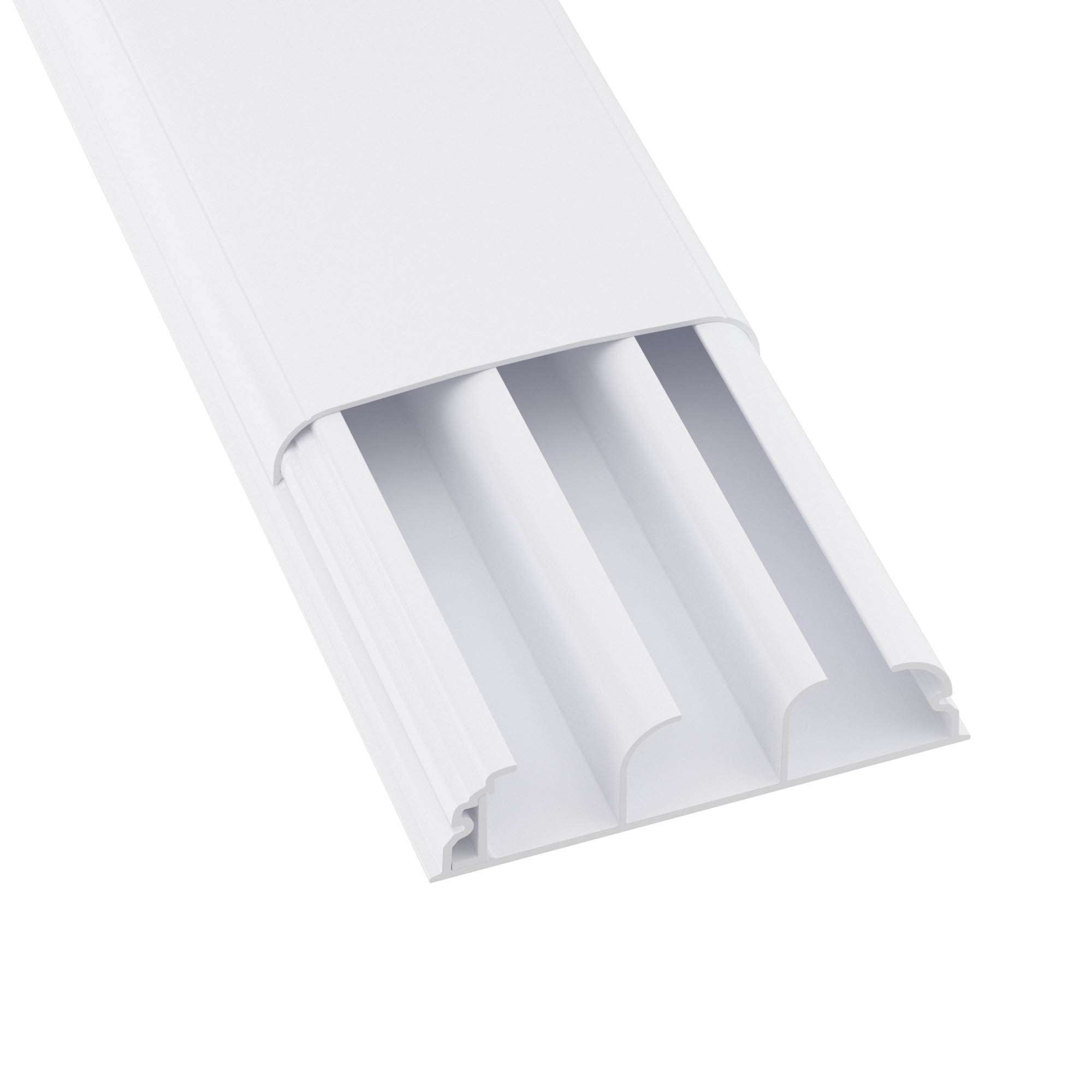

Cable trunking 90x25 mm with cover, white
Code: 09200
Cable trunking 90x25 mm with cover, white
Code: 09200

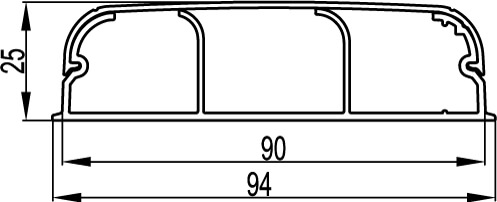

| Height, mm | 90 |
| Depth, mm | 25 |
| With carpet border | No |
| Length, mm | 2000 |
| Material | Plastic |
| Number of partitions | 3 |
| Mounting perforation in bottom | No |
| Useful cross section, mm² | 1654 |
| Sealing lip cover | Wall |
| With protection film | No |
| Colour cover | Pure white |
| Decoration | Other |
| Temperature of mounting, °C | 5°С ... +60°С |
| Width (nominal), mm | 90 |
| Ingress Protection rating, IP | IP40 |

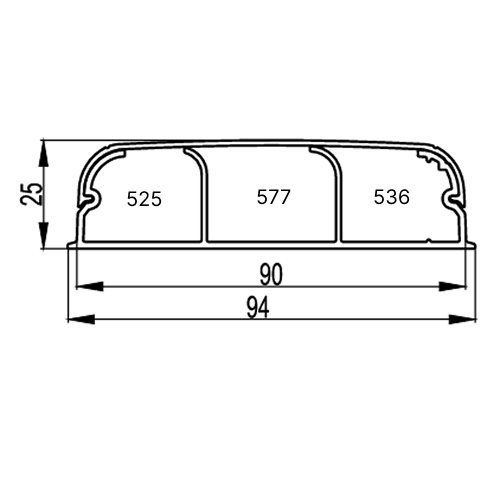

| Average filled area, sq.mm | 525+577+536 |
| Summarized profile area (max), sq.mm | 1654 |
| Temperature of operation, °C | 5°С ... +60°С |
| Temperature of operation, °C | +60°C |
| Shock resistance, J | 6 |
| Climate version | UHL4 |
| Voltage of disruption, V | More 2500 |
| Height (nominal), mm | 25 |
| Self-glueing base | false |
| Product type | Skirting cable ducts with cover |
