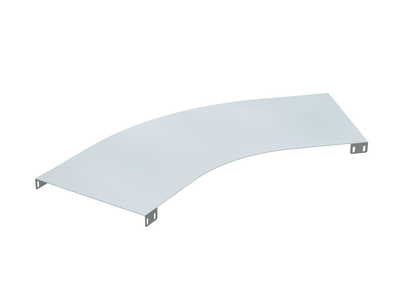

Cover for horizontal bend 45 degrees 1000, R660, hot-dip galvanized

Code: UKC600HDZ
Colour Light grey
Width, mm 1000
Surface protection Hot-dip galvanized
Material quality Other
Material Steel
Type of fastening Cover clamp
Suitable for cable ladder Yes
Suitable for cable duct No
Stainless steel, pickled No
Width, mm 1293
Length, mm 1417
Thickness, mm 1.5
Climate version U1, HL1, UHL1, UHL5, OM1
Radius of bending, mm 600

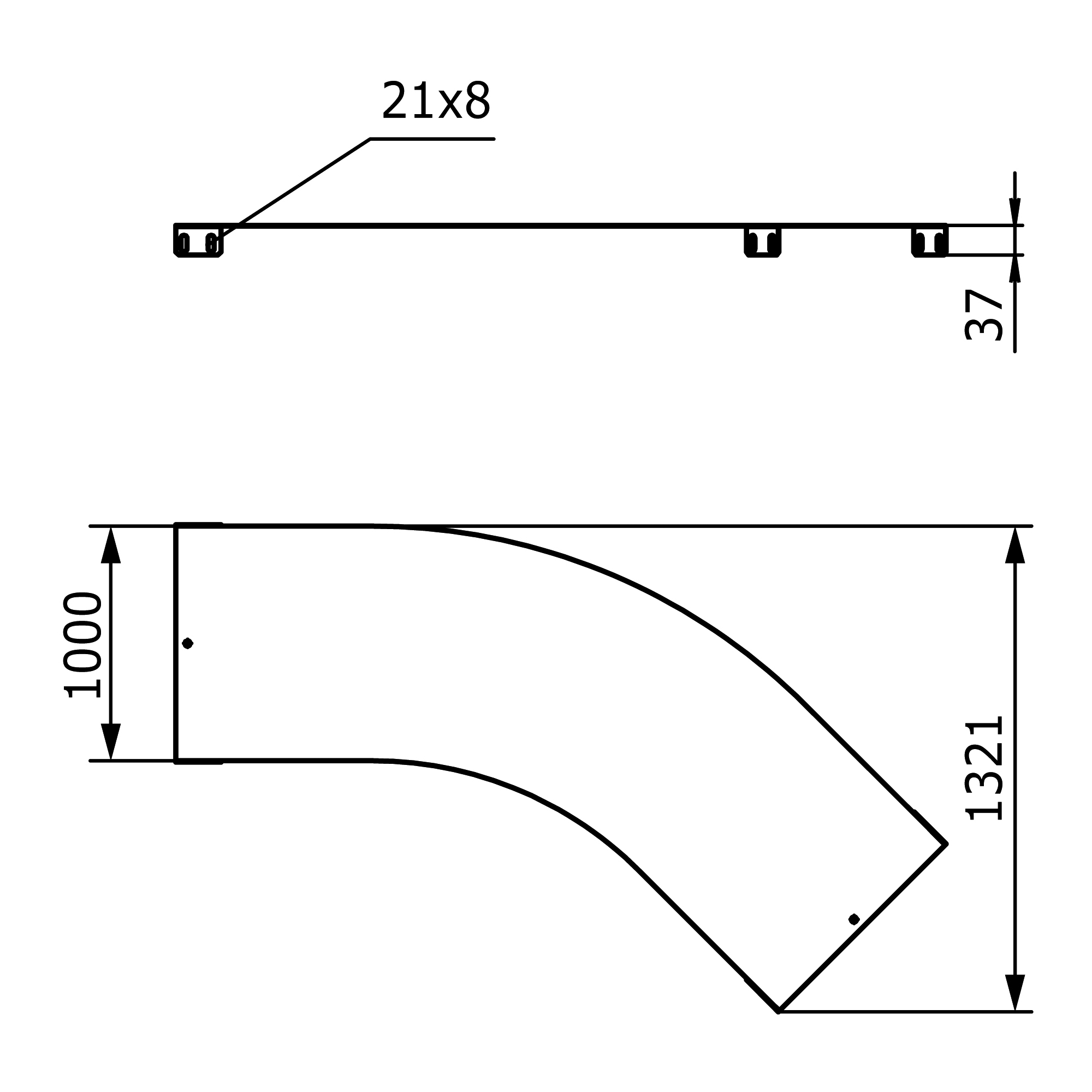

Drawings
Seria Name STEP Autodesk Revit Intergraph DWG (dynamic blocks)
U5 Combitech - heavy metal trays
U5 Combitech - heavy metal trays
U5 Combitech - heavy metal trays
U5 Combitech - heavy metal trays
