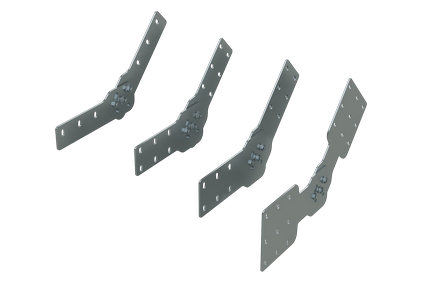

Mounting accessories

Code	Name
UGB400HDZ	Attachment to beam for a cable ladder
UDM302HDZ	Bottom insert 200, hot-dip galvanized
UDM303HDZ	Bottom insert 300, hot-dip galvanized
UDM304HDZ	Bottom insert 400, hot-dip galvanized
UDM305HDZ	Bottom insert 500, hot-dip galvanized
UDM306HDZ	Bottom insert 600, hot-dip galvanized
UDM307HDZ	Bottom insert 700, hot-dip galvanized
UDM308HDZ	Bottom insert 800, hot-dip galvanized
UDM309HDZ	Bottom insert 900, hot-dip galvanized
UGH410HDZ	Horizontal connector H 100 mm L 400 mm, hot-dip galvanized
