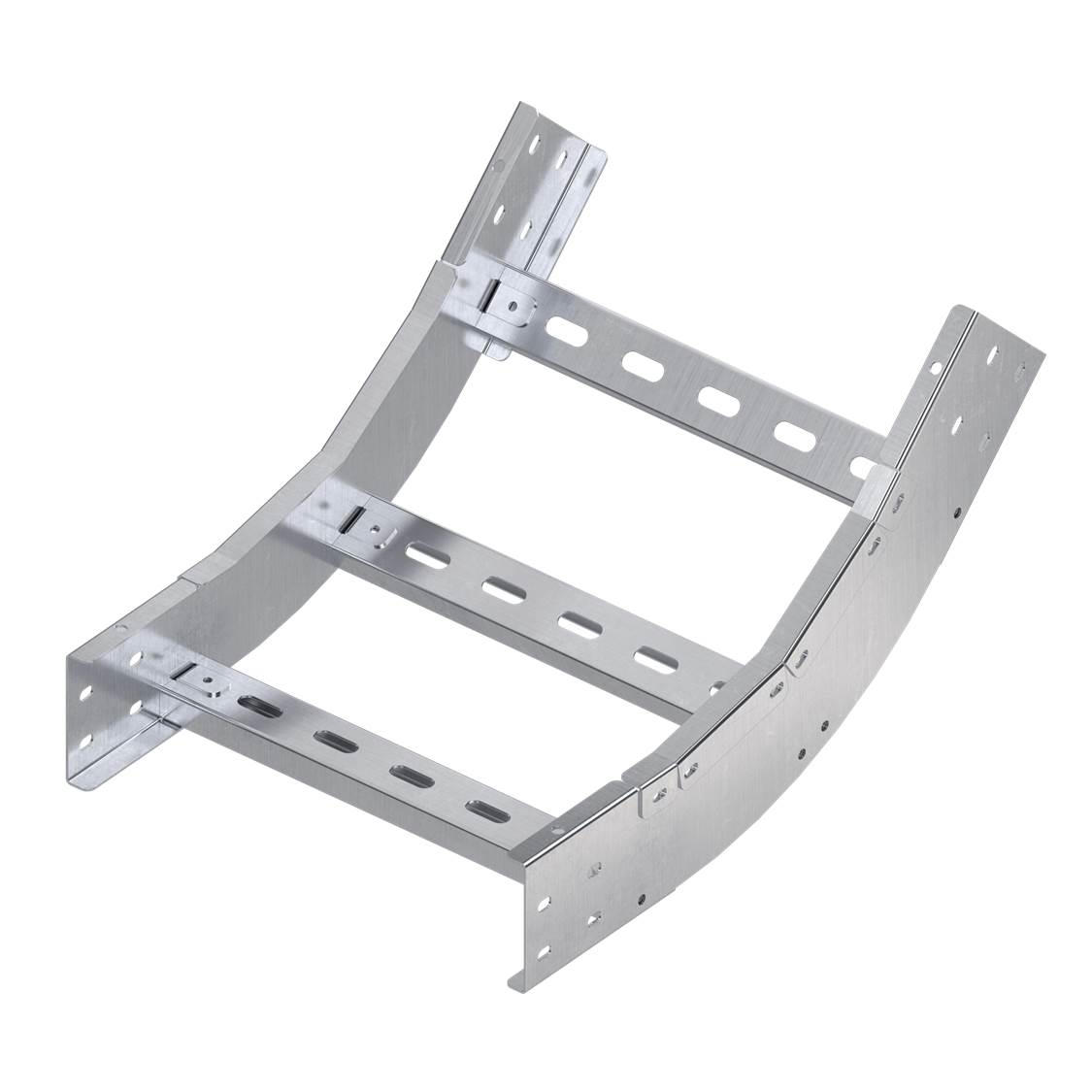

Vertical ladder elbow (inside) 45 R600 Height 100 mm Wide 600mm, hot galvanizing method

Code: ULIC616HDZ
Vertical ladder elbow (inside) 45 R600 Height 100 mm Wide 600mm, hot galvanizing method
Vertical ladder elbow (inside) 45 R600 Height 100 mm Wide 600mm, hot galvanizing method
Code: ULIC616HDZ
  • To ask a question
  • Characteristics

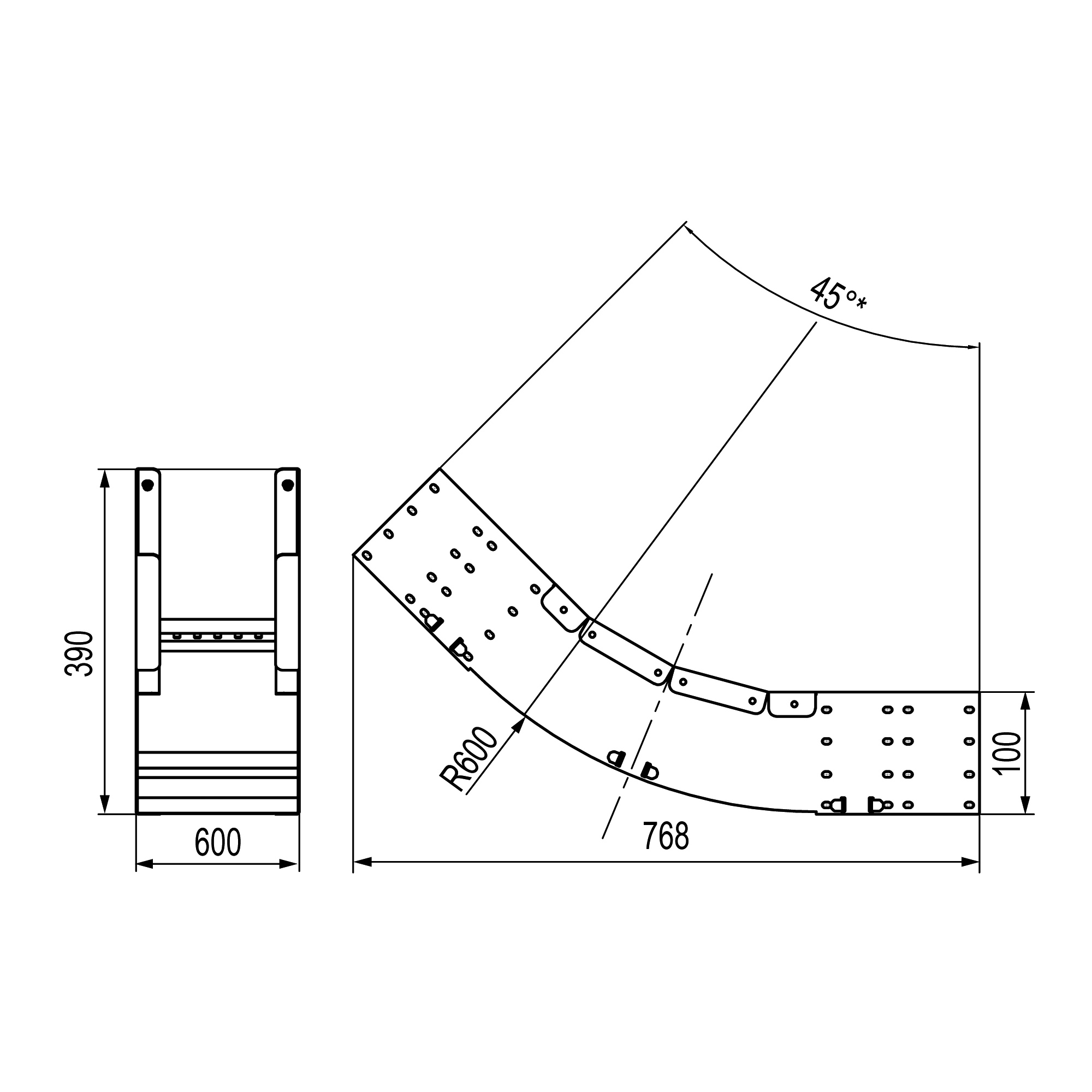

  • Drawings
  • Certificates
  • Promo
  • Viewed items
Surface protection Hot-dip galvanized
Deflection (angle) 45°
Material Steel
Inner radius, mm 600
Cable ladder width, mm 600
Cable ladder height, mm 100
Change of direction Vertically rising
Material quality Steel
Suitable for circuit integrity Yes
Product type Accessories for ladder trays
Type of accessories 45º vertical inner bend
Height 100 mm
Side rail thickness 1.5 mm
Material Hot-dip galvanized
Width 600 mm
19 мм 600 mm
