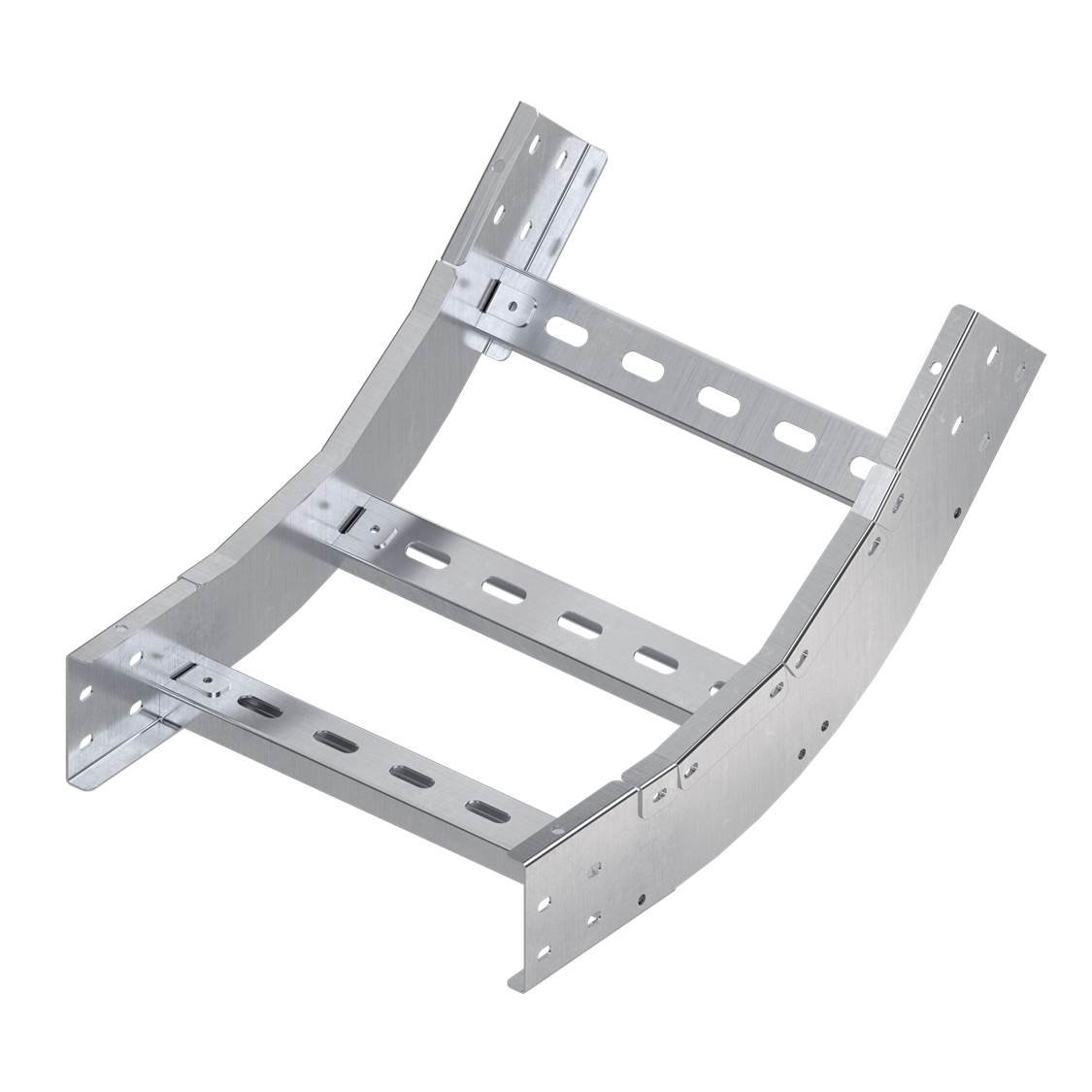

Vertical ladder elbow (inside) 45 R600 Height 80 mm Wide 300mm, hot galvanizing method

Code: ULIC683HDZ
Vertical ladder elbow (inside) 45 R600 Height 80 mm Wide 300mm, hot galvanizing method
Vertical ladder elbow (inside) 45 R600 Height 80 mm Wide 300mm, hot galvanizing method
Code: ULIC683HDZ
  • To ask a question
  • Characteristics

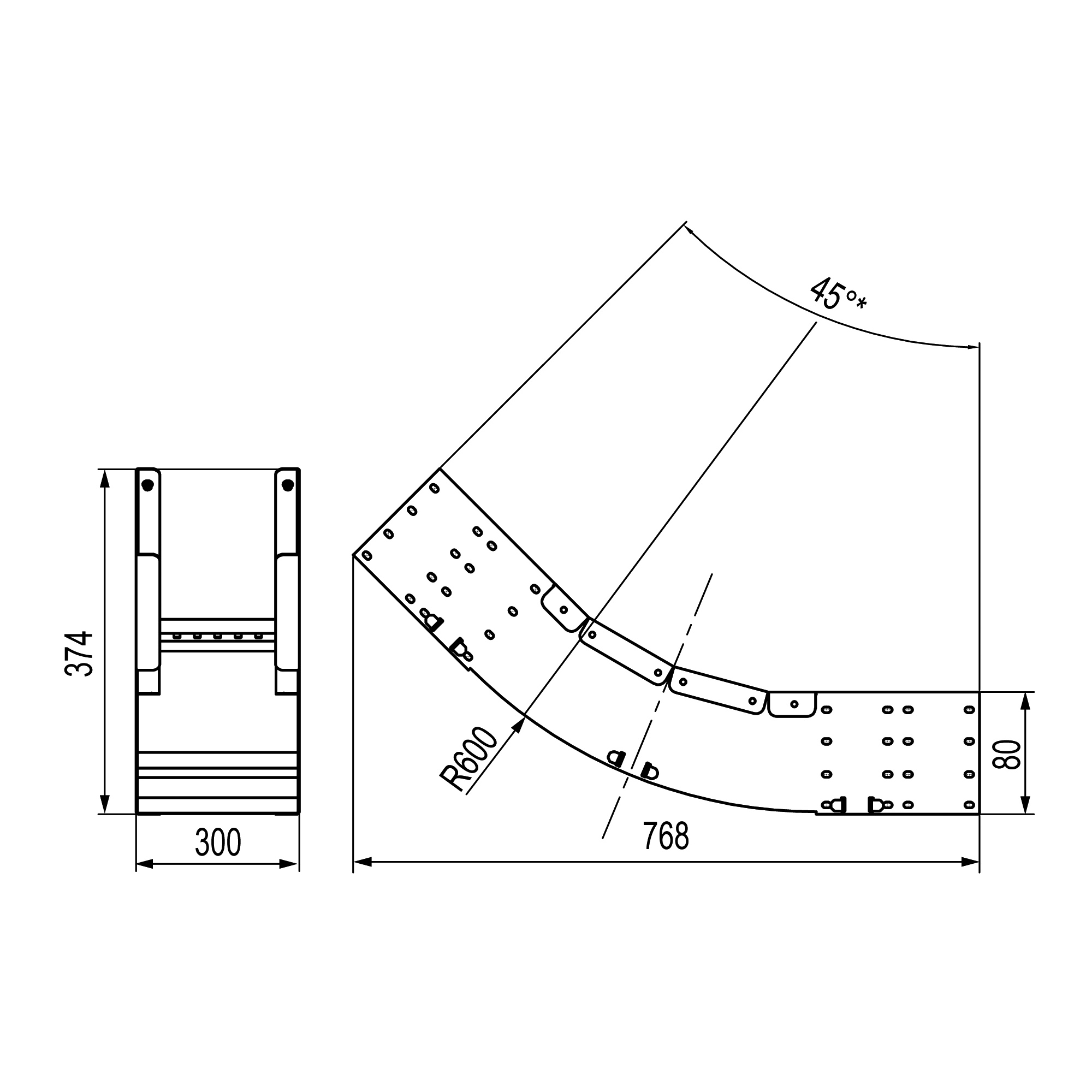

  • Drawings
  • Certificates
  • Promo
  • Viewed items
Surface protection Hot-dip galvanized
Deflection (angle) 45°
Material Steel
Inner radius, mm 600
Cable ladder width, mm 300
Cable ladder height, mm 80
Change of direction Vertically rising
Material quality Steel
Suitable for circuit integrity Yes
Product type Accessories for ladder trays
Type of accessories 45º vertical inner bend
Height 80 mm
Side rail thickness 1.5 mm
Material Hot-dip galvanized
Width 300 mm
19 мм 600 mm
