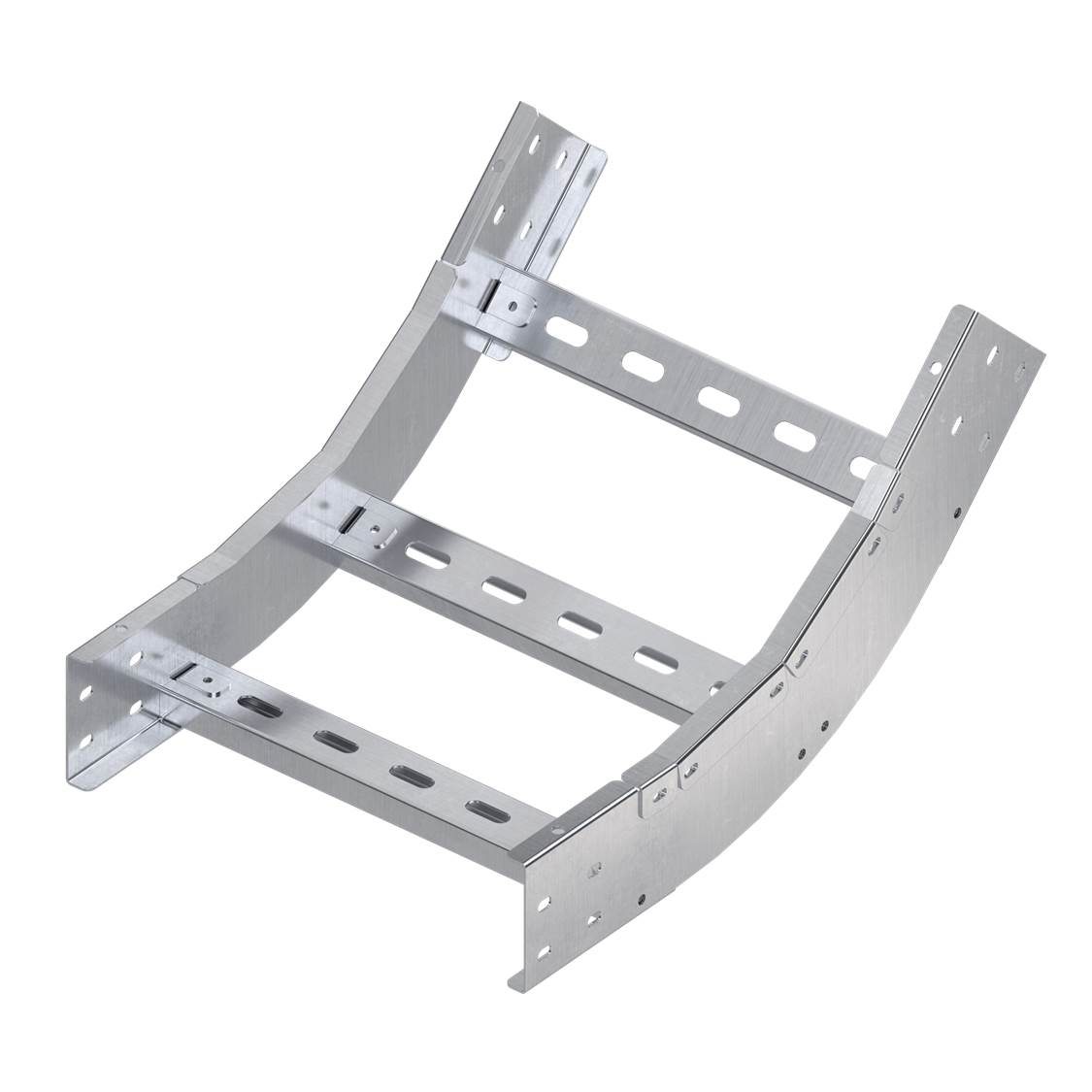

Vertical ladder elbow (inside) 45 R600 Height 150 mm Wide 400mm, hot galvanizing method
Code: ULIC654HDZ
Vertical ladder elbow (inside) 45 R600 Height 150 mm Wide 400mm, hot galvanizing method
Code: ULIC654HDZ
| Surface protection | Hot-dip galvanized |
| Deflection (angle) | 45° |
| Material | Steel |
| Inner radius, mm | 600 |
| Cable ladder width, mm | 400 |
| Cable ladder height, mm | 150 |
| Change of direction | Vertically rising |
| Material quality | Steel |
| Stainless steel, pickled | No |
| Suitable for circuit integrity | No |
| Product type | Accessories for ladder trays |
| Type of accessories | 45º vertical inner bend |
| Height | 150 mm |
| Side rail thickness | 1.5 mm |
| Material | Hot-dip galvanized |
| Width | 400 mm |
| 19 мм | 600 mm |

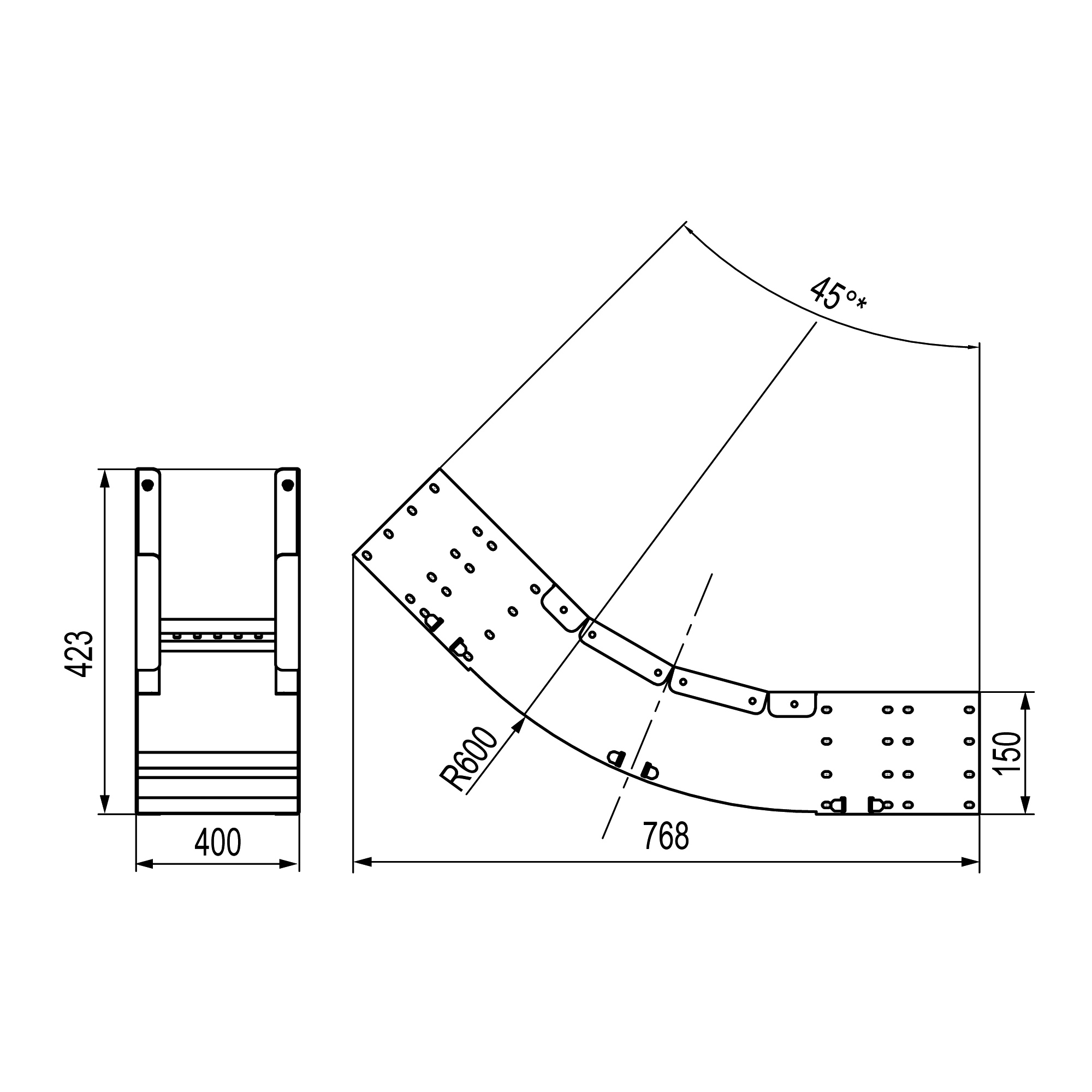

Drawings
