Horizontal ladder bend 45 degrees 100x800, R660, hot-dip galvanized
Code: ULC618HDZ
Horizontal ladder bend 45 degrees 100x800, R660, hot-dip galvanized
Code: ULC618HDZ
| Surface protection | Hot-dip galvanized |
| Deflection (angle) | 45° |
| Type of rung | Perforated profile |
| Side wall perforation | Yes |
| Material quality | Steel |
| Material | Steel |
| Inner radius, mm | 600 |
| Cable ladder width, mm | 800 |
| Cable ladder height, mm | 100 |
| Change of direction | Horizontal |
| Stainless steel, pickled | No |
| Wide span model | Yes |
| Type of side joist | Profile (open) |
| Suitable for circuit integrity | No |
| Product type | Accessories for ladder trays |
| Type of accessories | 45º Horizontal bend |
| Height | 100 mm |
| Side rail thickness | 1.5 mm |
| Material | Hot-dip galvanized |
| Width | 800 mm |
| 19 мм | 483.8 mm |

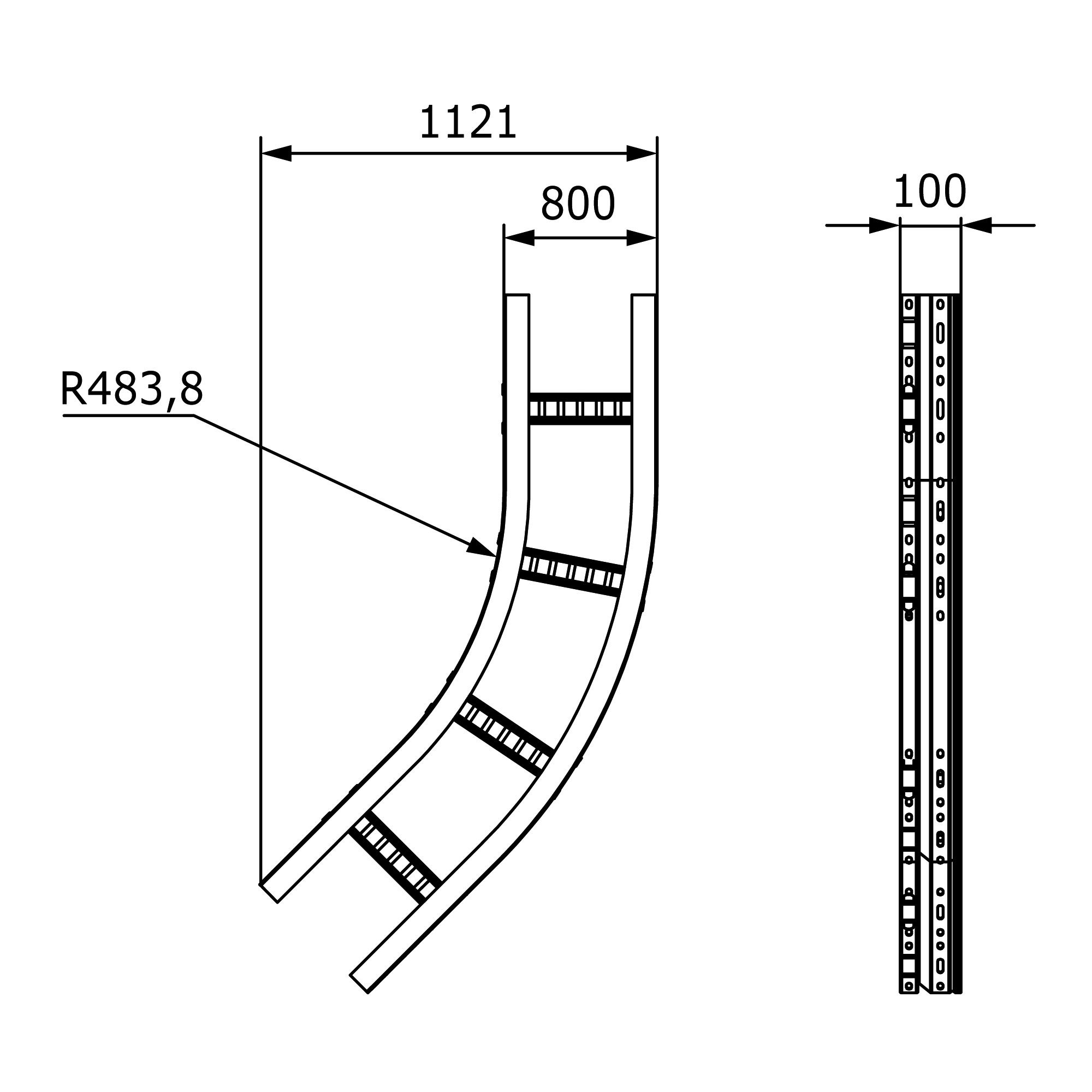

Drawings
| Seria | Name | DWG (dynamic.) | Intergraph | Autodesk Revit | STEP |
|---|---|---|---|---|---|
|
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
|
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
|
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
|
Heavy metal trays - " U5 Combitech"
|
|
|
|
Certificates
| Name | Document |
|---|---|
