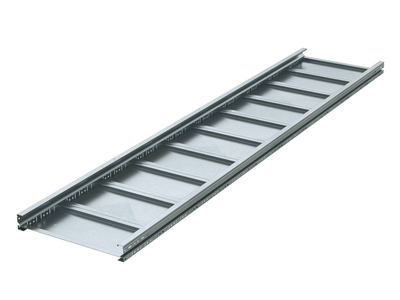

Sheet tray non-perforated 100х700, side rail thickness 2 mm, L 3 m, hot-dip galvanized
Code: UNH317HDZ
Sheet tray non-perforated 100х700, side rail thickness 2 mm, L 3 m, hot-dip galvanized
Code: UNH317HDZ
| Colour | Light grey |
| Width, mm | 700 |
| Model | Without connector |
| Height, mm | 100 |
| Surface protection | Hot-dip galvanized |
| Material thickness, mm | 2 |
| Side wall perforation | Yes |
| Material quality | Steel |
| Length, mm | 3000 |
| Material | Steel |
| Mounting perforation in bottom | No |
| Useful cross section, mm² | 56000 |
| NATO-mounting holes | Yes |
| Wide span model | Yes |
| Suitable for circuit integrity | Yes |
| Product type | Non perforated straight elements |
| Type | Heavy metal trays - " U5 Combitech" |
| Height | 100 mm |
| Side rail thickness | 2.0 mm |
| Length | 3000 mm |
| Material | Hot-dip galvanized |
| Width | 700 mm |
Accessories
Analogs

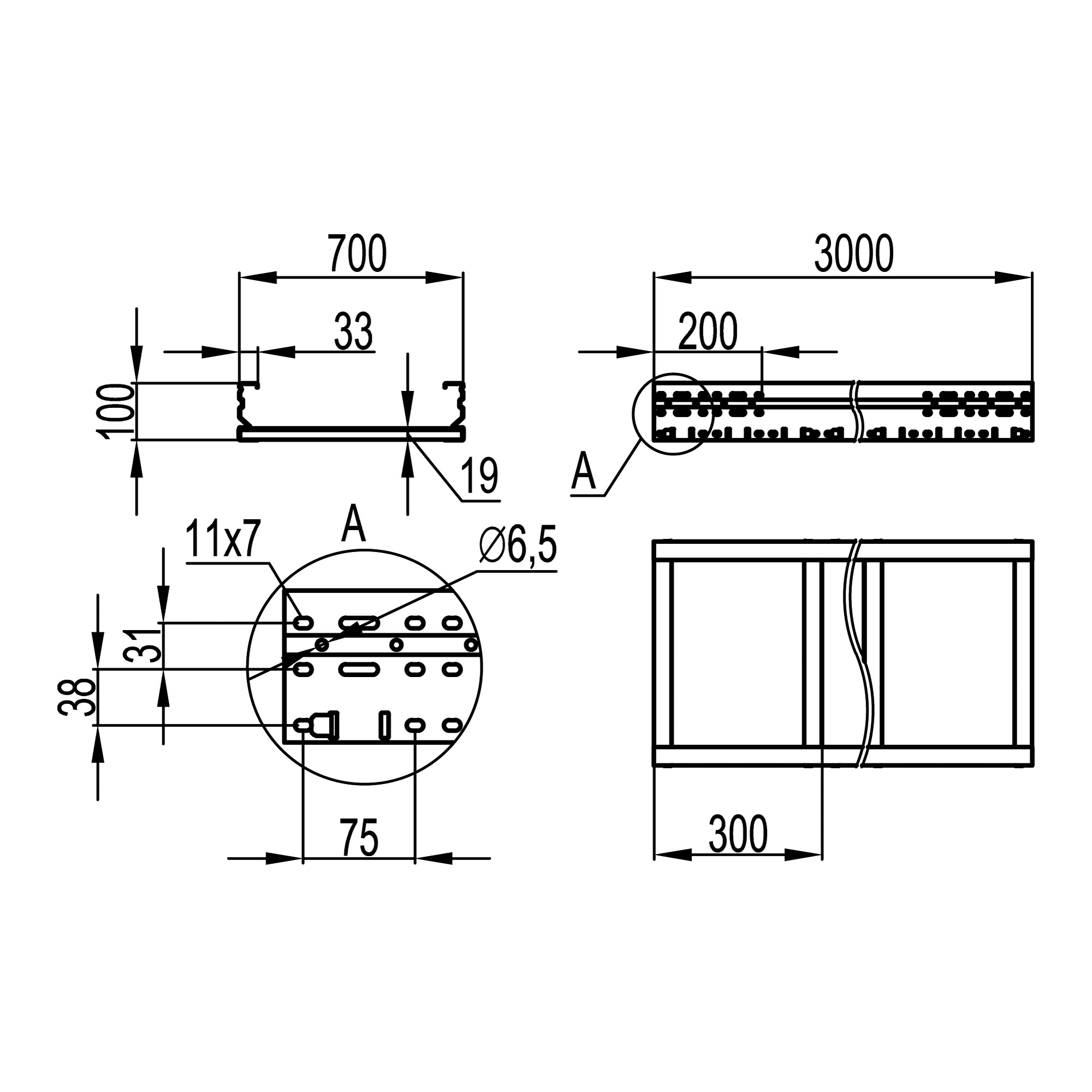

Drawings
| Seria | Name | DWG (dynamic.) | Intergraph | Autodesk Revit | STEP |
|---|---|---|---|---|---|
|
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
|
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
|
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
|
Heavy metal trays - " U5 Combitech"
|
|
|
|
Certificates
| Name | Document |
|---|---|
