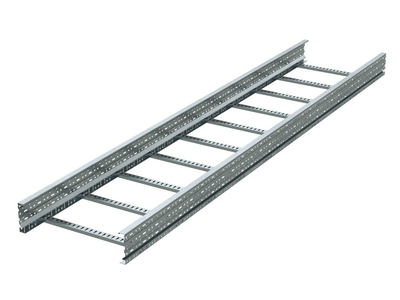

Cable ladder 150х800, side rail thickness 2 mm, L 6 m , hot-dip galvanized
Code:
ULH658HDZ
Cable ladder 150х800, side rail thickness 2 mm, L 6 m , hot-dip galvanized
Code:
ULH658HDZ
Colour | Light grey |
Width, mm | 800 |
Height, mm | 150 |
Surface protection | Hot-dip galvanized |
Type of rung | Perforated profile |
Side wall perforation | Yes |
Material quality | Steel |
Length, mm | 6000 |
Material | Steel |
Useful cross section, mm² | 104000 |
Stainless steel, pickled | Yes |
Wide span model | Yes |
Type of side joist | Profile (open) |
Rung centre spacing, mm | 200 |
Fixation rung | Fully revited |
Product type | Metal ladder trays |
Type | Heavy metal trays - " U5 Combitech" |
Height | 150 mm |
Side rail thickness | 2.0 mm |
Length | 6000 mm |
Material | Hot-dip galvanized |
Width | 800 mm |
Accessories

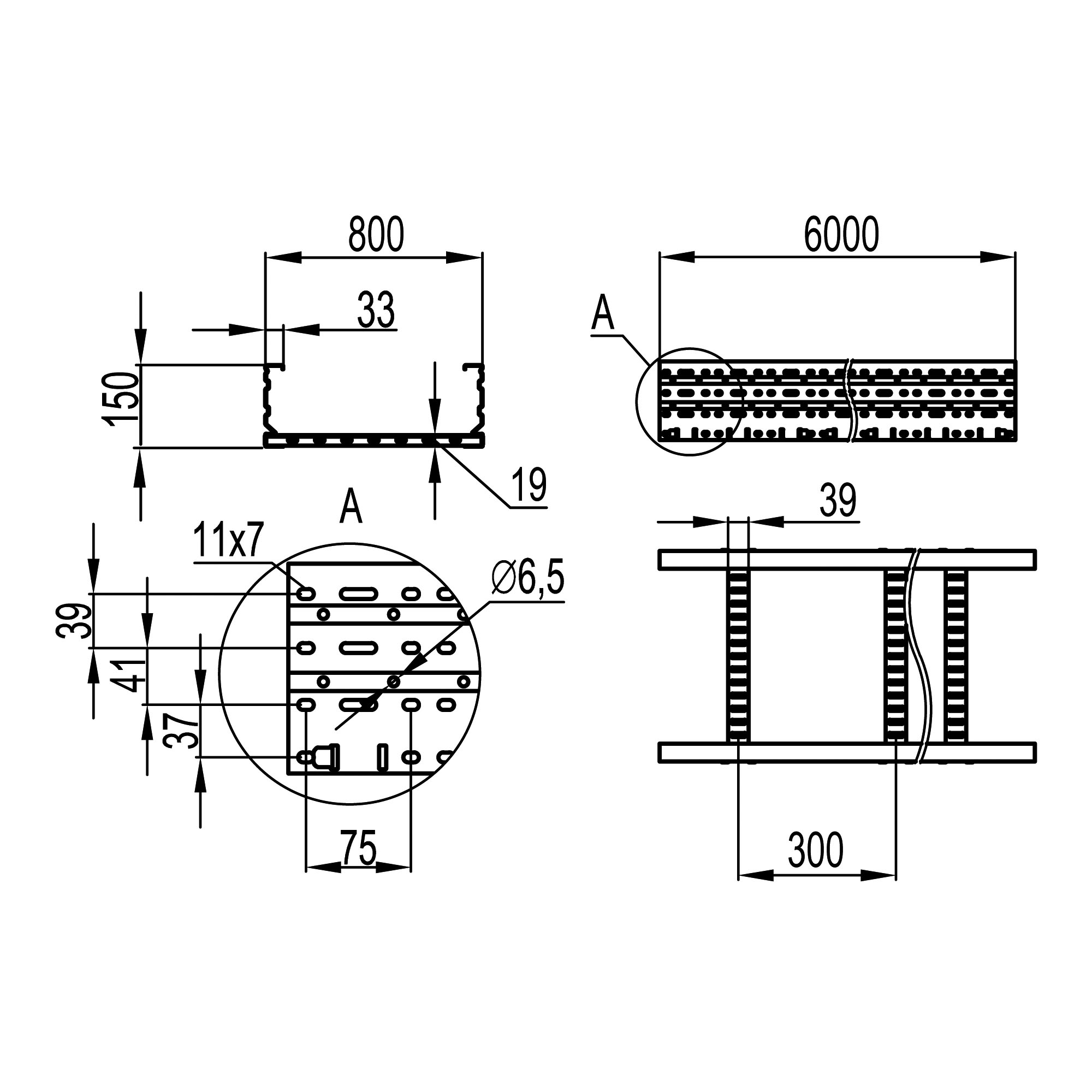

Drawings
Seria | Name | DWG (dynamic.) | Intergraph | Autodesk Revit | STEP |
---|---|---|---|---|---|
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
Heavy metal trays - " U5 Combitech"
|
|
|
|
||
Heavy metal trays - " U5 Combitech"
|
|
|
|
Certificates
Name | Document |
---|---|
