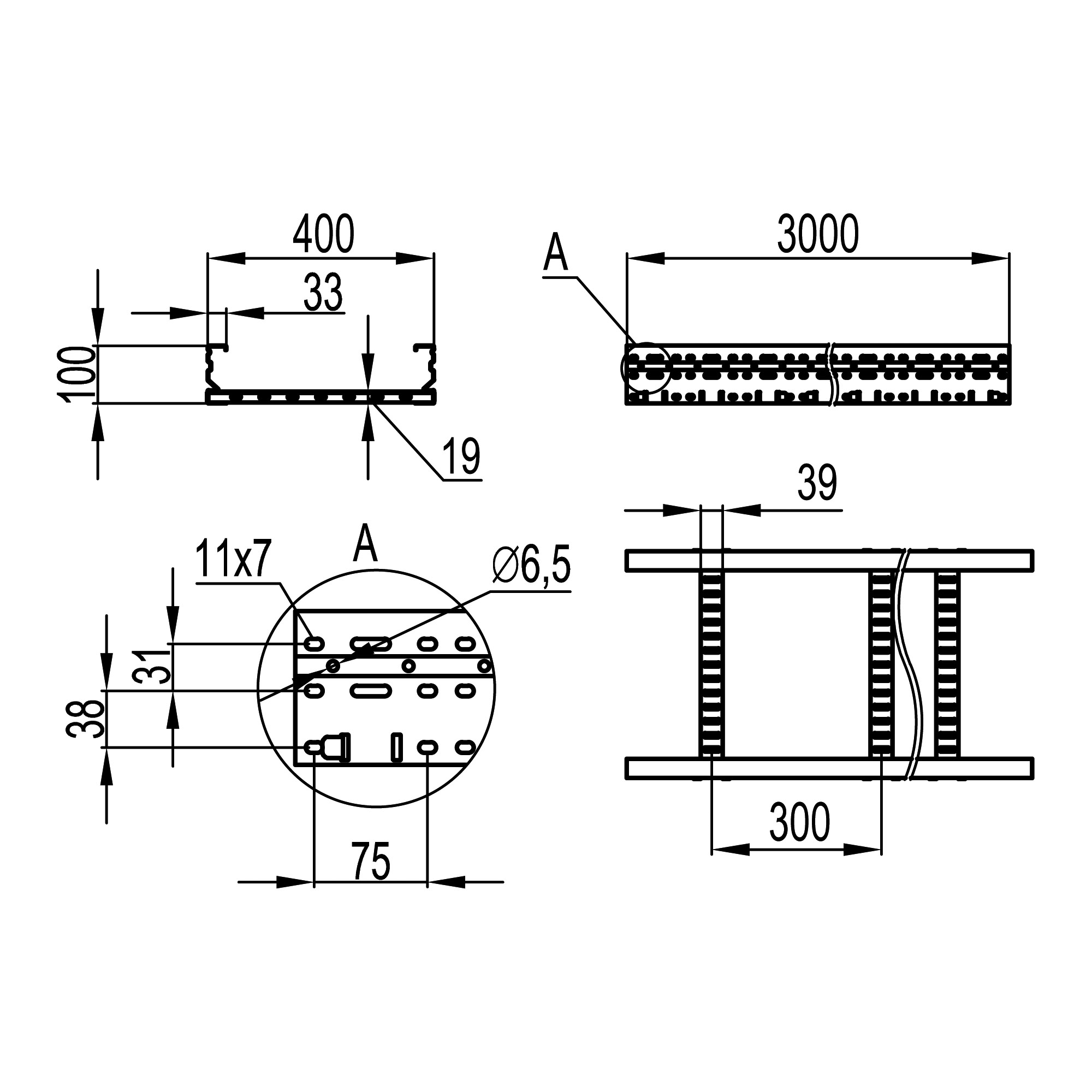

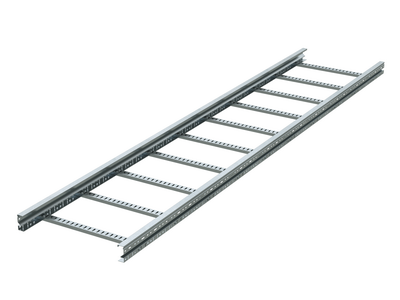

Cable ladder 100х400, side rail thickness 1,5 mm, L 3 m , hot-dip galvanized
Code:
ULM314HDZ
Code:
ULM314HDZ
| Colour | Light grey |
| Width, mm | 400 |
| Height, mm | 100 |
| Surface protection | Hot-dip galvanized |
| Type of rung | Perforated profile |
| Side wall perforation | Yes |
| Material quality | Steel |
| Length, mm | 3000 |
| Material | Steel |
| Useful cross section, mm² | 32000 |
| Wide span model | Yes |
| Type of side joist | Profile (open) |
| Rung centre spacing, mm | 300 |
| Fixation rung | Fully revited |
| Material thickness, mm | 1.5 |
| Product type | Metal ladder trays |
| Type | Heavy metal trays - " U5 Combitech" |
| Height | 100 mm |
| Side rail thickness | 1.5 mm |
| Length | 3000 mm |
| Material | Hot-dip galvanized |
| Width | 400 mm |
