| Model | Impact |
| Surface protection | Galvanic/electrolytic zinc plated |
| Min. drill hole depth, mm | 50 |
| Material sleeve | Steel |
| Length, mm | 60 |
| Thread size (metric) | 8 |
| Drill hole diameter, mm | 14 |
| Self boring | Yes |
| App. load pull zone, kN | 13.4 |
| Fastening provision | L-hook screw |
| Material | Steel |
| Threading | М8 |
| Length | 60 mm |

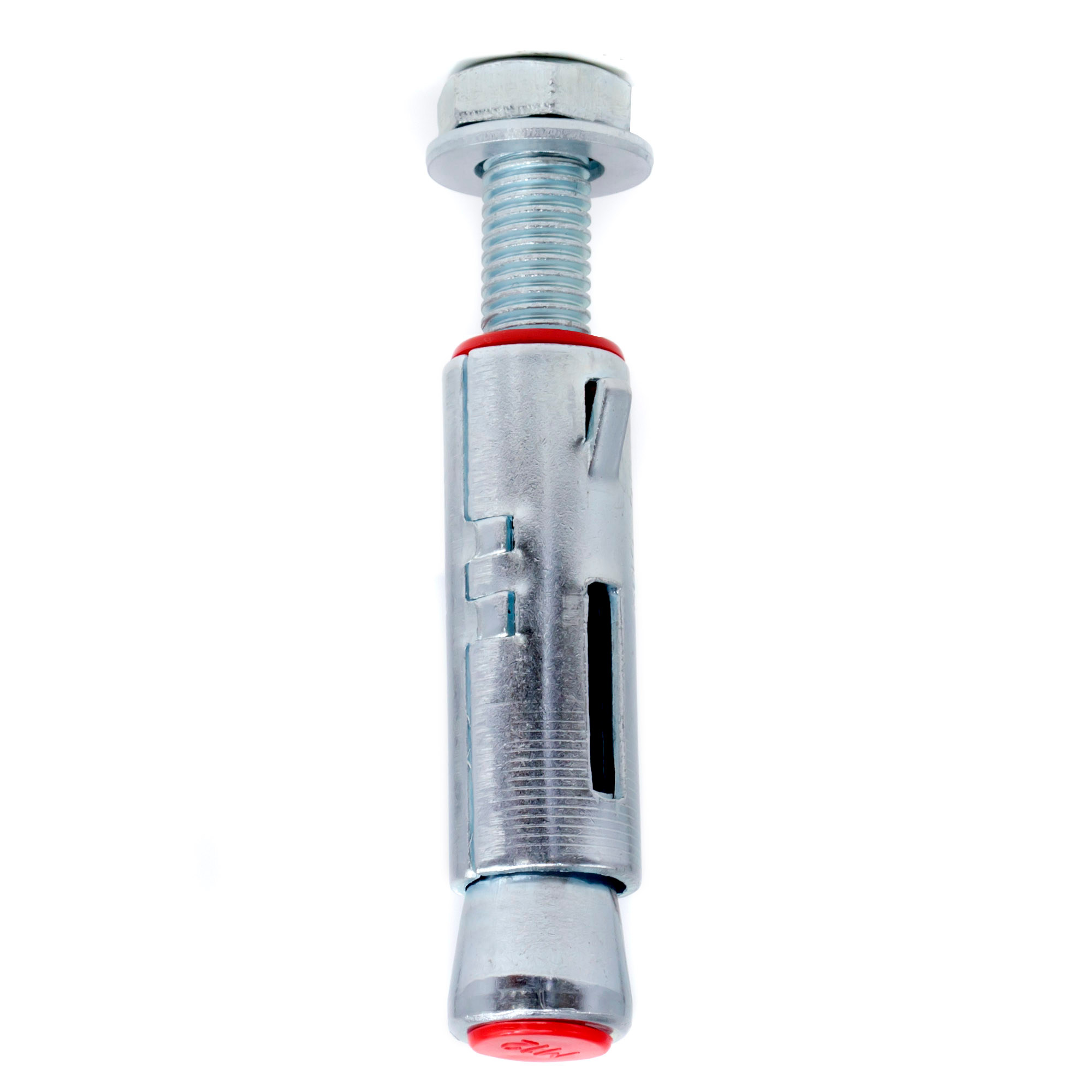

| Type | Anchor with bolt |
