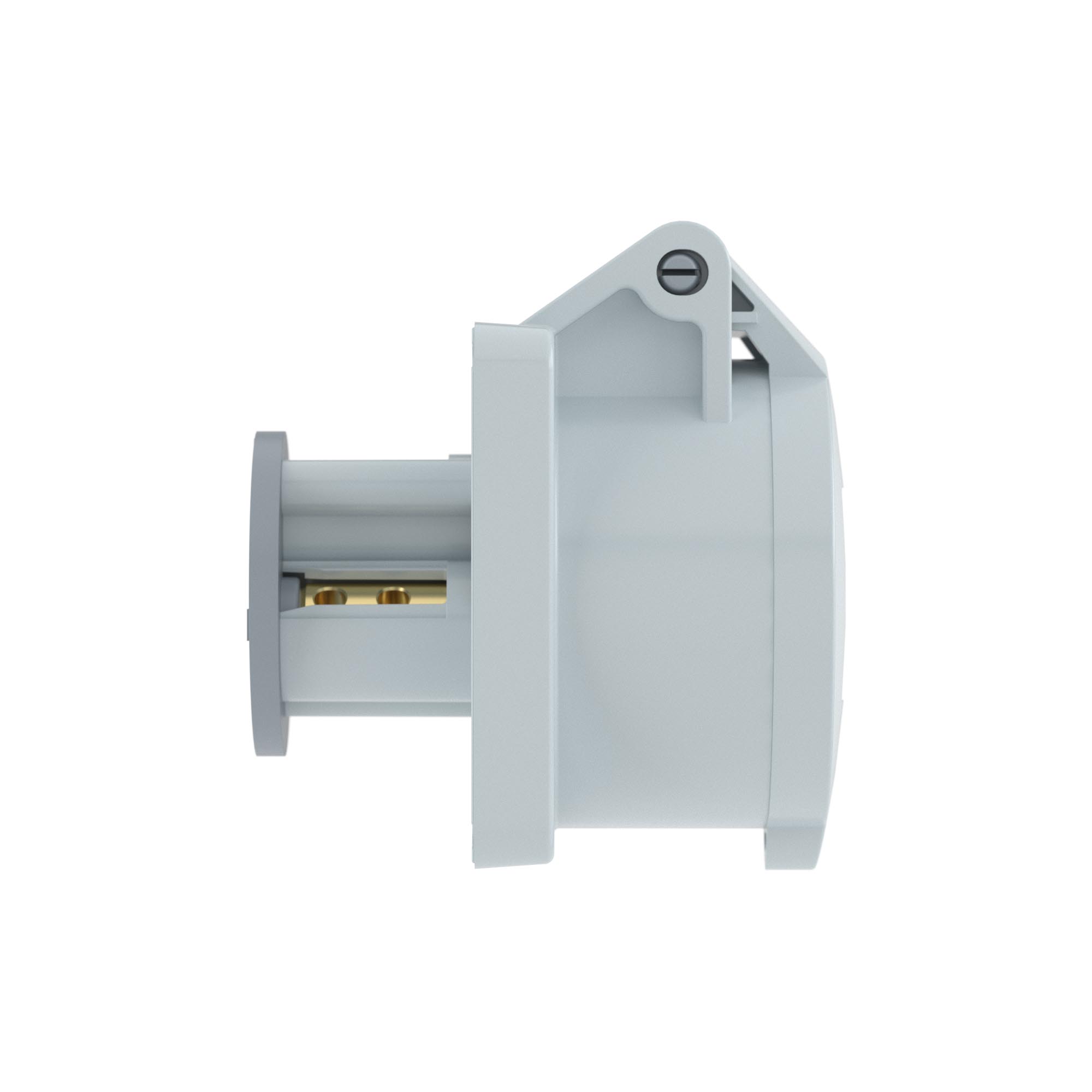

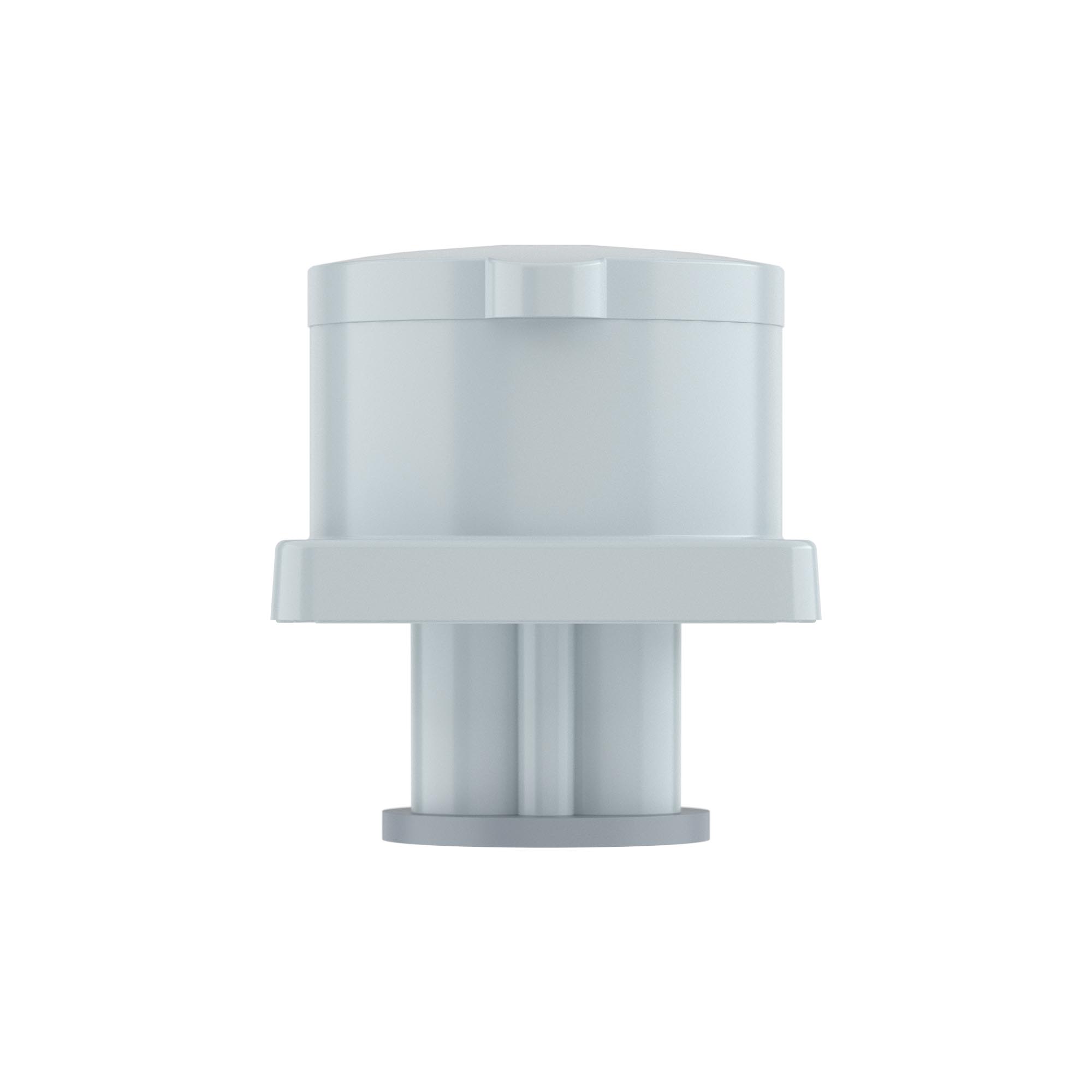

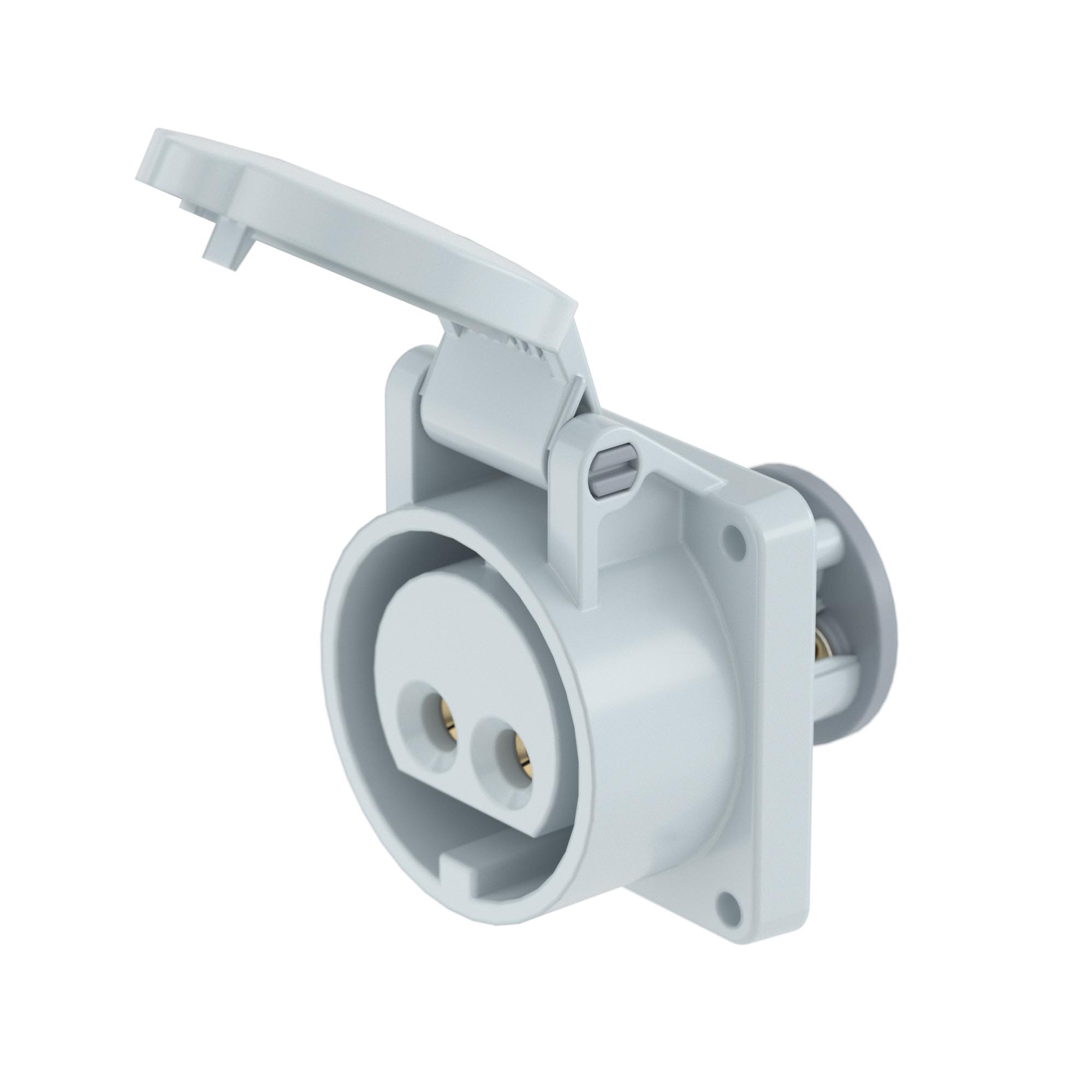

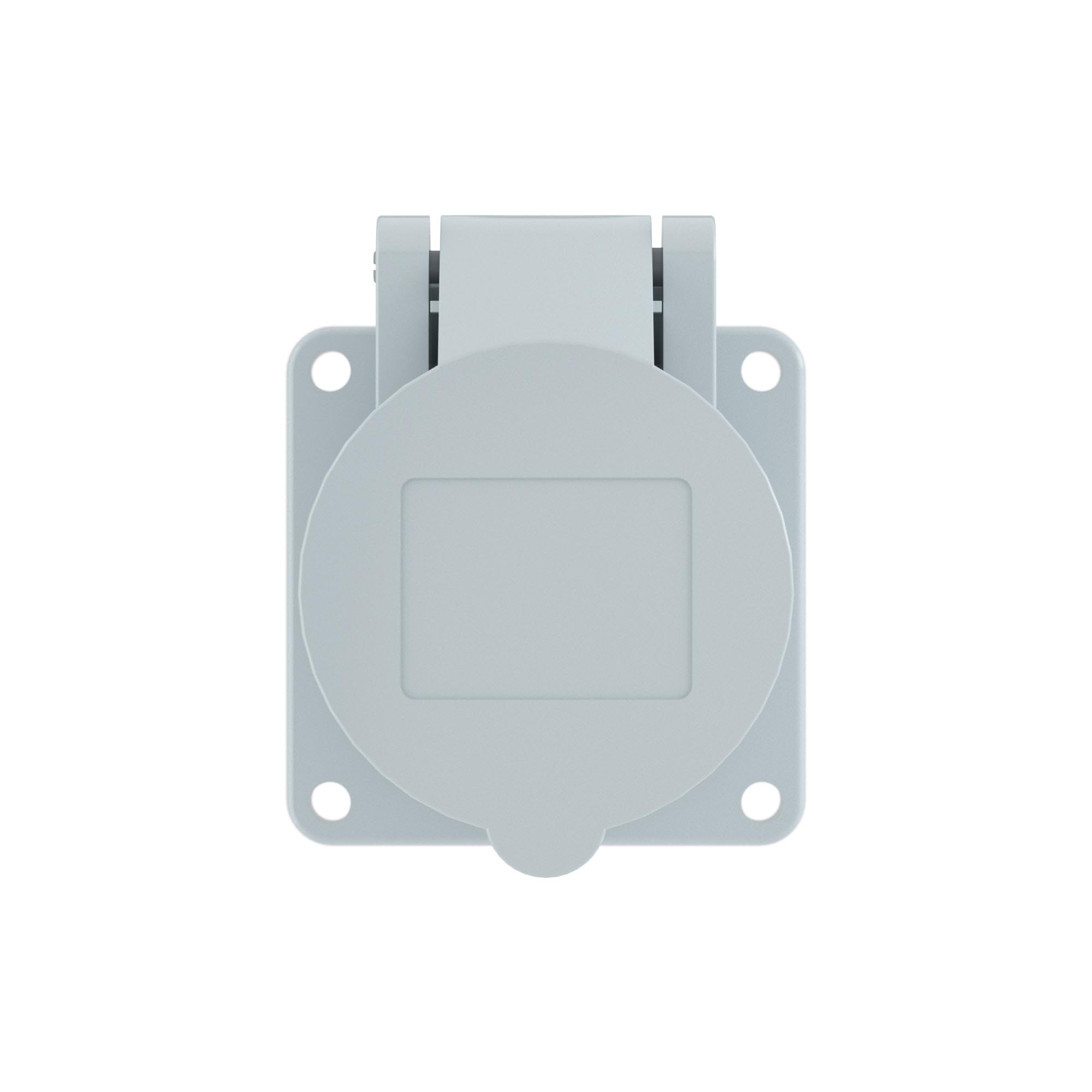

Appiance socket 16A, 40-50V/50-60Hz, IP44, 2 poles
Code: DIS4301616
Appiance socket 16A, 40-50V/50-60Hz, IP44, 2 poles
Code: DIS4301616
Model | Surface mounted (plaster) |
Number of poles | 2 |
Material | Plastic |
Type of fastening | External mounting |
IEC-amperage, A | 16 |
Degree of protection (IP) | IP44 |
Military model | No |
Clock hour position, h | 12 |
Identification colour | White |
Voltage according to EN 60309-2 | 40-50 V (50+60 Hz) white |
Connection system | Screwed terminal |
Contact less detection of the sense of rotation | No |
Angle of plug | Right-angled |
For heavy conditions (according to VDE) | No |
Phase inverter | No |
Empty locations on mounting rail | No |
Number of height units | 1 |
With earth leakage switch | No |
Total number of groups | 1 |
Flange size vertical | 87 |
Flange size horizontal | 70 |
Width of device | 70 |
Height of device | 87 |
Depth of device | 74 |
Product type | Flush-mounting socket |
Voltage | 40-50 V |
Drawings
Seria | Name | DWG | Eplan |
---|---|---|---|
