No name

Code: DIS4301616
  • To ask a question
Model Surface mounted (plaster)
Number of poles 2
Material Plastic
Type of fastening External mounting
IEC-amperage, A 16
Degree of protection (IP) IP44
Military model No
Clock hour position, h 12
Identification colour White
Voltage acc. EN 60309-2 40-50 V (50+60 Hz) white
Connection system Screwed terminal
Contact less detection of the sense of rotation No
Angle of plug Right-angled
For heavy conditions (in accordance with VDE) No
Phase inverter No
Empty locations on mounting rail No
Number of height units 1
With earth leakage switch No
Total number of groups 1
Flange size vertical 87
Flange size horizontal 70
Width of device 70
Height of device 87
Depth of device 74
Product type Flush-mounting socket
Voltage 40-50 V

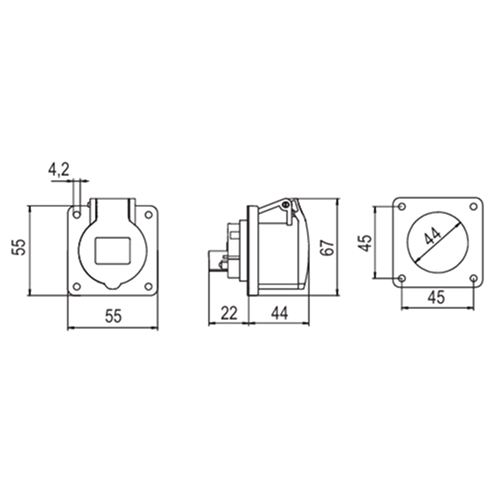

Drawings
